SPECpower_ssj2008 JVM Instance 'WIN-BMNFUHJ5AK0.054' Performance Report

SPECpower_ssj2008

JVM Instance 'WIN-BMNFUHJ5AK0.054' Performance Report

Hewlett Packard Enterprise ProLiant DL345 Gen10 Plus			ssj_ops@100% = 89,632
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Single Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Feb 23, 2021
Hardware Availability:	Mar-2021	Software Availability:	Jan-2021	Publication:	Mar 15, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

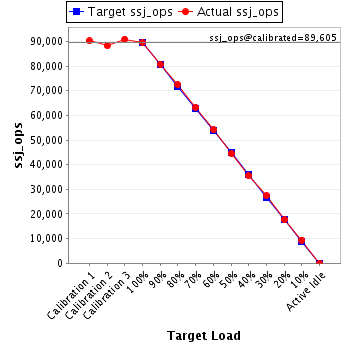

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,209
Calibration 2			88,278
Calibration 3			90,933
ssj_ops@calibrated=89,605
100%	100.0%	89,605	89,632
90%	90.2%	80,645	80,803
80%	80.8%	71,684	72,395
70%	70.7%	62,724	63,323
60%	60.4%	53,763	54,141
50%	49.8%	44,803	44,593
40%	39.7%	35,842	35,552
30%	30.6%	26,882	27,411
20%	19.7%	17,921	17,670
10%	10.5%	8,961	9,416
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	ProLiant DL345 Gen10 Plus
Form Factor:	2U
CPU Name:	AMD EPYC 7763 2.45 GHz
CPU Characteristics:	64-Core, 2.45 GHz, 256MB L3 Cache
CPU Frequency (MHz):	2450
CPU(s) Enabled:	64 cores, 1 chip, 64 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	256 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	8 x 16384 MB
Memory Details:	16 GB 2Rx8 PC4-3200AA-R; slots 1, 3, 5, 7, 10, 12, 14 and 16 populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (865438-B21)
Disk Drive:	1 x HPE 480GB SATA 6G SSD (P05976-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet I350 4-Port 1Gb NIC
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809 (OS Build 17763.1697)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.8+10-LTS, mixed mode), version 11.0.8
JVM Command-line Options:	-server -Xmn1450m -Xms1700m -Xmx1700m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	start NODE [0-7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances:	64
JVM Initial Heap (MB):	1700
JVM Maximum Heap (MB):	1700
JVM Address Bits:	64
Boot Firmware Version:	A43 v2.40 (02/15/2021)
Management Firmware Version:	2.40 Feb 07 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	KB4598230

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

BIOS Serial Console Port: Disabled
USB Support: All USB Ports Disabled
Determinism Control: Manual
Performance Determinism : Power Determinism
Memory Interleaving Mode: Disabled
Maximum Memory Bus Frequency: 2400 MHz
DRAM Controller Power Down: Enabled
NUMA memory domains per socket: Four memory domains per socket
Last-Level Cache (LLC) As NUMA Node: Enabled
Data Fabric C-State Enable: Force Enabled
C-State Efficiency Mode: Enabled
AMD Core Performance Boost: Disabled
AMD Fmax Boost Limit Control: Manual
AMD Fmax Boost Limit: 2450
L1 Stream HW Prefetcher: Disabled
L2 Stream HW Prefetcher: Disabled
Maximum PCI Express Speed: PCIe Generation 1.0

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 256 due to a known inconsistency in processor reporting with this Java version
OS tunes:

Windows Power Options = Balanced

Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
PCI Express Management = Maximum Power Savings
Powercfg /setacvalueindex scheme_current sub_processor PERFEPP 100
Powercfg /setacvalueindex scheme_current sub_processor perfautonomous 1
Powercfg /setactive scheme_current

Applied protection against speculative execution

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	6,567,487	1,694
		Payment	6,567,488
		Order Status	656,748
		Delivery	656,749
		Stock Level	656,748
		Customer Report	6,567,487
Calibration 2		New Order	6,420,228	1,694
		Payment	6,420,227
		Order Status	642,023
		Delivery	642,023
		Stock Level	642,022
		Customer Report	6,420,230
Calibration 3		New Order	6,614,596	1,694
		Payment	6,614,595
		Order Status	661,460
		Delivery	661,459
		Stock Level	661,460
		Customer Report	6,614,599
100%	100.0%	New Order	6,521,118	1,694
		Payment	6,521,125
		Order Status	652,112
		Delivery	652,113
		Stock Level	652,112
		Customer Report	6,521,123
90%	90.2%	New Order	5,878,490	1,694
		Payment	5,878,492
		Order Status	587,850
		Delivery	587,849
		Stock Level	587,849
		Customer Report	5,878,489
80%	80.8%	New Order	5,265,273	1,694
		Payment	5,265,273
		Order Status	526,528
		Delivery	526,525
		Stock Level	526,529
		Customer Report	5,265,269
70%	70.7%	New Order	4,606,731	1,694
		Payment	4,606,736
		Order Status	460,675
		Delivery	460,674
		Stock Level	460,673
		Customer Report	4,606,735
60%	60.4%	New Order	3,937,589	1,694
		Payment	3,937,587
		Order Status	393,759
		Delivery	393,759
		Stock Level	393,757
		Customer Report	3,937,585
50%	49.8%	New Order	3,243,254	1,694
		Payment	3,243,250
		Order Status	324,325
		Delivery	324,325
		Stock Level	324,324
		Customer Report	3,243,251
40%	39.7%	New Order	2,585,744	1,694
		Payment	2,585,743
		Order Status	258,574
		Delivery	258,574
		Stock Level	258,573
		Customer Report	2,585,746
30%	30.6%	New Order	1,993,521	1,694
		Payment	1,993,527
		Order Status	199,352
		Delivery	199,352
		Stock Level	199,352
		Customer Report	1,993,526
20%	19.7%	New Order	1,285,454	1,694
		Payment	1,285,456
		Order Status	128,546
		Delivery	128,545
		Stock Level	128,547
		Customer Report	1,285,452
10%	10.5%	New Order	684,847	1,694
		Payment	684,848
		Order Status	68,485
		Delivery	68,486
		Stock Level	68,485
		Customer Report	684,849
Active Idle		New Order	0	1,694
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
