Lenovo Global Technology ThinkSystem SR645 ssj_ops@100% = 12,283,667
ssj_ops@100% per JVM = 191,932
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 10, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2020 Publication: Mar 24, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     12,358,050
Calibration 2     12,320,976
Calibration 3     12,339,302
ssj_ops@calibrated=12,330,139
100% 99.6% 12,330,139 12,283,667
90% 89.8% 11,097,125 11,068,981
80% 79.8% 9,864,111 9,836,813
70% 70.0% 8,631,097 8,635,518
60% 60.0% 7,398,083 7,394,180
50% 49.9% 6,165,070 6,149,490
40% 39.9% 4,932,056 4,925,220
30% 30.0% 3,699,042 3,701,249
20% 20.0% 2,466,028 2,468,969
10% 10.0% 1,233,014 1,230,735
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR645
Form Factor: 1U
CPU Name: AMD EPYC 7763 2.45GHz
CPU Characteristics: 64-Core, 2.45GHz, 256MB L3 Cache
CPU Frequency (MHz): 2450
CPU(s) Enabled: 128 cores, 2 chips, 64 cores/chip
Hardware Threads: 256 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
Tertiary Cache: 256 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 16 x 16384 MB
Memory Details: 16 x 16GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16, 17, 19, 21, 23, 26, 28, 30,and 32 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:4P57A26292
Disk Drive: 1 x 128GB M.2 SSD P/N:7N47A00130 M.2 Module P/N:4Y37A09738
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem Broadcom 1GbE 2-Port Ethernet Adapter
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Suse Linux Enterprise Server 15 SP2
OS Version: 5.3.18-22-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.4+10-LTS, mixed mode)
JVM Command-line Options: -server -Xmn1700m -Xms1950m -Xmx1950m -XX:UseSSE=4 -XX:UseAVX=1 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=2 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity: for each even physicalCoreId { numactl -C physicalCoreId, physicalCoreId+1, physicalCoreId + 128, physicalCoreId + 129 }
JVM Instances: 64
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: D8E113P(2.00)
Management Firmware Version: D8BT13U(3.00)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
localhost.001 194,612
localhost.002 194,245
localhost.003 186,967
localhost.004 191,365
localhost.005 196,244
localhost.006 190,278
localhost.007 194,499
localhost.008 189,458
localhost.009 196,707
localhost.010 197,349
localhost.011 188,189
localhost.012 188,895
localhost.013 190,701
localhost.014 190,713
localhost.015 191,836
localhost.016 193,340
localhost.017 187,417
localhost.018 191,282
localhost.019 194,236
localhost.020 186,429
localhost.021 192,130
localhost.022 190,544
localhost.023 186,321
localhost.024 191,287
localhost.025 190,312
localhost.026 193,522
localhost.027 193,231
localhost.028 197,307
localhost.029 195,923
localhost.030 188,092
localhost.031 194,976
localhost.032 192,841
localhost.033 192,508
localhost.034 185,888
localhost.035 189,010
localhost.036 195,808
localhost.037 187,381
localhost.038 197,235
localhost.039 197,277
localhost.040 187,839
localhost.041 194,122
localhost.042 192,953
localhost.043 193,926
localhost.044 197,637
localhost.045 190,318
localhost.046 192,176
localhost.047 194,827
localhost.048 188,215
localhost.049 192,318
localhost.050 186,599
localhost.051 193,015
localhost.052 192,415
localhost.053 191,004
localhost.054 190,983
localhost.055 190,768
localhost.056 193,454
localhost.057 186,833
localhost.058 197,400
localhost.059 192,101
localhost.060 189,165
localhost.061 190,912
localhost.062 187,546
localhost.063 195,445
localhost.064 195,342
ssj_ops@100% 12,283,667
ssj_ops@100% per JVM 191,932
Graph of per-instance results
JVM 'localhost.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,008
Calibration 2     195,871
Calibration 3     196,268
ssj_ops@calibrated=196,070
100% 99.3% 196,070 194,612
90% 89.6% 176,463 175,726
80% 78.9% 156,856 154,789
70% 70.3% 137,249 137,836
60% 59.3% 117,642 116,355
50% 49.8% 98,035 97,734
40% 39.9% 78,428 78,262
30% 30.1% 58,821 59,100
20% 19.8% 39,214 38,810
10% 9.6% 19,607 18,917
Active Idle   0 0
Graph of results
JVM 'localhost.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,568
Calibration 2     195,209
Calibration 3     196,229
ssj_ops@calibrated=195,719
100% 99.2% 195,719 194,245
90% 89.3% 176,147 174,690
80% 79.6% 156,575 155,762
70% 70.2% 137,003 137,390
60% 60.2% 117,431 117,822
50% 49.2% 97,860 96,205
40% 40.0% 78,288 78,353
30% 30.3% 58,716 59,290
20% 19.9% 39,144 38,937
10% 10.1% 19,572 19,766
Active Idle   0 0
Graph of results
JVM 'localhost.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,300
Calibration 2     187,332
Calibration 3     188,773
ssj_ops@calibrated=188,052
100% 99.4% 188,052 186,967
90% 89.5% 169,247 168,237
80% 80.0% 150,442 150,481
70% 70.2% 131,636 132,060
60% 59.8% 112,831 112,506
50% 50.0% 94,026 94,007
40% 40.3% 75,221 75,693
30% 30.1% 56,416 56,583
20% 19.7% 37,610 37,017
10% 10.1% 18,805 18,915
Active Idle   0 0
Graph of results
JVM 'localhost.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,182
Calibration 2     191,467
Calibration 3     192,040
ssj_ops@calibrated=191,753
100% 99.8% 191,753 191,365
90% 89.9% 172,578 172,437
80% 79.7% 153,403 152,849
70% 70.4% 134,227 135,079
60% 59.9% 115,052 114,829
50% 50.1% 95,877 95,976
40% 39.8% 76,701 76,405
30% 30.2% 57,526 57,956
20% 20.1% 38,351 38,458
10% 9.9% 19,175 19,016
Active Idle   0 0
Graph of results
JVM 'localhost.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,478
Calibration 2     196,882
Calibration 3     196,505
ssj_ops@calibrated=196,693
100% 99.8% 196,693 196,244
90% 90.1% 177,024 177,232
80% 80.2% 157,354 157,684
70% 70.0% 137,685 137,708
60% 60.1% 118,016 118,247
50% 50.1% 98,347 98,616
40% 40.8% 78,677 80,169
30% 29.9% 59,008 58,880
20% 19.8% 39,339 38,932
10% 10.1% 19,669 19,942
Active Idle   0 0
Graph of results
JVM 'localhost.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,647
Calibration 2     191,571
Calibration 3     191,519
ssj_ops@calibrated=191,545
100% 99.3% 191,545 190,278
90% 89.7% 172,390 171,739
80% 79.9% 153,236 153,066
70% 69.1% 134,081 132,438
60% 59.7% 114,927 114,348
50% 50.0% 95,772 95,858
40% 39.9% 76,618 76,486
30% 30.1% 57,463 57,572
20% 20.5% 38,309 39,317
10% 9.9% 19,154 18,976
Active Idle   0 0
Graph of results
JVM 'localhost.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,633
Calibration 2     196,404
Calibration 3     195,926
ssj_ops@calibrated=196,165
100% 99.2% 196,165 194,499
90% 88.6% 176,549 173,707
80% 79.2% 156,932 155,281
70% 70.1% 137,316 137,518
60% 59.8% 117,699 117,372
50% 50.0% 98,083 98,127
40% 40.1% 78,466 78,725
30% 29.9% 58,850 58,633
20% 20.1% 39,233 39,419
10% 10.2% 19,617 19,963
Active Idle   0 0
Graph of results
JVM 'localhost.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,749
Calibration 2     189,393
Calibration 3     189,924
ssj_ops@calibrated=189,659
100% 99.9% 189,659 189,458
90% 90.3% 170,693 171,239
80% 79.7% 151,727 151,198
70% 69.9% 132,761 132,551
60% 59.9% 113,795 113,511
50% 49.6% 94,829 93,994
40% 39.3% 75,863 74,586
30% 30.0% 56,898 56,842
20% 20.2% 37,932 38,279
10% 10.1% 18,966 19,094
Active Idle   0 0
Graph of results
JVM 'localhost.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,810
Calibration 2     194,383
Calibration 3     197,274
ssj_ops@calibrated=195,829
100% 100.4% 195,829 196,707
90% 90.6% 176,246 177,404
80% 80.0% 156,663 156,679
70% 70.1% 137,080 137,237
60% 60.2% 117,497 117,852
50% 50.3% 97,914 98,481
40% 39.9% 78,331 78,070
30% 30.4% 58,749 59,530
20% 20.1% 39,166 39,369
10% 9.8% 19,583 19,197
Active Idle   0 0
Graph of results
JVM 'localhost.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,181
Calibration 2     199,592
Calibration 3     198,368
ssj_ops@calibrated=198,980
100% 99.2% 198,980 197,349
90% 88.7% 179,082 176,532
80% 79.3% 159,184 157,700
70% 70.5% 139,286 140,254
60% 60.0% 119,388 119,440
50% 49.4% 99,490 98,377
40% 39.6% 79,592 78,771
30% 30.1% 59,694 59,860
20% 20.0% 39,796 39,877
10% 9.9% 19,898 19,648
Active Idle   0 0
Graph of results
JVM 'localhost.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,290
Calibration 2     189,844
Calibration 3     190,980
ssj_ops@calibrated=190,412
100% 98.8% 190,412 188,189
90% 90.2% 171,371 171,822
80% 79.9% 152,330 152,120
70% 69.6% 133,288 132,465
60% 59.7% 114,247 113,673
50% 50.1% 95,206 95,464
40% 40.3% 76,165 76,823
30% 29.9% 57,124 56,964
20% 20.0% 38,082 38,089
10% 10.0% 19,041 18,952
Active Idle   0 0
Graph of results
JVM 'localhost.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,440
Calibration 2     189,107
Calibration 3     190,337
ssj_ops@calibrated=189,722
100% 99.6% 189,722 188,895
90% 89.9% 170,750 170,607
80% 80.2% 151,778 152,128
70% 70.1% 132,806 133,079
60% 60.8% 113,833 115,395
50% 49.3% 94,861 93,617
40% 40.2% 75,889 76,212
30% 30.3% 56,917 57,468
20% 19.9% 37,944 37,817
10% 10.1% 18,972 19,156
Active Idle   0 0
Graph of results
JVM 'localhost.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,864
Calibration 2     190,087
Calibration 3     190,327
ssj_ops@calibrated=190,207
100% 100.3% 190,207 190,701
90% 89.8% 171,186 170,805
80% 79.6% 152,165 151,355
70% 70.8% 133,145 134,681
60% 60.3% 114,124 114,644
50% 50.3% 95,103 95,676
40% 40.0% 76,083 76,009
30% 30.1% 57,062 57,221
20% 19.5% 38,041 37,036
10% 9.8% 19,021 18,590
Active Idle   0 0
Graph of results
JVM 'localhost.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,721
Calibration 2     192,600
Calibration 3     191,881
ssj_ops@calibrated=192,241
100% 99.2% 192,241 190,713
90% 89.2% 173,017 171,510
80% 80.1% 153,792 153,949
70% 69.6% 134,568 133,796
60% 60.1% 115,344 115,574
50% 50.5% 96,120 97,105
40% 40.0% 76,896 76,871
30% 29.9% 57,672 57,476
20% 19.7% 38,448 37,794
10% 9.7% 19,224 18,728
Active Idle   0 0
Graph of results
JVM 'localhost.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,000
Calibration 2     193,145
Calibration 3     193,273
ssj_ops@calibrated=193,209
100% 99.3% 193,209 191,836
90% 89.7% 173,888 173,405
80% 79.7% 154,567 154,030
70% 70.1% 135,246 135,350
60% 60.4% 115,925 116,655
50% 50.0% 96,605 96,654
40% 39.4% 77,284 76,152
30% 29.7% 57,963 57,465
20% 19.8% 38,642 38,293
10% 10.2% 19,321 19,690
Active Idle   0 0
Graph of results
JVM 'localhost.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,581
Calibration 2     193,675
Calibration 3     193,763
ssj_ops@calibrated=193,719
100% 99.8% 193,719 193,340
90% 89.8% 174,347 174,002
80% 79.5% 154,975 153,919
70% 69.9% 135,604 135,421
60% 60.2% 116,232 116,701
50% 50.3% 96,860 97,377
40% 40.2% 77,488 77,895
30% 30.1% 58,116 58,388
20% 19.7% 38,744 38,234
10% 10.1% 19,372 19,537
Active Idle   0 0
Graph of results
JVM 'localhost.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,973
Calibration 2     186,848
Calibration 3     187,437
ssj_ops@calibrated=187,142
100% 100.1% 187,142 187,417
90% 90.1% 168,428 168,681
80% 79.6% 149,714 148,968
70% 69.9% 131,000 130,865
60% 60.3% 112,285 112,783
50% 49.9% 93,571 93,351
40% 40.5% 74,857 75,750
30% 30.2% 56,143 56,445
20% 19.9% 37,428 37,241
10% 10.1% 18,714 18,923
Active Idle   0 0
Graph of results
JVM 'localhost.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,865
Calibration 2     190,819
Calibration 3     193,062
ssj_ops@calibrated=191,940
100% 99.7% 191,940 191,282
90% 89.7% 172,746 172,246
80% 79.8% 153,552 153,226
70% 70.0% 134,358 134,345
60% 60.1% 115,164 115,337
50% 49.6% 95,970 95,215
40% 39.9% 76,776 76,528
30% 30.3% 57,582 58,076
20% 20.3% 38,388 39,011
10% 10.0% 19,194 19,288
Active Idle   0 0
Graph of results
JVM 'localhost.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,768
Calibration 2     195,271
Calibration 3     195,659
ssj_ops@calibrated=195,465
100% 99.4% 195,465 194,236
90% 89.4% 175,919 174,698
80% 79.2% 156,372 154,769
70% 70.3% 136,826 137,339
60% 59.4% 117,279 116,138
50% 50.1% 97,733 97,903
40% 40.0% 78,186 78,089
30% 30.3% 58,640 59,307
20% 19.6% 39,093 38,352
10% 9.9% 19,547 19,373
Active Idle   0 0
Graph of results
JVM 'localhost.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,978
Calibration 2     188,042
Calibration 3     187,322
ssj_ops@calibrated=187,682
100% 99.3% 187,682 186,429
90% 90.1% 168,914 169,047
80% 79.7% 150,146 149,517
70% 70.2% 131,377 131,717
60% 59.4% 112,609 111,478
50% 50.1% 93,841 94,045
40% 39.8% 75,073 74,672
30% 29.6% 56,305 55,610
20% 19.9% 37,536 37,334
10% 10.0% 18,768 18,729
Active Idle   0 0
Graph of results
JVM 'localhost.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,085
Calibration 2     191,532
Calibration 3     194,234
ssj_ops@calibrated=192,883
100% 99.6% 192,883 192,130
90% 89.9% 173,595 173,464
80% 79.8% 154,306 153,987
70% 69.7% 135,018 134,396
60% 59.8% 115,730 115,311
50% 49.8% 96,441 95,995
40% 40.5% 77,153 78,109
30% 29.7% 57,865 57,300
20% 20.2% 38,577 38,964
10% 10.0% 19,288 19,359
Active Idle   0 0
Graph of results
JVM 'localhost.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,337
Calibration 2     190,795
Calibration 3     192,073
ssj_ops@calibrated=191,434
100% 99.5% 191,434 190,544
90% 89.7% 172,291 171,659
80% 79.2% 153,147 151,578
70% 70.0% 134,004 133,938
60% 59.7% 114,860 114,360
50% 49.9% 95,717 95,577
40% 40.2% 76,574 76,903
30% 30.1% 57,430 57,537
20% 20.3% 38,287 38,834
10% 9.9% 19,143 19,031
Active Idle   0 0
Graph of results
JVM 'localhost.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,694
Calibration 2     189,214
Calibration 3     184,428
ssj_ops@calibrated=186,821
100% 99.7% 186,821 186,321
90% 89.7% 168,139 167,549
80% 79.7% 149,457 148,878
70% 69.3% 130,775 129,395
60% 60.5% 112,093 112,976
50% 49.8% 93,411 92,979
40% 39.9% 74,728 74,493
30% 29.9% 56,046 55,808
20% 20.1% 37,364 37,527
10% 9.8% 18,682 18,337
Active Idle   0 0
Graph of results
JVM 'localhost.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,704
Calibration 2     191,745
Calibration 3     192,885
ssj_ops@calibrated=192,315
100% 99.5% 192,315 191,287
90% 89.6% 173,084 172,338
80% 79.7% 153,852 153,273
70% 70.2% 134,621 134,975
60% 59.3% 115,389 114,033
50% 49.7% 96,158 95,538
40% 40.0% 76,926 76,957
30% 30.2% 57,695 58,021
20% 20.1% 38,463 38,600
10% 10.0% 19,232 19,282
Active Idle   0 0
Graph of results
JVM 'localhost.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,699
Calibration 2     188,861
Calibration 3     190,649
ssj_ops@calibrated=189,755
100% 100.3% 189,755 190,312
90% 90.4% 170,779 171,545
80% 80.3% 151,804 152,294
70% 70.4% 132,828 133,509
60% 60.1% 113,853 113,971
50% 50.1% 94,877 95,119
40% 39.7% 75,902 75,386
30% 29.9% 56,926 56,687
20% 20.0% 37,951 37,989
10% 9.9% 18,975 18,727
Active Idle   0 0
Graph of results
JVM 'localhost.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,555
Calibration 2     194,482
Calibration 3     194,498
ssj_ops@calibrated=194,490
100% 99.5% 194,490 193,522
90% 89.5% 175,041 174,067
80% 79.5% 155,592 154,630
70% 70.2% 136,143 136,531
60% 60.1% 116,694 116,817
50% 49.6% 97,245 96,486
40% 39.6% 77,796 76,937
30% 29.7% 58,347 57,733
20% 20.0% 38,898 38,857
10% 9.9% 19,449 19,237
Active Idle   0 0
Graph of results
JVM 'localhost.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,942
Calibration 2     193,079
Calibration 3     192,986
ssj_ops@calibrated=193,032
100% 100.1% 193,032 193,231
90% 89.4% 173,729 172,616
80% 79.2% 154,426 152,902
70% 70.6% 135,123 136,194
60% 59.8% 115,819 115,378
50% 49.6% 96,516 95,656
40% 40.3% 77,213 77,718
30% 29.7% 57,910 57,250
20% 19.8% 38,606 38,267
10% 10.1% 19,303 19,486
Active Idle   0 0
Graph of results
JVM 'localhost.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,102
Calibration 2     197,885
Calibration 3     198,708
ssj_ops@calibrated=198,297
100% 99.5% 198,297 197,307
90% 89.7% 178,467 177,960
80% 79.6% 158,637 157,750
70% 69.9% 138,808 138,562
60% 60.4% 118,978 119,767
50% 49.6% 99,148 98,347
40% 40.2% 79,319 79,771
30% 30.4% 59,489 60,308
20% 19.6% 39,659 38,946
10% 10.2% 19,830 20,196
Active Idle   0 0
Graph of results
JVM 'localhost.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,917
Calibration 2     196,009
Calibration 3     196,943
ssj_ops@calibrated=196,476
100% 99.7% 196,476 195,923
90% 90.0% 176,829 176,822
80% 79.6% 157,181 156,390
70% 69.5% 137,533 136,501
60% 60.2% 117,886 118,344
50% 49.8% 98,238 97,864
40% 39.5% 78,591 77,680
30% 29.9% 58,943 58,677
20% 20.1% 39,295 39,423
10% 10.1% 19,648 19,807
Active Idle   0 0
Graph of results
JVM 'localhost.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,277
Calibration 2     189,568
Calibration 3     188,641
ssj_ops@calibrated=189,104
100% 99.5% 189,104 188,092
90% 89.3% 170,194 168,881
80% 80.0% 151,283 151,306
70% 70.2% 132,373 132,725
60% 60.1% 113,463 113,657
50% 49.3% 94,552 93,145
40% 40.2% 75,642 75,988
30% 30.4% 56,731 57,484
20% 20.2% 37,821 38,293
10% 10.2% 18,910 19,298
Active Idle   0 0
Graph of results
JVM 'localhost.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,464
Calibration 2     195,596
Calibration 3     194,303
ssj_ops@calibrated=194,950
100% 100.0% 194,950 194,976
90% 89.7% 175,455 174,806
80% 80.1% 155,960 156,225
70% 70.5% 136,465 137,373
60% 59.4% 116,970 115,878
50% 50.0% 97,475 97,425
40% 40.0% 77,980 78,045
30% 30.3% 58,485 59,015
20% 20.3% 38,990 39,541
10% 10.1% 19,495 19,695
Active Idle   0 0
Graph of results

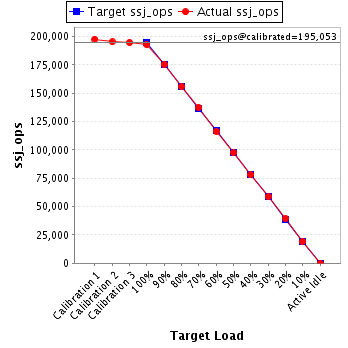

JVM 'localhost.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,788
Calibration 2     195,336
Calibration 3     194,769
ssj_ops@calibrated=195,053
100% 98.9% 195,053 192,841
90% 90.0% 175,547 175,515
80% 79.9% 156,042 155,788
70% 70.4% 136,537 137,395
60% 59.7% 117,032 116,394
50% 50.0% 97,526 97,431
40% 40.0% 78,021 77,926
30% 30.1% 58,516 58,745
20% 20.1% 39,011 39,247
10% 9.9% 19,505 19,249
Active Idle   0 0
Graph of results
JVM 'localhost.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,208
Calibration 2     193,070
Calibration 3     193,322
ssj_ops@calibrated=193,196
100% 99.6% 193,196 192,508
90% 89.5% 173,877 172,969
80% 79.8% 154,557 154,155
70% 69.9% 135,237 135,055
60% 60.0% 115,918 115,944
50% 49.9% 96,598 96,404
40% 39.7% 77,279 76,763
30% 30.5% 57,959 58,919
20% 19.9% 38,639 38,533
10% 9.9% 19,320 19,180
Active Idle   0 0
Graph of results
JVM 'localhost.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,488
Calibration 2     186,260
Calibration 3     189,017
ssj_ops@calibrated=187,638
100% 99.1% 187,638 185,888
90% 90.4% 168,874 169,587
80% 79.5% 150,111 149,258
70% 70.0% 131,347 131,371
60% 60.3% 112,583 113,064
50% 50.7% 93,819 95,153
40% 40.2% 75,055 75,456
30% 30.0% 56,291 56,264
20% 19.8% 37,528 37,106
10% 10.2% 18,764 19,165
Active Idle   0 0
Graph of results
JVM 'localhost.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,215
Calibration 2     189,206
Calibration 3     190,599
ssj_ops@calibrated=189,903
100% 99.5% 189,903 189,010
90% 89.6% 170,912 170,198
80% 79.4% 151,922 150,872
70% 69.4% 132,932 131,879
60% 59.2% 113,942 112,427
50% 49.8% 94,951 94,640
40% 39.2% 75,961 74,454
30% 29.7% 56,971 56,468
20% 20.0% 37,981 38,032
10% 10.0% 18,990 18,914
Active Idle   0 0
Graph of results
JVM 'localhost.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,189
Calibration 2     196,884
Calibration 3     197,278
ssj_ops@calibrated=197,081
100% 99.4% 197,081 195,808
90% 89.8% 177,373 176,899
80% 79.7% 157,665 157,028
70% 70.2% 137,957 138,304
60% 59.9% 118,249 118,055
50% 49.8% 98,541 98,177
40% 40.0% 78,832 78,810
30% 29.9% 59,124 58,943
20% 20.2% 39,416 39,865
10% 9.9% 19,708 19,517
Active Idle   0 0
Graph of results
JVM 'localhost.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     183,821
Calibration 2     187,328
Calibration 3     187,978
ssj_ops@calibrated=187,653
100% 99.9% 187,653 187,381
90% 90.0% 168,887 168,816
80% 80.0% 150,122 150,061
70% 70.2% 131,357 131,735
60% 60.1% 112,592 112,693
50% 50.2% 93,826 94,219
40% 39.6% 75,061 74,361
30% 30.2% 56,296 56,619
20% 20.3% 37,531 38,036
10% 10.2% 18,765 19,088
Active Idle   0 0
Graph of results
JVM 'localhost.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,774
Calibration 2     199,293
Calibration 3     198,504
ssj_ops@calibrated=198,898
100% 99.2% 198,898 197,235
90% 89.0% 179,009 177,081
80% 79.4% 159,119 157,947
70% 70.2% 139,229 139,553
60% 59.6% 119,339 118,524
50% 50.0% 99,449 99,495
40% 40.2% 79,559 79,958
30% 29.8% 59,670 59,251
20% 20.3% 39,780 40,321
10% 9.9% 19,890 19,715
Active Idle   0 0

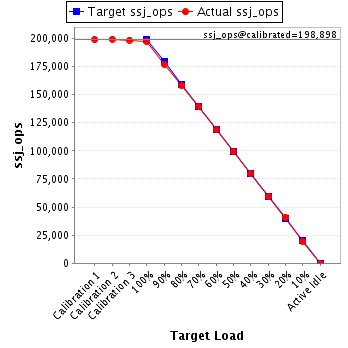

Graph of results
JVM 'localhost.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     199,945
Calibration 2     196,372
Calibration 3     196,936
ssj_ops@calibrated=196,654
100% 100.3% 196,654 197,277
90% 89.5% 176,988 176,092
80% 79.7% 157,323 156,653
70% 69.9% 137,658 137,396
60% 59.8% 117,992 117,557
50% 50.2% 98,327 98,783
40% 39.9% 78,662 78,376
30% 29.8% 58,996 58,676
20% 20.1% 39,331 39,572
10% 9.7% 19,665 19,153
Active Idle   0 0
Graph of results
JVM 'localhost.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     188,614
Calibration 2     188,771
Calibration 3     187,862
ssj_ops@calibrated=188,317
100% 99.7% 188,317 187,839
90% 90.0% 169,485 169,415
80% 79.4% 150,653 149,498
70% 69.9% 131,822 131,687
60% 59.5% 112,990 112,111
50% 49.6% 94,158 93,386
40% 40.0% 75,327 75,409
30% 29.7% 56,495 55,868
20% 19.8% 37,663 37,250
10% 9.9% 18,832 18,584
Active Idle   0 0
Graph of results
JVM 'localhost.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,448
Calibration 2     192,674
Calibration 3     194,342
ssj_ops@calibrated=193,508
100% 100.3% 193,508 194,122
90% 90.1% 174,157 174,445
80% 79.3% 154,806 153,365
70% 70.8% 135,455 136,966
60% 60.3% 116,105 116,780
50% 50.0% 96,754 96,667
40% 39.9% 77,403 77,191
30% 29.8% 58,052 57,616
20% 19.9% 38,702 38,506
10% 10.2% 19,351 19,766
Active Idle   0 0
Graph of results
JVM 'localhost.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,569
Calibration 2     192,866
Calibration 3     194,823
ssj_ops@calibrated=193,845
100% 99.5% 193,845 192,953
90% 89.9% 174,460 174,293
80% 79.9% 155,076 154,945
70% 69.9% 135,691 135,451
60% 60.1% 116,307 116,418
50% 50.2% 96,922 97,348
40% 39.8% 77,538 77,103
30% 30.3% 58,153 58,755
20% 20.1% 38,769 38,999
10% 9.9% 19,384 19,119
Active Idle   0 0
Graph of results
JVM 'localhost.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,009
Calibration 2     194,195
Calibration 3     193,712
ssj_ops@calibrated=193,953
100% 100.0% 193,953 193,926
90% 89.9% 174,558 174,373
80% 80.3% 155,163 155,757
70% 69.8% 135,767 135,411
60% 59.6% 116,372 115,565
50% 49.9% 96,977 96,822
40% 39.9% 77,581 77,318
30% 29.9% 58,186 57,905
20% 20.0% 38,791 38,709
10% 10.1% 19,395 19,497
Active Idle   0 0
Graph of results
JVM 'localhost.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,978
Calibration 2     198,092
Calibration 3     198,636
ssj_ops@calibrated=198,364
100% 99.6% 198,364 197,637
90% 90.1% 178,528 178,815
80% 79.9% 158,691 158,425
70% 70.4% 138,855 139,716
60% 60.2% 119,018 119,409
50% 49.6% 99,182 98,330
40% 39.7% 79,346 78,814
30% 30.1% 59,509 59,762
20% 20.3% 39,673 40,266
10% 10.3% 19,836 20,469
Active Idle   0 0
Graph of results
JVM 'localhost.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,757
Calibration 2     190,798
Calibration 3     190,828
ssj_ops@calibrated=190,813
100% 99.7% 190,813 190,318
90% 89.2% 171,731 170,296
80% 80.4% 152,650 153,394
70% 69.8% 133,569 133,231
60% 60.2% 114,488 114,901
50% 50.0% 95,406 95,494
40% 40.0% 76,325 76,333
30% 30.0% 57,244 57,266
20% 20.3% 38,163 38,651
10% 10.2% 19,081 19,410
Active Idle   0 0
Graph of results
JVM 'localhost.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,572
Calibration 2     192,915
Calibration 3     192,710
ssj_ops@calibrated=192,813
100% 99.7% 192,813 192,176
90% 89.9% 173,531 173,243
80% 79.9% 154,250 154,104
70% 70.0% 134,969 134,897
60% 60.4% 115,688 116,408
50% 49.7% 96,406 95,904
40% 40.1% 77,125 77,299
30% 30.4% 57,844 58,673
20% 20.0% 38,563 38,523
10% 9.7% 19,281 18,778
Active Idle   0 0
Graph of results
JVM 'localhost.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,192
Calibration 2     196,095
Calibration 3     194,774
ssj_ops@calibrated=195,434
100% 99.7% 195,434 194,827
90% 89.5% 175,891 174,914
80% 79.5% 156,348 155,352
70% 70.1% 136,804 136,933
60% 59.7% 117,261 116,702
50% 49.4% 97,717 96,551
40% 39.5% 78,174 77,236
30% 30.1% 58,630 58,790
20% 19.8% 39,087 38,702
10% 9.7% 19,543 18,923
Active Idle   0 0
Graph of results
JVM 'localhost.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,814
Calibration 2     189,906
Calibration 3     190,237
ssj_ops@calibrated=190,071
100% 99.0% 190,071 188,215
90% 90.1% 171,064 171,313
80% 80.3% 152,057 152,693
70% 69.8% 133,050 132,682
60% 59.9% 114,043 113,778
50% 49.7% 95,036 94,514
40% 40.1% 76,029 76,221
30% 30.1% 57,021 57,225
20% 20.2% 38,014 38,396
10% 9.9% 19,007 18,812
Active Idle   0 0
Graph of results
JVM 'localhost.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,545
Calibration 2     192,224
Calibration 3     194,182
ssj_ops@calibrated=193,203
100% 99.5% 193,203 192,318
90% 89.6% 173,883 173,023
80% 80.1% 154,563 154,678
70% 70.1% 135,242 135,487
60% 60.4% 115,922 116,645
50% 50.2% 96,602 97,005
40% 40.0% 77,281 77,239
30% 29.5% 57,961 57,091
20% 20.3% 38,641 39,128
10% 10.0% 19,320 19,415
Active Idle   0 0
Graph of results
JVM 'localhost.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,718
Calibration 2     186,829
Calibration 3     187,885
ssj_ops@calibrated=187,357
100% 99.6% 187,357 186,599
90% 90.0% 168,621 168,574
80% 80.0% 149,886 149,939
70% 70.4% 131,150 131,929
60% 60.7% 112,414 113,765
50% 49.9% 93,679 93,540
40% 40.2% 74,943 75,384
30% 29.6% 56,207 55,543
20% 20.2% 37,471 37,894
10% 10.0% 18,736 18,824
Active Idle   0 0
Graph of results
JVM 'localhost.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,601
Calibration 2     193,804
Calibration 3     192,653
ssj_ops@calibrated=193,229
100% 99.9% 193,229 193,015
90% 89.3% 173,906 172,459
80% 80.4% 154,583 155,446
70% 69.8% 135,260 134,848
60% 60.4% 115,937 116,807
50% 49.9% 96,614 96,464
40% 40.0% 77,292 77,366
30% 29.5% 57,969 56,997
20% 20.2% 38,646 39,038
10% 10.2% 19,323 19,670
Active Idle   0 0
Graph of results
JVM 'localhost.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,884
Calibration 2     193,935
Calibration 3     194,432
ssj_ops@calibrated=194,184
100% 99.1% 194,184 192,415
90% 89.9% 174,765 174,526
80% 79.8% 155,347 154,869
70% 70.1% 135,929 136,031
60% 60.2% 116,510 116,862
50% 49.5% 97,092 96,189
40% 39.7% 77,673 77,145
30% 30.1% 58,255 58,535
20% 20.3% 38,837 39,475
10% 9.7% 19,418 18,884
Active Idle   0 0
Graph of results
JVM 'localhost.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,619
Calibration 2     192,308
Calibration 3     191,409
ssj_ops@calibrated=191,858
100% 99.6% 191,858 191,004
90% 90.3% 172,672 173,289
80% 80.2% 153,487 153,922
70% 69.3% 134,301 132,972
60% 59.9% 115,115 115,007
50% 50.4% 95,929 96,715
40% 39.8% 76,743 76,364
30% 30.1% 57,557 57,752
20% 19.8% 38,372 38,079
10% 10.2% 19,186 19,612
Active Idle   0 0
Graph of results
JVM 'localhost.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     193,868
Calibration 2     191,667
Calibration 3     192,264
ssj_ops@calibrated=191,965
100% 99.5% 191,965 190,983
90% 90.3% 172,769 173,331
80% 79.7% 153,572 152,928
70% 70.2% 134,376 134,670
60% 59.7% 115,179 114,689
50% 50.1% 95,983 96,233
40% 40.2% 76,786 77,170
30% 30.3% 57,590 58,091
20% 20.1% 38,393 38,578
10% 10.2% 19,197 19,553
Active Idle   0 0
Graph of results
JVM 'localhost.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     190,406
Calibration 2     191,123
Calibration 3     192,071
ssj_ops@calibrated=191,597
100% 99.6% 191,597 190,768
90% 90.3% 172,437 172,989
80% 80.2% 153,278 153,600
70% 70.6% 134,118 135,218
60% 59.7% 114,958 114,423
50% 50.5% 95,799 96,698
40% 39.9% 76,639 76,435
30% 29.6% 57,479 56,777
20% 20.1% 38,319 38,564
10% 10.0% 19,160 19,122
Active Idle   0 0
Graph of results
JVM 'localhost.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,296
Calibration 2     193,938
Calibration 3     193,724
ssj_ops@calibrated=193,831
100% 99.8% 193,831 193,454
90% 90.1% 174,448 174,623
80% 80.4% 155,065 155,764
70% 69.8% 135,682 135,324
60% 59.7% 116,299 115,777
50% 50.1% 96,916 97,189
40% 39.5% 77,532 76,644
30% 29.9% 58,149 57,945
20% 20.0% 38,766 38,731
10% 9.7% 19,383 18,795
Active Idle   0 0
Graph of results
JVM 'localhost.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     186,737
Calibration 2     187,298
Calibration 3     186,400
ssj_ops@calibrated=186,849
100% 100.0% 186,849 186,833
90% 90.2% 168,164 168,469
80% 80.2% 149,479 149,910
70% 70.5% 130,794 131,784
60% 59.8% 112,110 111,784
50% 49.8% 93,425 93,098
40% 39.7% 74,740 74,214
30% 30.1% 56,055 56,303
20% 19.6% 37,370 36,689
10% 10.0% 18,685 18,688
Active Idle   0 0
Graph of results
JVM 'localhost.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     196,735
Calibration 2     198,394
Calibration 3     197,591
ssj_ops@calibrated=197,993
100% 99.7% 197,993 197,400
90% 89.3% 178,193 176,780
80% 79.9% 158,394 158,281
70% 70.1% 138,595 138,715
60% 60.2% 118,796 119,176
50% 49.6% 98,996 98,181
40% 40.0% 79,197 79,122
30% 30.2% 59,398 59,814
20% 20.3% 39,599 40,148
10% 9.9% 19,799 19,690
Active Idle   0 0
Graph of results
JVM 'localhost.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     194,343
Calibration 2     192,513
Calibration 3     192,628
ssj_ops@calibrated=192,571
100% 99.8% 192,571 192,101
90% 89.9% 173,314 173,205
80% 79.9% 154,057 153,838
70% 69.7% 134,800 134,267
60% 59.9% 115,543 115,446
50% 49.8% 96,285 95,888
40% 40.1% 77,028 77,207
30% 29.7% 57,771 57,243
20% 20.1% 38,514 38,747
10% 10.0% 19,257 19,230
Active Idle   0 0
Graph of results
JVM 'localhost.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     189,288
Calibration 2     188,731
Calibration 3     190,683
ssj_ops@calibrated=189,707
100% 99.7% 189,707 189,165
90% 90.3% 170,736 171,287
80% 79.2% 151,765 150,185
70% 69.8% 132,795 132,323
60% 60.0% 113,824 113,868
50% 49.7% 94,853 94,267
40% 39.6% 75,883 75,113
30% 30.2% 56,912 57,225
20% 20.0% 37,941 38,013
10% 10.1% 18,971 19,136
Active Idle   0 0
Graph of results
JVM 'localhost.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     191,202
Calibration 2     192,511
Calibration 3     192,144
ssj_ops@calibrated=192,328
100% 99.3% 192,328 190,912
90% 89.2% 173,095 171,540
80% 80.0% 153,862 153,917
70% 70.3% 134,629 135,222
60% 60.0% 115,397 115,344
50% 49.6% 96,164 95,341
40% 39.6% 76,931 76,178
30% 30.2% 57,698 57,989
20% 20.0% 38,466 38,453
10% 9.8% 19,233 18,769
Active Idle   0 0
Graph of results
JVM 'localhost.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     187,827
Calibration 2     187,870
Calibration 3     187,001
ssj_ops@calibrated=187,436
100% 100.1% 187,436 187,546
90% 90.1% 168,692 168,925
80% 80.2% 149,949 150,373
70% 69.5% 131,205 130,328
60% 59.9% 112,461 112,270
50% 49.3% 93,718 92,338
40% 40.0% 74,974 74,943
30% 29.9% 56,231 56,093
20% 20.2% 37,487 37,874
10% 9.7% 18,744 18,262
Active Idle   0 0
Graph of results
JVM 'localhost.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,915
Calibration 2     196,204
Calibration 3     196,367
ssj_ops@calibrated=196,286
100% 99.6% 196,286 195,445
90% 89.9% 176,657 176,412
80% 80.0% 157,029 156,946
70% 70.2% 137,400 137,783
60% 59.8% 117,771 117,424
50% 49.2% 98,143 96,609
40% 40.1% 78,514 78,703
30% 30.2% 58,886 59,204
20% 19.6% 39,257 38,410
10% 9.7% 19,629 19,120
Active Idle   0 0
Graph of results
JVM 'localhost.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,876
Calibration 2     195,258
Calibration 3     194,325
ssj_ops@calibrated=194,791
100% 100.3% 194,791 195,342
90% 89.2% 175,312 173,811
80% 79.2% 155,833 154,236
70% 69.7% 136,354 135,727
60% 60.1% 116,875 117,014
50% 49.5% 97,396 96,506
40% 40.3% 77,917 78,458
30% 30.0% 58,437 58,416
20% 20.3% 38,958 39,574
10% 10.2% 19,479 19,774
Active Idle   0 0
Graph of results
