SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2021 Standard Performance Evaluation Corporation
| Supermicro Inc. SuperServer SYS-740GP-TNRT | SPECpower_ssj2008 = 12,568 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro Inc. | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro Inc. | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | May 27, 2021 |
| Hardware Availability: | May-2021 | Software Availability: | May-2021 | Publication: | Jul 7, 2021 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

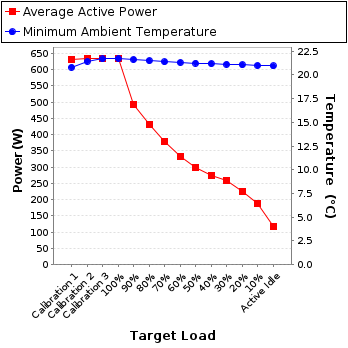

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 630 | 20.8 |
| Calibration 2 | 634 | 21.4 |
| Calibration 3 | 635 | 21.7 |
| 100% | 633 | 21.8 |
| 90% | 492 | 21.6 |
| 80% | 430 | 21.5 |
| 70% | 380 | 21.4 |
| 60% | 333 | 21.3 |
| 50% | 298 | 21.2 |
| 40% | 273 | 21.2 |
| 30% | 258 | 21.1 |
| 20% | 224 | 21.1 |
| 10% | 188 | 21.0 |
| Active Idle | 118 | 20.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310E |
| Serial Number: | C3TA01001E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-2352102H18D2 |
| Date of Calibration: | 19-Feb-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |

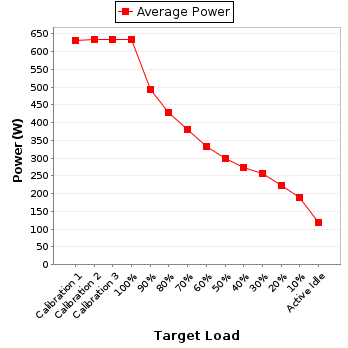

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 222 | 300.0 | 2.87 | 5.0 | 0.990 | 630 | 0.4% |
| Calibration 2 | 220 | 300.0 | 2.91 | 5.0 | 0.990 | 634 | 0.4% |
| Calibration 3 | 218 | 300.0 | 2.94 | 5.0 | 0.990 | 635 | 0.4% |
| 100% | 218 | 300.0 | 2.94 | 5.0 | 0.990 | 633 | 0.4% |
| 90% | 217 | 300.0 | 2.30 | 5.0 | 0.985 | 492 | 0.4% |
| 80% | 217 | 300.0 | 2.02 | 5.0 | 0.982 | 430 | 0.5% |
| 70% | 218 | 300.0 | 1.78 | 2.0 | 0.978 | 380 | 0.3% |
| 60% | 218 | 300.0 | 1.57 | 2.0 | 0.972 | 333 | 0.3% |
| 50% | 218 | 300.0 | 1.41 | 2.0 | 0.967 | 298 | 0.4% |
| 40% | 218 | 300.0 | 1.30 | 2.0 | 0.962 | 273 | 0.4% |
| 30% | 218 | 300.0 | 1.24 | 2.0 | 0.958 | 258 | 0.4% |
| 20% | 218 | 300.0 | 1.08 | 1.0 | 0.948 | 224 | 0.3% |
| 10% | 219 | 300.0 | 0.921 | 1.0 | 0.932 | 188 | 0.3% |
| Active Idle | 219 | 300.0 | 0.620 | 1.0 | 0.872 | 118 | 0.4% |
