Inspur Corporation Inspur NF5180M6 SPECpower_ssj2008 = 7,915 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jun 29, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Jul 29, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 648 22.2
Calibration 2 650 22.6
Calibration 3 650 22.9
100% 650 23.0
90% 583 23.1
80% 487 23.4
70% 396 23.4
60% 329 23.2
50% 270 23.0
40% 245 22.9
30% 225 22.7
20% 209 22.6
10% 193 22.5
Active Idle 176 22.4

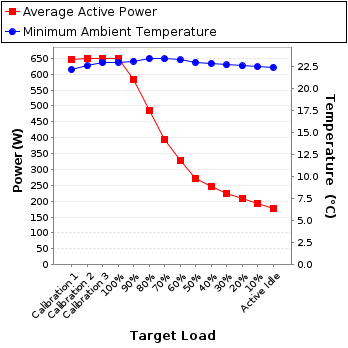

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 2.94 5.0 0.998 648 0.2%
Calibration 2 221 300.0 2.95 5.0 0.998 650 0.2%
Calibration 3 221 300.0 2.94 5.0 0.998 650 0.2%
100% 221 300.0 2.95 5.0 0.998 650 0.2%
90% 221 300.0 2.65 5.0 0.998 583 0.2%
80% 221 300.0 2.21 5.0 0.997 487 0.3%
70% 223 300.0 1.78 5.0 0.995 396 0.3%
60% 222 300.0 1.50 5.0 0.994 329 0.4%
50% 222 300.0 1.23 5.0 0.992 270 0.4%
40% 222 300.0 1.12 5.0 0.991 245 0.4%
30% 222 300.0 1.03 5.0 0.990 225 0.5%
20% 221 300.0 0.955 5.0 0.988 209 0.5%
10% 222 300.0 0.878 2.0 0.989 193 0.3%
Active Idle 224 300.0 0.798 2.0 0.987 176 0.3%

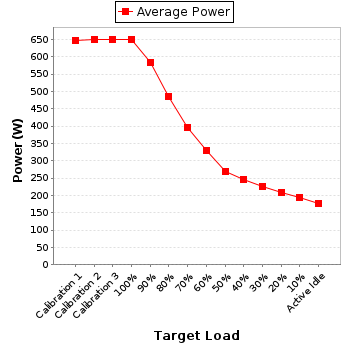

Power details for pwr1
