Inspur Corporation Inspur NF5280M5 SPECpower_ssj2008 = 5,116 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 2, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 291 24.1
Calibration 2 291 23.9
Calibration 3 289 23.8
100% 289 23.6
90% 261 23.5
80% 242 23.4
70% 212 23.3
60% 198 23.2
50% 184 23.1
40% 175 23.1
30% 161 23.0
20% 150 23.0
10% 138 22.9
Active Idle 112 22.9
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 48 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.34 5.0 0.974 291 0.4%
Calibration 2 222 300.0 1.34 5.0 0.976 291 0.4%
Calibration 3 222 300.0 1.34 5.0 0.976 289 0.4%
100% 222 300.0 1.34 5.0 0.976 289 0.4%
90% 222 300.0 1.19 5.0 0.991 261 0.4%
80% 222 300.0 1.10 5.0 0.990 242 0.4%
70% 222 300.0 0.969 5.0 0.987 212 0.5%
60% 222 300.0 0.905 5.0 0.988 198 0.5%
50% 222 300.0 0.843 5.0 0.986 184 0.5%
40% 222 300.0 0.799 5.0 0.985 175 0.6%
30% 222 300.0 0.741 5.0 0.983 161 0.6%
20% 222 300.0 0.691 5.0 0.982 150 0.6%
10% 221 300.0 0.638 2.0 0.980 138 0.4%
Active Idle 221 300.0 0.520 2.0 0.975 112 0.4%

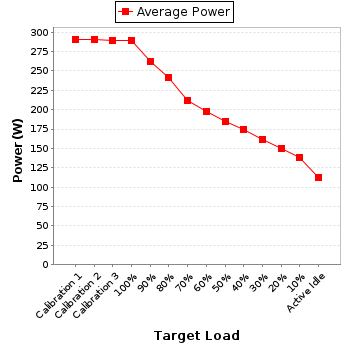

Power details for pwr1
