Inspur Corporation Inspur NF5280M5 SPECpower_ssj2008 = 6,316 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 3, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 278 23.1
Calibration 2 278 23.2
Calibration 3 278 23.2
100% 277 23.2
90% 252 23.3
80% 226 23.4
70% 197 23.7
60% 182 23.8
50% 172 23.9
40% 160 23.9
30% 147 24.2
20% 135 24.1
10% 123 24.0
Active Idle 92.5 23.8
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 56 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 222 300.0 1.29 5.0 0.969 278 0.4%
Calibration 2 222 300.0 1.30 5.0 0.965 278 0.4%
Calibration 3 222 300.0 1.30 5.0 0.965 278 0.4%
100% 222 300.0 1.29 5.0 0.965 277 0.4%
90% 222 300.0 1.15 5.0 0.987 252 0.4%
80% 222 300.0 1.03 5.0 0.988 226 0.5%
70% 222 300.0 0.902 5.0 0.987 197 0.5%
60% 222 300.0 0.834 5.0 0.986 182 0.5%
50% 222 300.0 0.787 5.0 0.984 172 0.6%
40% 222 300.0 0.731 5.0 0.983 160 0.6%
30% 222 300.0 0.676 5.0 0.981 147 0.6%
20% 222 300.0 0.620 5.0 0.979 135 0.7%
10% 222 300.0 0.565 2.0 0.976 123 0.4%
Active Idle 222 300.0 0.431 2.0 0.969 92.5 0.5%

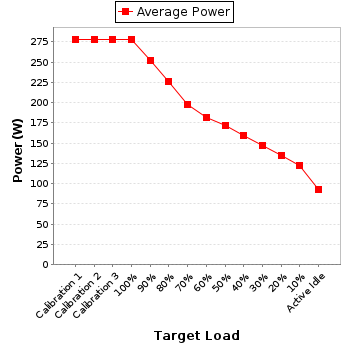

Power details for pwr1
