Inspur Corporation Inspur NF5280M5 SPECpower_ssj2008 = 5,694 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 6, 2021
Hardware Availability: May-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 262 22.9
Calibration 2 262 23.0
Calibration 3 262 23.1
100% 262 23.2
90% 233 23.2
80% 214 23.1
70% 188 23.0
60% 170 22.9
50% 159 22.8
40% 148 22.8
30% 138 22.7
20% 128 22.6
10% 118 22.6
Active Idle 93.6 22.6

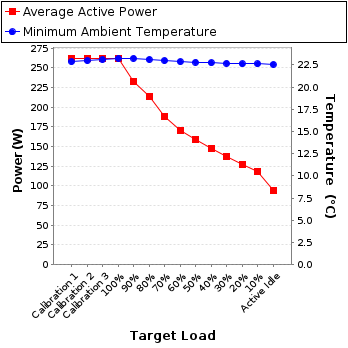

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 48 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.22 5.0 0.969 262 0.4%
Calibration 2 221 300.0 1.22 5.0 0.969 262 0.4%
Calibration 3 221 300.0 1.22 5.0 0.969 262 0.4%
100% 221 300.0 1.22 5.0 0.969 262 0.4%
90% 221 300.0 1.06 5.0 0.989 233 0.5%
80% 221 300.0 0.983 5.0 0.987 214 0.5%
70% 221 300.0 0.865 5.0 0.986 188 0.5%
60% 221 300.0 0.783 5.0 0.984 170 0.6%
50% 222 300.0 0.730 5.0 0.982 159 0.6%
40% 222 300.0 0.680 5.0 0.981 148 0.6%
30% 221 300.0 0.637 5.0 0.979 138 0.7%
20% 221 300.0 0.590 5.0 0.977 128 0.7%
10% 221 300.0 0.548 2.0 0.975 118 0.4%
Active Idle 222 300.0 0.436 2.0 0.968 93.6 0.5%
Power details for pwr1
