Inspur Corporation Inspur NF5280M5 SPECpower_ssj2008 = 5,696 overall ssj_ops/watt
Test Sponsor: Inspur Corporation SPEC License #: 3358 Test Method: Single Node
Tested By: Inspur Corporation Test Location: JINAN, CHINA Test Date: Jul 15, 2021
Hardware Availability: Apr-2021 Software Availability: Jan-2021 Publication: Aug 19, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 369 25.0
Calibration 2 370 25.0
Calibration 3 369 25.0
100% 367 25.0
90% 332 25.1
80% 289 25.2
70% 254 25.2
60% 232 25.1
50% 215 25.1
40% 198 24.9
30% 182 24.9
20% 166 24.9
10% 151 24.9
Active Idle 114 24.9

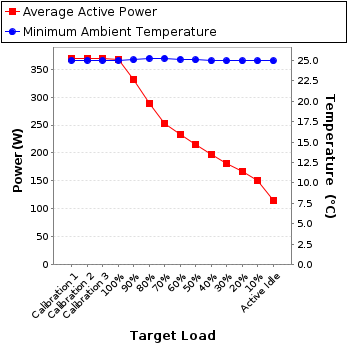

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310E
Serial Number: C2QK23023V
Connectivity: RS-232
Input Connection: Default
Metrology Institute: China National Accreditation Service for Conformity Assessment (CNAS)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: J202010202011G-0013
Date of Calibration: 22-Oct-2020
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU 0
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.70 5.0 0.979 369 0.3%
Calibration 2 221 300.0 1.71 5.0 0.978 370 0.3%
Calibration 3 222 300.0 1.70 5.0 0.978 369 0.3%
100% 222 300.0 1.69 5.0 0.978 367 0.3%
90% 222 300.0 1.53 5.0 0.977 332 0.4%
80% 222 300.0 1.34 5.0 0.972 289 0.4%
70% 222 300.0 1.18 5.0 0.966 254 0.4%
60% 223 300.0 1.08 5.0 0.963 232 0.5%
50% 223 300.0 1.01 5.0 0.960 215 0.5%
40% 223 300.0 0.930 5.0 0.956 198 0.5%
30% 223 300.0 0.856 5.0 0.951 182 0.6%
20% 223 300.0 0.785 5.0 0.947 166 0.6%
10% 224 300.0 0.718 2.0 0.940 151 0.4%
Active Idle 224 300.0 0.558 2.0 0.917 114 0.4%

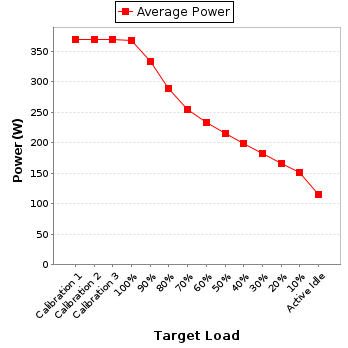

Power details for pwr1
