SPECpower_ssj2008 Host 'sles15sp2-2' Performance Report

SPECpower_ssj2008

Host 'sles15sp2-2' Performance Report

Fujitsu FUJITSU Server PRIMERGY CX2560 M6			ssj_ops@100% = 4,978,215 ssj_ops@100% per JVM = 1,244,554
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Multi Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Aug 6, 2021
Hardware Availability:	Sep-2021	Software Availability:	Dec-2020	Publication:	Sep 1, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY CX2560 M6
Form Factor:	Blade
CPU Name:	Intel Xeon Gold 5318Y
CPU Characteristics:	24-Core, 2.10GHz, 36MB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	48 cores, 2 chips, 24 cores/chip
Hardware Threads:	96 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	36 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16 GB 2Rx8 PC4-3200Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R populated
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x SSD M.2 240GB, S26361-F5787-E240
Disk Controller:	Integrated sSATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel(R) 10Gb X550T Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-24.43-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.9+7-LTS, mixed mode)
JVM Command-line Options:	-server -Xmn20000m -Xms22000m -Xmx22000m -XX:+UseHugeTLBFS -XX:+UseLargePages -XX:+UseTransparentHugePages -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchInstr=0 -XX:AllocatePrefetchLines=4 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:ParallelGCThreads=8 -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:+UseParallelOldGC -XX:FreqInlineSize=2500 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:+UseBiasedLocking
JVM Affinity:	chrt -r 1 taskset -c [(0,1,2,3,4,5,6,7,8,9,10,11,48,49,50,51,52,53,54,55,56,57,58), (12,13,14,15,16,17,18,19,20,21,22,23,60,61,62,63,64,65,66,67,68,69,70), (24,25,26,27,28,29,30,31,32,33,34,35,72,73,74,75,76,77,78,79,80,81,82), (36,37,38,39,40,41,42,43,44,45,46,47,84,85,86,87,88,89,90,91,92,93,94)] numactl --membind=[0-3]
JVM Instances:	4
JVM Initial Heap (MB):	22000
JVM Maximum Heap (MB):	22000
JVM Address Bits:	64
Boot Firmware Version:	R1.23.0
Management Firmware Version:	3.26P
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

kernel parameter: pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=passive
Benchmark started via ssh.
modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 92 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo always > /sys/kernel/mm/transparent_hugepage/enabled
cpupower frequency-set -u 2600MHz
sysctl -w kernel.nmi_watchdog=0
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes> The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

SPECpower_ssj.props input.load_level.number_warehouses set to 96 due to a known inconsistency in processor reporting with this Java version.

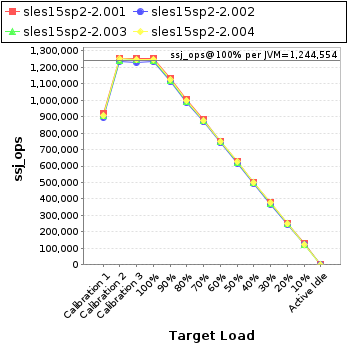

JVM 'sles15sp2-2.001' Scores:

See the JVM Instance Performance Report for additional details.

JVM 'sles15sp2-2.002' Scores:

See the JVM Instance Performance Report for additional details.

JVM 'sles15sp2-2.003' Scores:

See the JVM Instance Performance Report for additional details.

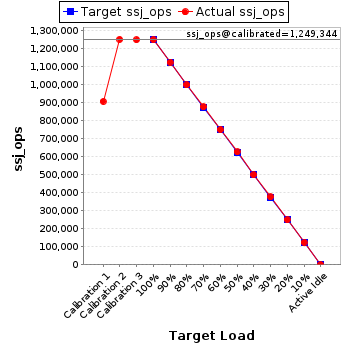

JVM 'sles15sp2-2.004' Scores:

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
