Quanta Cloud Technology QuantaGrid D43K-1U SPECpower_ssj2008 = 21,949 overall ssj_ops/watt
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Single Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Aug 9, 2021
Hardware Availability: Mar-2021 Software Availability: Jul-2019 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 503 21.9
Calibration 2 474 21.8
Calibration 3 477 21.8
100% 453 21.8
90% 381 21.8
80% 342 21.7
70% 321 21.6
60% 300 21.6
50% 281 21.6
40% 260 21.6
30% 240 21.5
20% 218 21.5
10% 192 21.4
Active Idle 78.5 21.2
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT310
Serial Number: C2PM12064V
Connectivity: USB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omni Calibration Laboratory,Taiwan
Calibration Label: ECR2114875
Date of Calibration: 4-May-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/T
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 2.32 5.0 0.992 503 0.4%
Calibration 2 219 300.0 2.18 5.0 0.992 474 0.4%
Calibration 3 219 300.0 2.20 5.0 0.992 477 0.4%
100% 219 300.0 2.09 5.0 0.992 453 0.5%
90% 219 300.0 1.76 5.0 0.988 381 0.5%
80% 219 300.0 1.58 5.0 0.986 342 0.6%
70% 219 300.0 1.49 5.0 0.984 321 0.6%
60% 219 300.0 1.40 5.0 0.982 300 0.6%
50% 220 300.0 1.30 2.0 0.979 281 0.4%
40% 220 300.0 1.21 2.0 0.976 260 0.4%
30% 220 300.0 1.12 2.0 0.972 240 0.4%
20% 220 300.0 1.03 2.0 0.967 218 0.4%
10% 219 300.0 0.914 1.0 0.958 192 0.3%
Active Idle 220 300.0 0.448 1.0 0.799 78.5 0.6%

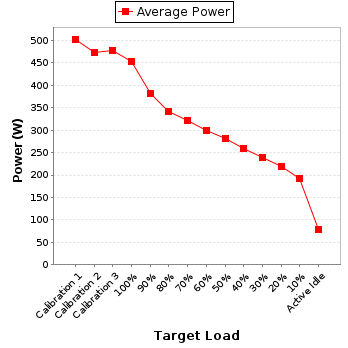

Power details for pwr1
