XSLAB V-Raptor SQ ssj_ops@100% = 22,089
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     21,778
Calibration 2     22,594
Calibration 3     22,493
ssj_ops@calibrated=22,544
100% 98.0% 22,544 22,089
90% 89.5% 20,289 20,176
80% 80.9% 18,035 18,229
70% 71.5% 15,780 16,110
60% 57.7% 13,526 13,016
50% 48.7% 11,272 10,980
40% 41.3% 9,017 9,306
30% 30.4% 6,763 6,850
20% 21.1% 4,509 4,755
10% 9.4% 2,254 2,108
Active Idle   0 0

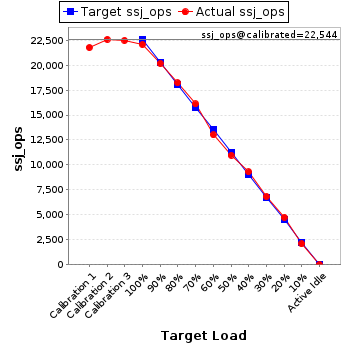

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 1,583,895 498
Payment 1,583,889
Order Status 158,388
Delivery 158,388
Stock Level 158,392
Customer Report 1,583,905
Calibration 2 New Order 1,643,220 498
Payment 1,643,216
Order Status 164,323
Delivery 164,324
Stock Level 164,323
Customer Report 1,643,227
Calibration 3 New Order 1,635,853 498
Payment 1,635,852
Order Status 163,587
Delivery 163,585
Stock Level 163,586
Customer Report 1,635,866
100% 98.0% New Order 1,606,548 498
Payment 1,606,549
Order Status 160,653
Delivery 160,653
Stock Level 160,654
Customer Report 1,606,553
90% 89.5% New Order 1,467,358 498
Payment 1,467,361
Order Status 146,736
Delivery 146,733
Stock Level 146,735
Customer Report 1,467,363
80% 80.9% New Order 1,325,739 498
Payment 1,325,744
Order Status 132,576
Delivery 132,574
Stock Level 132,574
Customer Report 1,325,740
70% 71.5% New Order 1,171,665 498
Payment 1,171,672
Order Status 117,166
Delivery 117,165
Stock Level 117,169
Customer Report 1,171,668
60% 57.7% New Order 946,690 498
Payment 946,687
Order Status 94,669
Delivery 94,669
Stock Level 94,668
Customer Report 946,683
50% 48.7% New Order 798,516 498
Payment 798,523
Order Status 79,851
Delivery 79,852
Stock Level 79,851
Customer Report 798,513
40% 41.3% New Order 676,807 498
Payment 676,820
Order Status 67,681
Delivery 67,681
Stock Level 67,682
Customer Report 676,811
30% 30.4% New Order 498,198 498
Payment 498,203
Order Status 49,822
Delivery 49,822
Stock Level 49,823
Customer Report 498,211
20% 21.1% New Order 345,817 497
Payment 345,822
Order Status 34,584
Delivery 34,583
Stock Level 34,581
Customer Report 345,812
10% 9.4% New Order 153,329 492
Payment 153,333
Order Status 15,332
Delivery 15,334
Stock Level 15,334
Customer Report 153,338
Active Idle New Order 0 492
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
