XSLAB V-Raptor SQ ssj_ops@100% = 22,481
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,582
Calibration 2     23,116
Calibration 3     22,688
ssj_ops@calibrated=22,902
100% 98.2% 22,902 22,481
90% 90.6% 20,612 20,756
80% 81.1% 18,321 18,568
70% 69.5% 16,031 15,920
60% 61.8% 13,741 14,147
50% 50.3% 11,451 11,521
40% 40.2% 9,161 9,203
30% 30.7% 6,871 7,020
20% 21.4% 4,580 4,903
10% 9.7% 2,290 2,217
Active Idle   0 0

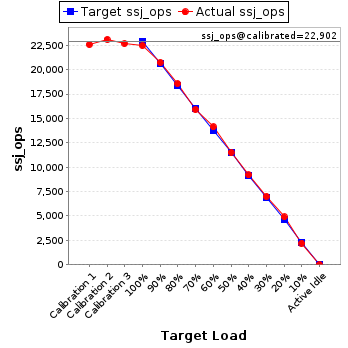

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 1,642,409 498
Payment 1,642,399
Order Status 164,239
Delivery 164,237
Stock Level 164,240
Customer Report 1,642,402
Calibration 2 New Order 1,681,152 498
Payment 1,681,144
Order Status 168,116
Delivery 168,116
Stock Level 168,116
Customer Report 1,681,142
Calibration 3 New Order 1,650,049 498
Payment 1,650,049
Order Status 165,003
Delivery 165,005
Stock Level 165,005
Customer Report 1,650,046
100% 98.2% New Order 1,635,030 498
Payment 1,635,030
Order Status 163,502
Delivery 163,502
Stock Level 163,501
Customer Report 1,635,027
90% 90.6% New Order 1,509,547 498
Payment 1,509,536
Order Status 150,956
Delivery 150,956
Stock Level 150,953
Customer Report 1,509,540
80% 81.1% New Order 1,350,435 498
Payment 1,350,436
Order Status 135,045
Delivery 135,044
Stock Level 135,043
Customer Report 1,350,431
70% 69.5% New Order 1,157,828 498
Payment 1,157,819
Order Status 115,782
Delivery 115,783
Stock Level 115,783
Customer Report 1,157,830
60% 61.8% New Order 1,028,859 498
Payment 1,028,858
Order Status 102,885
Delivery 102,886
Stock Level 102,886
Customer Report 1,028,858
50% 50.3% New Order 837,895 498
Payment 837,885
Order Status 83,793
Delivery 83,788
Stock Level 83,787
Customer Report 837,894
40% 40.2% New Order 669,362 498
Payment 669,375
Order Status 66,935
Delivery 66,936
Stock Level 66,936
Customer Report 669,357
30% 30.7% New Order 510,514 498
Payment 510,511
Order Status 51,052
Delivery 51,051
Stock Level 51,051
Customer Report 510,516
20% 21.4% New Order 356,610 498
Payment 356,609
Order Status 35,661
Delivery 35,662
Stock Level 35,662
Customer Report 356,601
10% 9.7% New Order 161,216 498
Payment 161,211
Order Status 16,120
Delivery 16,122
Stock Level 16,123
Customer Report 161,208
Active Idle New Order 0 498
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
