Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 87,400
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,461
Calibration 2     87,857
Calibration 3     87,106
ssj_ops@calibrated=87,482
100% 99.9% 87,482 87,400
90% 89.4% 78,733 78,210
80% 79.6% 69,985 69,649
70% 70.2% 61,237 61,456
60% 60.1% 52,489 52,567
50% 50.5% 43,741 44,168
40% 40.4% 34,993 35,362
30% 30.1% 26,244 26,371
20% 19.6% 17,496 17,154
10% 9.5% 8,748 8,354
Active Idle   0 0

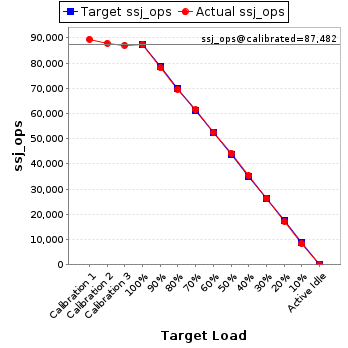

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,506,370 1,494
Payment 6,506,370
Order Status 650,637
Delivery 650,637
Stock Level 650,637
Customer Report 6,506,367
Calibration 2 New Order 6,389,627 1,494
Payment 6,389,627
Order Status 638,963
Delivery 638,962
Stock Level 638,962
Customer Report 6,389,624
Calibration 3 New Order 6,335,009 1,494
Payment 6,335,010
Order Status 633,501
Delivery 633,499
Stock Level 633,501
Customer Report 6,335,008
100% 99.9% New Order 6,356,354 1,494
Payment 6,356,346
Order Status 635,636
Delivery 635,634
Stock Level 635,634
Customer Report 6,356,348
90% 89.4% New Order 5,688,008 1,494
Payment 5,688,011
Order Status 568,802
Delivery 568,802
Stock Level 568,801
Customer Report 5,688,013
80% 79.6% New Order 5,065,427 1,494
Payment 5,065,426
Order Status 506,542
Delivery 506,542
Stock Level 506,543
Customer Report 5,065,426
70% 70.2% New Order 4,469,514 1,494
Payment 4,469,513
Order Status 446,952
Delivery 446,951
Stock Level 446,952
Customer Report 4,469,514
60% 60.1% New Order 3,823,031 1,494
Payment 3,823,031
Order Status 382,303
Delivery 382,303
Stock Level 382,302
Customer Report 3,823,030
50% 50.5% New Order 3,212,214 1,494
Payment 3,212,211
Order Status 321,222
Delivery 321,220
Stock Level 321,221
Customer Report 3,212,210
40% 40.4% New Order 2,571,818 1,494
Payment 2,571,818
Order Status 257,182
Delivery 257,181
Stock Level 257,182
Customer Report 2,571,819
30% 30.1% New Order 1,917,923 1,494
Payment 1,917,914
Order Status 191,791
Delivery 191,793
Stock Level 191,793
Customer Report 1,917,920
20% 19.6% New Order 1,247,574 1,494
Payment 1,247,581
Order Status 124,757
Delivery 124,758
Stock Level 124,757
Customer Report 1,247,573
10% 9.5% New Order 607,574 1,494
Payment 607,573
Order Status 60,758
Delivery 60,758
Stock Level 60,757
Customer Report 607,580
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
