Supermicro SuperServer ARS-221GL-NR | ssj_ops@100% = 85,373 | ||||
Test Sponsor: | Infobell IT Solutions Pvt. Ltd. | SPEC License #: | 6723 | Test Method: | Single Node |
Tested By: | Infobell IT Solutions Pvt. Ltd. | Test Location: | San Jose, CA, USA | Test Date: | May 3, 2024 |
Hardware Availability: | May-2024 | Software Availability: | Feb-2024 | Publication: | Jul 10, 2024 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

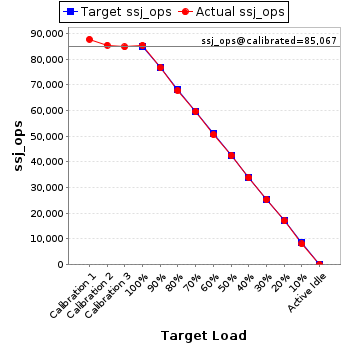

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 87,725 | ||
Calibration 2 | 85,420 | ||
Calibration 3 | 84,714 | ||
ssj_ops@calibrated=85,067 | |||
100% | 100.4% | 85,067 | 85,373 |
90% | 90.1% | 76,560 | 76,616 |
80% | 79.6% | 68,054 | 67,731 |
70% | 70.1% | 59,547 | 59,612 |
60% | 59.4% | 51,040 | 50,558 |
50% | 50.0% | 42,534 | 42,499 |
40% | 39.8% | 34,027 | 33,834 |
30% | 29.7% | 25,520 | 25,300 |
20% | 20.0% | 17,013 | 17,012 |
10% | 9.5% | 8,507 | 8,070 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Supermicro |
Model: | SuperServer ARS-221GL-NR |
Form Factor: | 1U |
CPU Name: | Grace CPU Superchip |
CPU Characteristics: | 144-Core, 3.4 GHz, 228 MB L3 Cache |
CPU Frequency (MHz): | 3400 |
CPU(s) Enabled: | 144 cores, 1 chip, 144 cores/chip |
Hardware Threads: | 144 (1 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 228 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 480 |
# and size of DIMM: | 0 x 0 GB |
Memory Details: | 2 x 240 GB on chip |
Power Supply Quantity and Rating (W): | 2 x 1800 |
Power Supply Details: | P/N: PWS-2K09F-1R |
Disk Drive: | 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07) |
Disk Controller: | Integrated controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01) |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Ubuntu 22.04 |
OS Version: | Kernel 5.15.0-33-generic |
Filesystem: | xfs |
JVM Vendor: | OpenJDK |
JVM Version: | OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing) |
JVM Command-line Options: | -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap |
JVM Affinity: | for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc } |
JVM Instances: | 144 |
JVM Initial Heap (MB): | 1500 |
JVM Maximum Heap (MB): | 1500 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 1.1a |
Management Firmware Version: | 01.02.26 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 6,380,095 | 1,494 | |
Payment | 6,380,094 | |||
Order Status | 638,009 | |||
Delivery | 638,009 | |||
Stock Level | 638,010 | |||
Customer Report | 6,380,094 | |||
Calibration 2 | New Order | 6,212,392 | 1,494 | |
Payment | 6,212,392 | |||
Order Status | 621,239 | |||
Delivery | 621,240 | |||
Stock Level | 621,239 | |||
Customer Report | 6,212,393 | |||
Calibration 3 | New Order | 6,161,046 | 1,494 | |
Payment | 6,161,050 | |||
Order Status | 616,105 | |||
Delivery | 616,104 | |||
Stock Level | 616,105 | |||
Customer Report | 6,161,049 | |||
100% | 100.4% | New Order | 6,208,983 | 1,494 |
Payment | 6,208,982 | |||
Order Status | 620,898 | |||
Delivery | 620,898 | |||
Stock Level | 620,898 | |||
Customer Report | 6,208,981 | |||
90% | 90.1% | New Order | 5,572,103 | 1,494 |
Payment | 5,572,106 | |||
Order Status | 557,211 | |||
Delivery | 557,211 | |||
Stock Level | 557,211 | |||
Customer Report | 5,572,100 | |||
80% | 79.6% | New Order | 4,925,944 | 1,494 |
Payment | 4,925,941 | |||
Order Status | 492,593 | |||
Delivery | 492,594 | |||
Stock Level | 492,594 | |||
Customer Report | 4,925,943 | |||
70% | 70.1% | New Order | 4,335,455 | 1,494 |
Payment | 4,335,456 | |||
Order Status | 433,545 | |||
Delivery | 433,545 | |||
Stock Level | 433,545 | |||
Customer Report | 4,335,454 | |||
60% | 59.4% | New Order | 3,676,967 | 1,494 |
Payment | 3,676,968 | |||
Order Status | 367,698 | |||
Delivery | 367,698 | |||
Stock Level | 367,697 | |||
Customer Report | 3,676,972 | |||
50% | 50.0% | New Order | 3,090,865 | 1,494 |
Payment | 3,090,864 | |||
Order Status | 309,087 | |||
Delivery | 309,087 | |||
Stock Level | 309,087 | |||
Customer Report | 3,090,868 | |||
40% | 39.8% | New Order | 2,460,676 | 1,494 |
Payment | 2,460,674 | |||
Order Status | 246,068 | |||
Delivery | 246,067 | |||
Stock Level | 246,067 | |||
Customer Report | 2,460,674 | |||
30% | 29.7% | New Order | 1,839,999 | 1,494 |
Payment | 1,840,002 | |||
Order Status | 184,000 | |||
Delivery | 184,000 | |||
Stock Level | 184,000 | |||
Customer Report | 1,839,999 | |||
20% | 20.0% | New Order | 1,237,267 | 1,494 |
Payment | 1,237,266 | |||
Order Status | 123,727 | |||
Delivery | 123,726 | |||
Stock Level | 123,727 | |||
Customer Report | 1,237,264 | |||
10% | 9.5% | New Order | 586,922 | 1,494 |
Payment | 586,926 | |||
Order Status | 58,692 | |||
Delivery | 58,693 | |||
Stock Level | 58,692 | |||
Customer Report | 586,927 | |||
Active Idle | New Order | 0 | 1,494 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
