Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 85,813
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,395
Calibration 2     86,268
Calibration 3     85,660
ssj_ops@calibrated=85,964
100% 99.8% 85,964 85,813
90% 89.8% 77,368 77,188
80% 79.4% 68,771 68,241
70% 70.2% 60,175 60,345
60% 60.0% 51,578 51,566
50% 50.3% 42,982 43,233
40% 41.2% 34,386 35,448
30% 29.8% 25,789 25,605
20% 20.8% 17,193 17,842
10% 10.1% 8,596 8,662
Active Idle   0 0

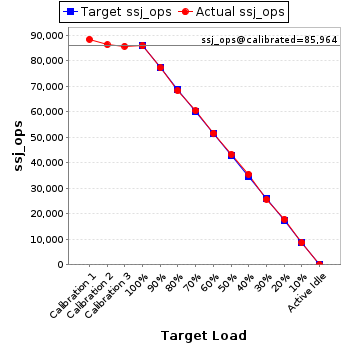

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,428,817 1,494
Payment 6,428,814
Order Status 642,882
Delivery 642,882
Stock Level 642,883
Customer Report 6,428,812
Calibration 2 New Order 6,274,063 1,494
Payment 6,274,061
Order Status 627,407
Delivery 627,407
Stock Level 627,406
Customer Report 6,274,067
Calibration 3 New Order 6,229,829 1,494
Payment 6,229,831
Order Status 622,984
Delivery 622,983
Stock Level 622,983
Customer Report 6,229,832
100% 99.8% New Order 6,241,007 1,494
Payment 6,241,003
Order Status 624,100
Delivery 624,100
Stock Level 624,101
Customer Report 6,241,003
90% 89.8% New Order 5,613,704 1,494
Payment 5,613,704
Order Status 561,370
Delivery 561,371
Stock Level 561,370
Customer Report 5,613,701
80% 79.4% New Order 4,963,030 1,494
Payment 4,963,031
Order Status 496,303
Delivery 496,303
Stock Level 496,303
Customer Report 4,963,030
70% 70.2% New Order 4,388,718 1,494
Payment 4,388,715
Order Status 438,871
Delivery 438,872
Stock Level 438,871
Customer Report 4,388,714
60% 60.0% New Order 3,750,258 1,494
Payment 3,750,256
Order Status 375,026
Delivery 375,026
Stock Level 375,026
Customer Report 3,750,259
50% 50.3% New Order 3,144,208 1,494
Payment 3,144,208
Order Status 314,421
Delivery 314,421
Stock Level 314,421
Customer Report 3,144,206
40% 41.2% New Order 2,578,065 1,494
Payment 2,578,061
Order Status 257,807
Delivery 257,807
Stock Level 257,806
Customer Report 2,578,063
30% 29.8% New Order 1,862,206 1,494
Payment 1,862,214
Order Status 186,222
Delivery 186,221
Stock Level 186,222
Customer Report 1,862,211
20% 20.8% New Order 1,297,675 1,494
Payment 1,297,675
Order Status 129,767
Delivery 129,767
Stock Level 129,767
Customer Report 1,297,675
10% 10.1% New Order 629,998 1,494
Payment 629,999
Order Status 63,000
Delivery 63,001
Stock Level 63,001
Customer Report 630,001
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
