Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 88,815
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,767
Calibration 2     89,790
Calibration 3     88,225
ssj_ops@calibrated=89,007
100% 99.8% 89,007 88,815
90% 89.2% 80,107 79,396
80% 80.0% 71,206 71,234
70% 70.4% 62,305 62,655
60% 60.8% 53,404 54,100
50% 49.4% 44,504 43,938
40% 39.4% 35,603 35,077
30% 29.6% 26,702 26,388
20% 20.1% 17,801 17,933
10% 10.2% 8,901 9,108
Active Idle   0 0

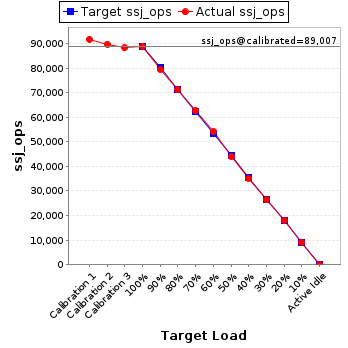

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,674,076 1,494
Payment 6,674,080
Order Status 667,407
Delivery 667,407
Stock Level 667,408
Customer Report 6,674,076
Calibration 2 New Order 6,530,173 1,494
Payment 6,530,174
Order Status 653,017
Delivery 653,019
Stock Level 653,017
Customer Report 6,530,172
Calibration 3 New Order 6,416,387 1,494
Payment 6,416,388
Order Status 641,639
Delivery 641,639
Stock Level 641,639
Customer Report 6,416,388
100% 99.8% New Order 6,459,329 1,494
Payment 6,459,329
Order Status 645,933
Delivery 645,933
Stock Level 645,933
Customer Report 6,459,331
90% 89.2% New Order 5,774,303 1,494
Payment 5,774,300
Order Status 577,430
Delivery 577,431
Stock Level 577,430
Customer Report 5,774,301
80% 80.0% New Order 5,180,671 1,494
Payment 5,180,671
Order Status 518,067
Delivery 518,067
Stock Level 518,068
Customer Report 5,180,668
70% 70.4% New Order 4,556,699 1,494
Payment 4,556,703
Order Status 455,670
Delivery 455,671
Stock Level 455,670
Customer Report 4,556,703
60% 60.8% New Order 3,934,540 1,494
Payment 3,934,540
Order Status 393,454
Delivery 393,454
Stock Level 393,454
Customer Report 3,934,541
50% 49.4% New Order 3,195,484 1,494
Payment 3,195,484
Order Status 319,548
Delivery 319,548
Stock Level 319,549
Customer Report 3,195,481
40% 39.4% New Order 2,551,042 1,494
Payment 2,551,037
Order Status 255,104
Delivery 255,104
Stock Level 255,104
Customer Report 2,551,036
30% 29.6% New Order 1,919,147 1,494
Payment 1,919,150
Order Status 191,915
Delivery 191,914
Stock Level 191,915
Customer Report 1,919,149
20% 20.1% New Order 1,304,250 1,494
Payment 1,304,248
Order Status 130,426
Delivery 130,425
Stock Level 130,426
Customer Report 1,304,253
10% 10.2% New Order 662,423 1,494
Payment 662,421
Order Status 66,242
Delivery 66,243
Stock Level 66,242
Customer Report 662,419
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
