Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 87,070
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,520
Calibration 2     86,788
Calibration 3     86,971
ssj_ops@calibrated=86,880
100% 100.2% 86,880 87,070
90% 89.4% 78,192 77,691
80% 80.1% 69,504 69,632
70% 68.8% 60,816 59,757
60% 60.4% 52,128 52,503
50% 50.0% 43,440 43,412
40% 39.2% 34,752 34,021
30% 29.5% 26,064 25,610
20% 20.0% 17,376 17,346
10% 9.8% 8,688 8,529
Active Idle   0 0

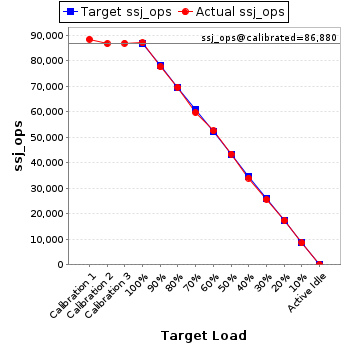

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,437,938 1,494
Payment 6,437,936
Order Status 643,794
Delivery 643,794
Stock Level 643,793
Customer Report 6,437,939
Calibration 2 New Order 6,311,900 1,494
Payment 6,311,901
Order Status 631,190
Delivery 631,190
Stock Level 631,189
Customer Report 6,311,898
Calibration 3 New Order 6,325,162 1,494
Payment 6,325,166
Order Status 632,516
Delivery 632,517
Stock Level 632,517
Customer Report 6,325,161
100% 100.2% New Order 6,332,358 1,494
Payment 6,332,361
Order Status 633,236
Delivery 633,235
Stock Level 633,235
Customer Report 6,332,356
90% 89.4% New Order 5,650,282 1,494
Payment 5,650,281
Order Status 565,029
Delivery 565,027
Stock Level 565,029
Customer Report 5,650,284
80% 80.1% New Order 5,064,166 1,494
Payment 5,064,166
Order Status 506,416
Delivery 506,417
Stock Level 506,416
Customer Report 5,064,167
70% 68.8% New Order 4,345,961 1,494
Payment 4,345,956
Order Status 434,595
Delivery 434,596
Stock Level 434,596
Customer Report 4,345,962
60% 60.4% New Order 3,818,395 1,494
Payment 3,818,398
Order Status 381,840
Delivery 381,841
Stock Level 381,839
Customer Report 3,818,393
50% 50.0% New Order 3,157,240 1,494
Payment 3,157,237
Order Status 315,724
Delivery 315,724
Stock Level 315,724
Customer Report 3,157,237
40% 39.2% New Order 2,474,247 1,494
Payment 2,474,238
Order Status 247,424
Delivery 247,423
Stock Level 247,425
Customer Report 2,474,243
30% 29.5% New Order 1,862,589 1,494
Payment 1,862,590
Order Status 186,259
Delivery 186,259
Stock Level 186,258
Customer Report 1,862,592
20% 20.0% New Order 1,261,516 1,494
Payment 1,261,512
Order Status 126,151
Delivery 126,151
Stock Level 126,153
Customer Report 1,261,517
10% 9.8% New Order 620,302 1,494
Payment 620,302
Order Status 62,030
Delivery 62,030
Stock Level 62,030
Customer Report 620,306
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
