Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 85,029
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,118
Calibration 2     85,726
Calibration 3     85,482
ssj_ops@calibrated=85,604
100% 99.3% 85,604 85,029
90% 89.2% 77,043 76,391
80% 78.8% 68,483 67,469
70% 68.6% 59,923 58,709
60% 60.6% 51,362 51,903
50% 49.5% 42,802 42,383
40% 40.3% 34,242 34,496
30% 29.8% 25,681 25,512
20% 20.6% 17,121 17,618
10% 10.0% 8,560 8,548
Active Idle   0 0

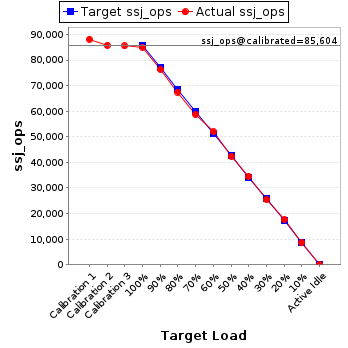

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,408,677 1,494
Payment 6,408,672
Order Status 640,868
Delivery 640,866
Stock Level 640,867
Customer Report 6,408,670
Calibration 2 New Order 6,234,597 1,494
Payment 6,234,605
Order Status 623,461
Delivery 623,459
Stock Level 623,460
Customer Report 6,234,601
Calibration 3 New Order 6,216,893 1,494
Payment 6,216,893
Order Status 621,689
Delivery 621,689
Stock Level 621,690
Customer Report 6,216,895
100% 99.3% New Order 6,183,912 1,494
Payment 6,183,913
Order Status 618,391
Delivery 618,391
Stock Level 618,391
Customer Report 6,183,912
90% 89.2% New Order 5,555,722 1,494
Payment 5,555,724
Order Status 555,573
Delivery 555,573
Stock Level 555,573
Customer Report 5,555,721
80% 78.8% New Order 4,906,868 1,494
Payment 4,906,868
Order Status 490,686
Delivery 490,688
Stock Level 490,687
Customer Report 4,906,864
70% 68.6% New Order 4,269,739 1,494
Payment 4,269,734
Order Status 426,973
Delivery 426,974
Stock Level 426,973
Customer Report 4,269,742
60% 60.6% New Order 3,774,747 1,494
Payment 3,774,747
Order Status 377,474
Delivery 377,474
Stock Level 377,475
Customer Report 3,774,746
50% 49.5% New Order 3,082,409 1,494
Payment 3,082,408
Order Status 308,240
Delivery 308,241
Stock Level 308,240
Customer Report 3,082,407
40% 40.3% New Order 2,508,788 1,494
Payment 2,508,789
Order Status 250,879
Delivery 250,879
Stock Level 250,879
Customer Report 2,508,786
30% 29.8% New Order 1,855,448 1,494
Payment 1,855,450
Order Status 185,544
Delivery 185,544
Stock Level 185,545
Customer Report 1,855,445
20% 20.6% New Order 1,281,281 1,494
Payment 1,281,277
Order Status 128,128
Delivery 128,128
Stock Level 128,129
Customer Report 1,281,276
10% 10.0% New Order 621,701 1,494
Payment 621,701
Order Status 62,169
Delivery 62,171
Stock Level 62,170
Customer Report 621,701
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
