Supermicro SuperServer ARS-221GL-NR ssj_ops@100% = 86,532
Test Sponsor: Infobell IT Solutions Pvt. Ltd. SPEC License #: 6723 Test Method: Single Node
Tested By: Infobell IT Solutions Pvt. Ltd. Test Location: San Jose, CA, USA Test Date: May 3, 2024
Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Jul 10, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,820
Calibration 2     87,076
Calibration 3     86,195
ssj_ops@calibrated=86,635
100% 99.9% 86,635 86,532
90% 89.4% 77,972 77,477
80% 80.3% 69,308 69,530
70% 69.2% 60,645 59,981
60% 60.3% 51,981 52,208
50% 50.3% 43,318 43,540
40% 40.1% 34,654 34,709
30% 29.7% 25,991 25,704
20% 19.9% 17,327 17,279
10% 10.1% 8,664 8,759
Active Idle   0 0

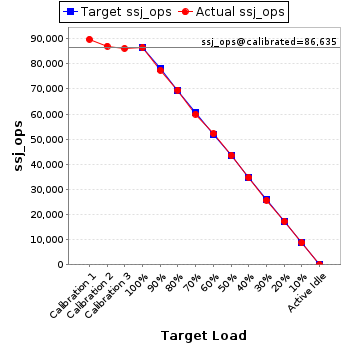

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: SuperServer ARS-221GL-NR
Form Factor: 1U
CPU Name: Grace CPU Superchip
CPU Characteristics: 144-Core, 3.4 GHz, 228 MB L3 Cache
CPU Frequency (MHz): 3400
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 228 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 480
# and size of DIMM: 0 x 0 GB
Memory Details: 2 x 240 GB on chip
Power Supply Quantity and Rating (W): 2 x 1800
Power Supply Details: P/N: PWS-2K09F-1R
Disk Drive: 2 x 3.84TB E1.S NVMe SSD (SAMSUNG MZTL23T8HCLS-00A07)
Disk Controller: Integrated controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with Intel Corporation Ethernet Controller X550 (rev 01)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Ubuntu 22.04
OS Version: Kernel 5.15.0-33-generic
Filesystem: xfs
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM (build 17.0.2+8-86, mixed mode, sharing)
JVM Command-line Options: -server -Xms1500m -Xmx1500m -Xmn1300m -XX:NewRatio=2 -XX:+UseParallelGC -XX:TargetSurvivorRatio=90 -XX:FreqInlineSize=2000 -XX:InitialTenuringThreshold=12 -XX:MaxInlineSize=35 -XX:SurvivorRatio=30 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=1 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseTransparentHugePages -XX:+UseBiasedLocking -XX:InlineSmallCode=1000 -XX:AutoBoxCacheMax=20000 -XX:+OptimizeFill -XX:+AggressiveHeap
JVM Affinity: for each i=1-144 {numactl --physcpubind=$(i-1) --localalloc }
JVM Instances: 144
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.1a
Management Firmware Version: 01.02.26
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,532,433 1,494
Payment 6,532,432
Order Status 653,243
Delivery 653,243
Stock Level 653,244
Customer Report 6,532,431
Calibration 2 New Order 6,332,831 1,494
Payment 6,332,827
Order Status 633,282
Delivery 633,283
Stock Level 633,283
Customer Report 6,332,834
Calibration 3 New Order 6,268,721 1,494
Payment 6,268,723
Order Status 626,872
Delivery 626,872
Stock Level 626,872
Customer Report 6,268,719
100% 99.9% New Order 6,293,243 1,494
Payment 6,293,241
Order Status 629,323
Delivery 629,324
Stock Level 629,325
Customer Report 6,293,242
90% 89.4% New Order 5,634,721 1,494
Payment 5,634,723
Order Status 563,471
Delivery 563,472
Stock Level 563,473
Customer Report 5,634,722
80% 80.3% New Order 5,056,758 1,494
Payment 5,056,755
Order Status 505,675
Delivery 505,676
Stock Level 505,675
Customer Report 5,056,755
70% 69.2% New Order 4,362,275 1,494
Payment 4,362,278
Order Status 436,227
Delivery 436,228
Stock Level 436,228
Customer Report 4,362,273
60% 60.3% New Order 3,796,970 1,494
Payment 3,796,974
Order Status 379,697
Delivery 379,698
Stock Level 379,697
Customer Report 3,796,975
50% 50.3% New Order 3,166,577 1,494
Payment 3,166,578
Order Status 316,657
Delivery 316,657
Stock Level 316,657
Customer Report 3,166,577
40% 40.1% New Order 2,524,284 1,494
Payment 2,524,283
Order Status 252,428
Delivery 252,429
Stock Level 252,428
Customer Report 2,524,286
30% 29.7% New Order 1,869,394 1,494
Payment 1,869,395
Order Status 186,939
Delivery 186,939
Stock Level 186,939
Customer Report 1,869,394
20% 19.9% New Order 1,256,640 1,494
Payment 1,256,643
Order Status 125,664
Delivery 125,664
Stock Level 125,665
Customer Report 1,256,641
10% 10.1% New Order 637,018 1,494
Payment 637,021
Order Status 63,702
Delivery 63,701
Stock Level 63,702
Customer Report 637,022
Active Idle New Order 0 1,494
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
