Supermicro System SYS-112C-TN SPECpower_ssj2008 = 19,489 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Jul 28, 2024
Hardware Availability: Jun-2024 Software Availability: Jun-2024 Publication: Aug 13, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 10,101,531 427 23,680
90% 90.1% 9,148,571 398 22,976
80% 80.1% 8,133,079 343 23,705
70% 70.0% 7,111,562 314 22,620
60% 60.0% 6,092,433 286 21,281
50% 50.0% 5,079,366 259 19,643
40% 40.0% 4,061,126 231 17,599
30% 30.0% 3,049,195 202 15,129
20% 20.0% 2,030,215 165 12,298
10% 10.0% 1,018,308 134 7,596
Active Idle 0 106 0
∑ssj_ops / ∑power = 19,489

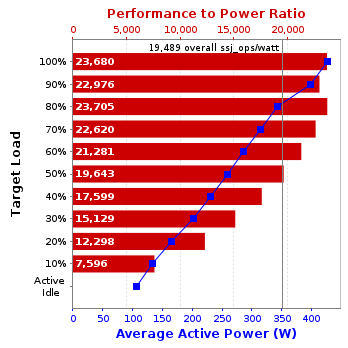

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: System SYS-112C-TN
Form Factor: 1U
CPU Name: Intel(R) Xeon(R) Gold 6780E, 2.20GHz
CPU Characteristics: 144 Core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 144 cores, 1 chip, 144 cores/chip
Hardware Threads: 144 (1 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 256
# and size of DIMM: 8 x 32 GB
Memory Details: 32GB 2Rx8 PC5-6400; slots CPU1 A1, B1, C1, D1, E1, F1, G1, H1 populated
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: PWS-1K04A-1R
Disk Drive: 1x960GB M.2 NVMe GEN4 Samsung,MZ1L2960HCJR
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Dual I350 Gigabit Ethernet controller,AOC-AG-i2M
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2022 Datacenter
OS Version: Version 21H2 (OS Build 20348.524)
Filesystem: NTFS
JVM Vendor: OpenJDK
JVM Version: OpenJDK 64-Bit Server VM(build 17+35-2724, mixed mode)
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+UseBiasedLocking -XX:+UseOptoBiasInlining -XX:+UseFastStosb -XX:MaxInlineLevel=9 -XX:MaxVectorSize=32 -XX:-UseSharedSpaces -XX:-UseXMMForObjInit -XX:-UseBASE64Intrinsics -XX:+OptimizeFill -XX:+CriticalJNINatives
JVM Affinity: start /NODE [0-7] /AFFINITY [0x3, 0xC, 0x30, 0xC0, 0X300, 0XC00, 0X3000, 0XC000, 0X30000]
JVM Instances: 72
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 1.0
Management Firmware Version: 01.00.14.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro
Model: X11DPG
CPU Description: Intel(R) Xeon(R) Gold 6142 2.60G
Memory amount (GB): 96
Software
Operating System (OS): Microsoft Windows Server 2019 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3RF27027E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-230203F01008
Date of Calibration: 03-Feb-2024
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 427 23.0
90% 398 23.1
80% 343 23.0
70% 314 22.9
60% 286 22.7
50% 259 22.5
40% 231 22.4
30% 202 22.2
20% 165 22.0
10% 134 21.8
Active Idle 106 21.7
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 21.7 10
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,228,712
Calibration 2     10,158,722
Calibration 3     10,149,862
ssj_ops@calibrated=10,154,292
100% 99.5% 10,154,292 10,101,531
90% 90.1% 9,138,863 9,148,571
80% 80.1% 8,123,434 8,133,079
70% 70.0% 7,108,004 7,111,562
60% 60.0% 6,092,575 6,092,433
50% 50.0% 5,077,146 5,079,366
40% 40.0% 4,061,717 4,061,126
30% 30.0% 3,046,288 3,049,195
20% 20.0% 2,030,858 2,030,215
10% 10.0% 1,015,429 1,018,308
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
