Supermicro System SYS-212H-TN | SPECpower_ssj2008 = 19,500 overall ssj_ops/watt | ||||
Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Jul 29, 2024 |
Hardware Availability: | Jun-2024 | Software Availability: | Jun-2024 | Publication: | Aug 13, 2024 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

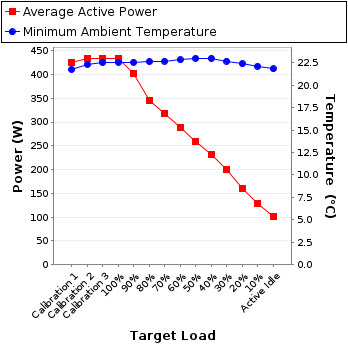

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 424 | 21.8 |
Calibration 2 | 434 | 22.3 |
Calibration 3 | 434 | 22.5 |
100% | 433 | 22.6 |
90% | 403 | 22.6 |
80% | 346 | 22.6 |
70% | 318 | 22.7 |
60% | 289 | 22.8 |
50% | 259 | 23.0 |
40% | 231 | 23.0 |
30% | 200 | 22.7 |
20% | 160 | 22.4 |
10% | 128 | 22.1 |
Active Idle | 101 | 21.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
Model: | WT310 |
Serial Number: | C3RF27027E |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory) |
Accredited by: | Omnio Calibration Lab. Co., Ltd. |
Calibration Label: | OCL-230203F01008 |
Date of Calibration: | 03-Feb-2024 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.11.0-a4047d62-20231205 |
Setup Description: | SUT Power Supply |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 10 mm in front of SUT main air intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 227 | 300.0 | 1.89 | 5.0 | 0.987 | 424 | 0.5% |
Calibration 2 | 227 | 300.0 | 1.93 | 5.0 | 0.988 | 434 | 0.5% |
Calibration 3 | 227 | 300.0 | 1.93 | 5.0 | 0.988 | 434 | 0.5% |
100% | 228 | 300.0 | 1.93 | 5.0 | 0.987 | 433 | 0.5% |
90% | 228 | 300.0 | 1.79 | 5.0 | 0.985 | 403 | 0.5% |
80% | 228 | 300.0 | 1.54 | 5.0 | 0.980 | 346 | 0.6% |
70% | 229 | 300.0 | 1.42 | 2.0 | 0.977 | 318 | 0.3% |
60% | 229 | 300.0 | 1.30 | 2.0 | 0.972 | 289 | 0.4% |
50% | 229 | 300.0 | 1.17 | 2.0 | 0.966 | 259 | 0.4% |
40% | 229 | 300.0 | 1.06 | 2.0 | 0.959 | 231 | 0.4% |
30% | 228 | 300.0 | 0.926 | 1.0 | 0.947 | 200 | 0.3% |
20% | 229 | 300.0 | 0.759 | 1.0 | 0.921 | 160 | 0.4% |
10% | 229 | 300.0 | 0.633 | 1.0 | 0.885 | 128 | 0.4% |
Active Idle | 229 | 300.0 | 0.526 | 1.0 | 0.840 | 101 | 0.5% |
