Supermicro System SYS-222H-TN SPECpower_ssj2008 = 19,273 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: 980 Rack Ave, San Jose, CA, USA Test Date: Jul 29, 2024
Hardware Availability: Jul-2024 Software Availability: Jun-2024 Publication: Aug 14, 2024
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.5% 20,698,948 906 22,846
90% 90.0% 18,715,460 830 22,556
80% 80.1% 16,646,432 766 21,735
70% 70.0% 14,561,283 673 21,643
60% 60.0% 12,486,335 552 22,614
50% 50.0% 10,390,255 484 21,489
40% 40.0% 8,313,878 441 18,839
30% 30.0% 6,239,203 398 15,669
20% 20.0% 4,155,577 342 12,150
10% 10.0% 2,082,846 302 6,897
Active Idle 0 236 0
∑ssj_ops / ∑power = 19,273

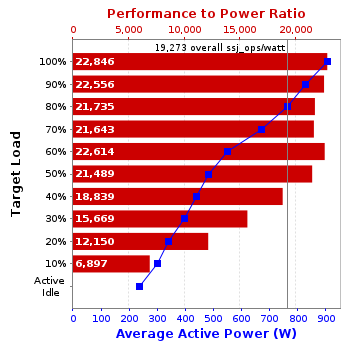

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Supermicro
Model: System SYS-222H-TN
Form Factor: 2U
CPU Name: Intel Xeon(R) 6780E, 2.20GHZ
CPU Characteristics: 144 Core, 2.2GHz, 108MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 288 cores, 2 chips, 144 cores/chip
Hardware Threads: 288 (1 / core)
CPU(s) Orderable: 2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
Tertiary Cache: 108 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 512
# and size of DIMM: 16 x 32 GB
Memory Details: 16 x 32GB 2Rx8 PC5-6400 ECC; slots CPU 1/2 A1, B1, C1, D1, E1, F1, G1, H1 populated
Power Supply Quantity and Rating (W): 2 x 1600
Power Supply Details: PWS-1K63R-1R
Disk Drive: 1 x 6.4TB NVMe GEN4 Micron,MTFDKCC6T4TFS-1BC1ZABYY
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 1 x 2-port 10GBase-T RJ45,based on Intel Carlsville X71 Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver (see SUT Notes)
Operating System (OS): Windows server 2022 Standard
OS Version: Version 10.0.20348 N/A Build 20348
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 17.0.1+12-LTS-39, mixed mode)
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelGC -XX:UseAVX=0 -XX:BiasedLockingStartupDelay=30000 -XX:-UseAdaptiveSizePolicy -XX:+UseBiasedLocking -XX:+UseOptoBiasInlining -XX:+UseFastStosb -XX:MaxInlineLevel=9 -XX:MaxVectorSize=32 -XX:-UseSharedSpaces -XX:-UseXMMForObjInit -XX:-UseBASE64Intrinsics -XX:+OptimizeFill -XX:+CriticalJNINatives
JVM Affinity: start /affinity [[0x3,0xc,0x30,0xc0,0x300,0xc00,0x3000,0xc000,0x30000,0xc0000,0x300000,0xc00000,0x3000000,0xc000000,0x30000000,0xc0000000,0x300000000,0xc00000000]
JVM Instances: 144
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 1.0a
Management Firmware Version: 09.80.73.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Supermicro
Model: SYS-2029U-MTNRV
CPU Description: Intel(R) Xeon(R) Gold 5220 2.20G
Memory amount (GB): 32
Software
Operating System (OS): Microsoft Windows Server 2019 Datacenter
JVM Vendor: Oracle Corporation
JVM Version: Java(TM) SE Runtime Environment (build 1.7.0_80-b15) Java HotSpot(TM) 64-Bit Server VM(build 24.80-b11)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Chroma, Inc.
Model: 66205
Serial Number: 662050006185
Connectivity: GPIB
Input Connection: Default
Metrology Institute: Chroma
Accredited by: Chroma Calibration Laboratory
Calibration Label: 949-600-6400
Date of Calibration: 6-Nov-2023
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.11.0-a4047d62-20231205
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: icbttonlink, Inc.
Model: LinkUSBi USB-2
Driver Version: 1.7
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 906 21.8
90% 830 21.9
80% 766 22.4
70% 673 21.9
60% 552 22.3
50% 484 22.4
40% 441 22.5
30% 398 22.4
20% 342 21.9
10% 302 22.4
Active Idle 236 22.0
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 60 Hz / 1 phase / 2 wires 21.8 132
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,899,366
Calibration 2     20,823,649
Calibration 3     20,763,070
ssj_ops@calibrated=20,793,359
100% 99.5% 20,793,359 20,698,948
90% 90.0% 18,714,024 18,715,460
80% 80.1% 16,634,688 16,646,432
70% 70.0% 14,555,352 14,561,283
60% 60.0% 12,476,016 12,486,335
50% 50.0% 10,396,680 10,390,255
40% 40.0% 8,317,344 8,313,878
30% 30.0% 6,238,008 6,239,203
20% 20.0% 4,158,672 4,155,577
10% 10.0% 2,079,336 2,082,846
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
