SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Supermicro SuperServer SYS-222HA-TN | SPECpower_ssj2008 = 18,316 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Dec 13, 2024 |
| Hardware Availability: | Dec-2024 | Software Availability: | Dec-2024 | Publication: | Jan 23, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

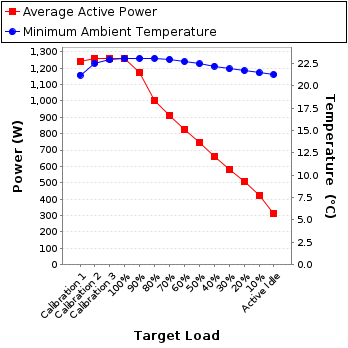

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,241 | 21.2 |
| Calibration 2 | 1,256 | 22.5 |
| Calibration 3 | 1,260 | 22.9 |
| 100% | 1,260 | 23.0 |
| 90% | 1,173 | 23.1 |
| 80% | 1,004 | 23.1 |
| 70% | 911 | 22.9 |
| 60% | 825 | 22.7 |
| 50% | 744 | 22.4 |
| 40% | 663 | 22.2 |
| 30% | 582 | 21.9 |
| 20% | 507 | 21.7 |
| 10% | 424 | 21.4 |
| Active Idle | 314 | 21.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310E |
| Serial Number: | C3TH01001E |
| Connectivity: | Serial |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | CI240131001 |
| Date of Calibration: | 31-Jan-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 223 | 300.0 | 5.61 | 10.0 | 0.992 | 1,241 | 0.3% |
| Calibration 2 | 223 | 300.0 | 5.67 | 10.0 | 0.992 | 1,256 | 0.3% |
| Calibration 3 | 223 | 300.0 | 5.70 | 10.0 | 0.993 | 1,260 | 0.3% |
| 100% | 223 | 300.0 | 5.69 | 10.0 | 0.993 | 1,260 | 0.3% |
| 90% | 223 | 300.0 | 5.30 | 10.0 | 0.991 | 1,173 | 0.3% |
| 80% | 224 | 300.0 | 4.54 | 5.0 | 0.987 | 1,004 | 0.2% |
| 70% | 225 | 300.0 | 4.11 | 5.0 | 0.986 | 911 | 0.2% |
| 60% | 225 | 300.0 | 3.73 | 5.0 | 0.984 | 825 | 0.2% |
| 50% | 225 | 300.0 | 3.37 | 5.0 | 0.981 | 744 | 0.2% |
| 40% | 226 | 300.0 | 3.01 | 5.0 | 0.978 | 663 | 0.3% |
| 30% | 226 | 300.0 | 2.65 | 5.0 | 0.972 | 582 | 0.3% |
| 20% | 226 | 300.0 | 2.32 | 5.0 | 0.965 | 507 | 0.3% |
| 10% | 227 | 300.0 | 1.96 | 2.0 | 0.955 | 424 | 0.2% |
| Active Idle | 227 | 300.0 | 1.49 | 2.0 | 0.928 | 314 | 0.3% |
