SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R6725 (AMD EPYC 9845, 2.10 GHz) | SPECpower_ssj2008 = 36,654 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Oct 16, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Sep-2025 | Publication: | Nov 4, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

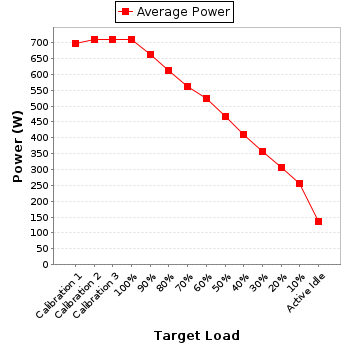

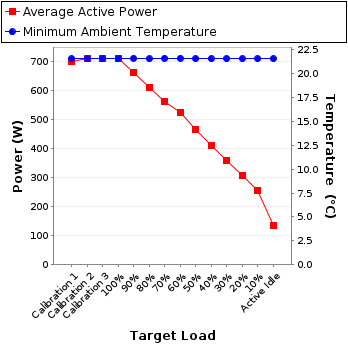

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 698 | 21.6 |
| Calibration 2 | 709 | 21.6 |
| Calibration 3 | 711 | 21.6 |
| 100% | 711 | 21.6 |
| 90% | 662 | 21.6 |
| 80% | 611 | 21.6 |
| 70% | 562 | 21.6 |
| 60% | 524 | 21.6 |
| 50% | 466 | 21.6 |
| 40% | 411 | 21.6 |
| 30% | 357 | 21.6 |
| 20% | 307 | 21.6 |
| 10% | 256 | 21.6 |
| Active Idle | 135 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91H648897 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | 334272376 |
| Date of Calibration: | 18-Dec-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 3.38 | 5.0 | 0.995 | 698 | 0.4% |
| Calibration 2 | 208 | 300.0 | 3.44 | 5.0 | 0.993 | 709 | 0.4% |
| Calibration 3 | 208 | 300.0 | 3.44 | 5.0 | 0.993 | 711 | 0.4% |
| 100% | 208 | 300.0 | 3.44 | 5.0 | 0.993 | 711 | 0.4% |
| 90% | 208 | 300.0 | 3.20 | 5.0 | 0.995 | 662 | 0.4% |
| 80% | 208 | 300.0 | 2.96 | 5.0 | 0.994 | 611 | 0.4% |
| 70% | 208 | 300.0 | 2.72 | 5.0 | 0.993 | 562 | 0.4% |
| 60% | 208 | 300.0 | 2.54 | 5.0 | 0.992 | 524 | 0.5% |
| 50% | 208 | 300.0 | 2.26 | 5.0 | 0.990 | 466 | 0.5% |
| 40% | 208 | 300.0 | 2.00 | 5.0 | 0.988 | 411 | 0.5% |
| 30% | 208 | 300.0 | 1.74 | 2.0 | 0.988 | 357 | 0.3% |
| 20% | 208 | 300.0 | 1.50 | 2.0 | 0.987 | 307 | 0.4% |
| 10% | 208 | 300.0 | 1.25 | 2.0 | 0.982 | 256 | 0.4% |
| Active Idle | 208 | 300.0 | 0.690 | 1.0 | 0.941 | 135 | 0.4% |
