SPECsfs2008_cifs Result

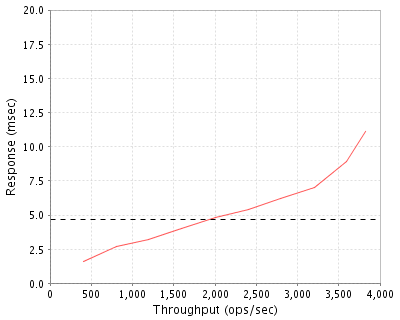

Throughput (ops/sec) Response (msec) 400 1.6 800 2.7 1199 3.2 1595 4.0 2004 4.8 2402 5.4 2795 6.2 3202 7.0 3599 8.9 3825 11.1

Tested By	Fujitsu Siemens Computers
Product Name	PRIMERGY NX650
Hardware Available	December 2008
Software Available	December 2008
Date Tested	December 2008
SFS License Number	22
Licensee Locations	Paderborn, Germany

The PRIMERGY NAS Blade NX650 is a combination of one Server Blade PRIMERGY BX620 S4 and and one or two NX650 Storage Blades (SX650) requiring a width of two or three blade slots in the PRIMERGY Advanced Blade Ecosystem BX600 S3.

Item No	Qty	Type	Vendor	Model/Name	Description
1	1	Server	Fujitsu Siemens Computers	PRIMERGY NX650	NAS Server requiring 3 blade slots and consisting of one PRIMERGY BX620 S4 with two Intel Xeon E5405 processors, an 8port SAS RAID controller with 512 MB cache and BBU and two directly connected PRIMERGY SX650 with 5 SAS disks each, running Microsoft Windows Storage Server R2 (Standard).
2	1	Blade System	Fujitsu Siemens Computers	PRIMERGY BX600 S3	PRIMERGY Advanced Blade Ecosystem BX600 S3 containing 2 MMB S3, 1 Digital KVM Switch Blade, 2 GbE Switch Blades 30/12 and the PRIMERGY NAS Blade NX650

OS Name and Version	Microsoft Windows Storage Server R2 (Standard)
Other Software	N/A
Filesystem Software	N/A

Name	Value	Description
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem\NtfsDisable8dot3NameCreation	dword:00000001	NTFS avoids the short-name attribute creation (8.3 DOS naming convention) for files
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem\NtfsMemoryUsage	dword:00000002	increase memory usage of NTFS
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces\(INTERFACE NUMBER)\TcpAckFrequency	dword:0000000d	If only acking data and not any control packets, ack once every 13 packets, instead of the default of two.

Server Tuning Notes

Interrupt 17 was bound to all cores of the first processor, interrupt 18 was bound to all cores of the second processor.

Description	Number of Disks	Usable Size
Array of 10 disks (SAS, 146 GB, 10000 rpm) connnected with the 8port SAS RAID controller and configured as RAID 5 bound as a single LUN on which a 1226 GB NTFS file system was built.	10	1.2 TB
2 disks (SAS, 36 GB, 15000 rpm) connected with the onboard SAS controller, configured as RAID 1 used for the OS.	2	33.5 GB
Total	12	1.2 TB

Number of Filesystems	1
Total Exported Capacity	1.2 TB
Filesystem Type	NTFS
Filesystem Creation Options	default
Filesystem Config	A filesystem is created on a LUN on the 8port SAS RAID controller. The filesystem is sfs.
Fileset Size	464.1 GB

Item No	Network Type	Number of Ports Used	Notes
1	Gigabit Ethernet	2	used Gigabit Ethernet ports on the PRIMERGY BX620 S4

Network Configuration Notes

All network interfaces were connected to a the switch.

Each of the two PRIMERGY NX650 server onboard network interfaces were connected to a PRIMERGY BX600 S3 switch blade. Each of the two switch blades were connected to a switch. Each of the LG single on-board network interface was connected to the switch.

Item No	Qty	Type	Description	Processing Function
1	2	CPU	Intel Xeon E5405 (2 GHz, 1 chip, 4 cores per chip, 3 MB (I+D) L2 cache per 2 cores)	TCP/IP, CIFS protocol, NTFS

Processing Element Notes

None

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
NAS server main memory	4	1	4	V
Storage Processor main memory	0.5	1	0.5	NV
Grand Total Memory Gigabytes			4.5

Memory Notes

The RAID controller's write cache is backed up with a battery backup unit able to retain the write cache for 72 hours in the event of a power failure.

Stable write and commit operations are not acknowledged until after the RAID storage system has acknowledged that the related data stored at least in non-volatile RAM. When the RAID controller's battery backup unit is off-line, the system turns off the write cache and writes directly to disk before acknowledging any write operations.

See above for the tuning params.

none

Item No	Qty	Vendor	Model/Name	Description
1	8	Fujitsu Siemens Computers	PRIMERGY RX100 S3	Server with one Intel Pentium D 945 processor

LG Type Name	LG1-8
BOM Item #	1
Processor Name	Intel Pentium D 945
Processor Speed	3.40 GHz
Number of Processors (chips)	1
Number of Cores/Chip	2
Memory Size	2 GB
Operating System	WIndows Server 2003
Network Type	2 onboard Gigabit Ethernet controllers Broadcom BCM5721 (1 used)

Benchmark Parameters

Network Attached Storage Type	CIFS
Number of Load Generators	8
Number of Processes per LG	5

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..4	LG1	1	sfs	N/A
5..8	LG1	2	sfs	N/A

Load Generator Configuration Notes

The filesystem was mounted on all clients. Four of them were connected to the first network, the other four to the second network.

Every client has the same file system mounted from the server.

(No other report notes)

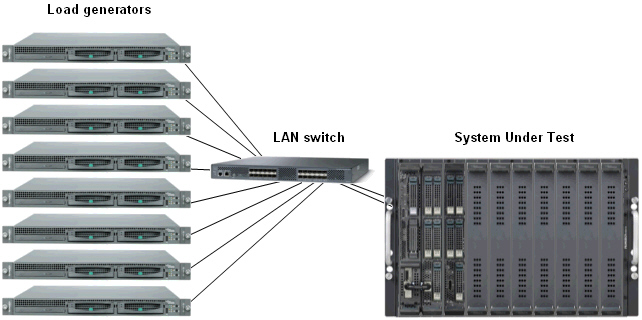

• Config Diagram
