SPECsfs2008_cifs Result

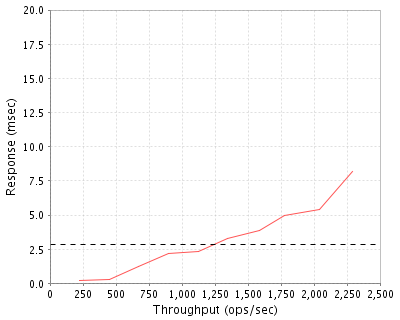

Throughput (ops/sec) Response (msec) 224 0.2 448 0.3 673 1.2 898 2.2 1122 2.3 1346 3.3 1585 3.9 1778 5.0 2041 5.4 2295 8.2

Tested By	Fujitsu
Product Name	PRIMERGY BX920 S1 / PRIMERGY SX940 S1
Hardware Available	June 2009
Software Available	June 2009
Date Tested	September 2009
SFS License Number	19
Licensee Locations	Paderborn, Germany

The PRIMERGY BX920 S1 is a 2-socket blade server. The PRIMERGY SX940 S1 is a storage blade. Each of them requires a width of one blade slot in the PRIMERGY BX900 S1. In the measurement it was used for providing network file service utilizing the SAS RAID storage housed in the storage blade's chassis.

Item No	Qty	Type	Vendor	Model/Name	Description
1	1	Server Blade	Fujitsu	S26361-K1246-V200	PRIMERGY BX920 S1
2	1	Processor	Fujitsu	S26361-F3968-E293	Xeon X5570 (first CPU)
3	1	Processor	Fujitsu	S26361-F3974-E293	Xeon X5570 (second CPU)
4	3	Memory	Fujitsu	S26361-F3994-E535	Memory SP 24GB (3 x 8 GB dual rank) DDR3-1333 PC3-8500 reg ECC memory modules.
5	2	Hard disk	Fujitsu	S26361-F3292-E536	2 x 2.5" hard disk with 36 GB and 15000 rpm.
6	1	Storage Blade	Fujitsu	S26361-K1292-V200	PRIMERGY SX940 S1 Storage Blade
7	1	controller	Fujitsu	S26361-F3257-E512	8-port SAS RAID controller with 512 MB cache with ECC.
8	1	BBU	Fujitsu	S26361-F3257-E116	Cache Battery Backup Unit.
9	4	Hard disk	Fujitsu	S26361-F3292-E114	2.5" hard disk with 146 GB and 10000 rpm.
10	1	System Unit	Fujitsu	S26361-K1245-V200	PRIMERGY BX900 S1 system unit (includes 1 hot-plug Management Blade)
11	1	MMB	Fujitsu	S26361-F3962-E500	Redundant Management Blade
12	1	Connection Blade Ethernet	Fujitsu	S26361-K1304-V100	Ethernet Connection Blade 1Gb 36/12

OS Name and Version	Microsoft Windows Server 2003 R2 Enterprise x64 Edition SP2 (Build 3790)
Other Software	N/A
Filesystem Software	N/A

Name	Value	Description
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem\NtfsDisable8dot3NameCreation	dword:00000001	NTFS avoids the short-name attribute creation (8.3 DOS naming convention) for files
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem\NtfsMemoryUsage	dword:00000002	increase memory usage of NTFS
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces\(INTERFACE NUMBER)\TcpAckFrequency	dword:0000000d	If only acking data and not any control packets, ack once every 13 packets, instead of the default of two.

Server Tuning Notes

None

Description	Number of Disks	Usable Size
Array of 4 disks (SAS, 146 GB, 10000 rpm) connnected with the 8port SAS RAID controller of the PRIMERGY SX940 S1 and configured as 1 (3+1) RAID 5 bound as a single LUN on which a 438 GB NTFS file system was built.	4	438.0 GB
2 disks (SAS, 36 GB, 15000 rpm) connected with the onboard SAS controller of the PRIMERGY BX920 S1, configured as RAID 1 used for the OS.	2	36.0 GB
Total	6	474.0 GB

Number of Filesystems	1
Total Exported Capacity	438 GB
Filesystem Type	NTFS
Filesystem Creation Options	default
Filesystem Config	One filesystem is created on the LUN on the 8port SAS RAID controller, 3+1 RAID 5.
Fileset Size	259.0 GB

Item No	Network Type	Number of Ports Used	Notes
1	Gigabit Ethernet	1	used Gigabit Ethernet ports on the PRIMERGY BX920 S1

Network Configuration Notes

All network interfaces were connected to a Netgear JGS516 switch.

The PRIMERGY BX920 S1 server network interface was connected to a switch. Each of the LG single on-board network interface was connected to the switch.

Item No	Qty	Type	Description	Processing Function
1	2	CPU	Intel Xeon X5570 (2.93 GHz, 1 chip, 4 cores per chip, 1/4 MB (I+D) L2 cache per core, 8 MB (I+D) L3 cache per chip)	TCP/IP, CIFS protocol, NTFS

Processing Element Notes

None

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
NAS server main memory	72	1	72	V
Storage Processor main memory	0.5	1	0.5	NV
Grand Total Memory Gigabytes			72.5

Memory Notes

The RAID controller's write cache is backed up with a battery backup unit able to retain the write cache for 72 hours in the event of a power failure.

Stable write and commit operations are not acknowledged until after the RAID storage system has acknowledged that the related data stored at least in non-volatile RAM. When the RAID controller's battery backup unit is off-line, the system turns off the write cache and writes directly to disk before acknowledging any write operations.

See above for the tuning params.

none

Item No	Qty	Vendor	Model/Name	Description
1	7	Fujitsu	PRIMERGY RX100 S3	Server with one Intel Pentium D 945 processor

LG Type Name	LG1-8
BOM Item #	1
Processor Name	Intel Pentium D 945
Processor Speed	3.40 GHz
Number of Processors (chips)	1
Number of Cores/Chip	2
Memory Size	2 GB
Operating System	WIndows Server 2003
Network Type	2 onboard Gigabit Ethernet controllers Broadcom BCM5721 (1 used)

Benchmark Parameters

Network Attached Storage Type	CIFS
Number of Load Generators	7
Number of Processes per LG	3

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..7	LG1	1	sfs	N/A

Load Generator Configuration Notes

The filesystem was mounted on all clients.

Every client has the same file system mounted from the server.

(No other report notes)

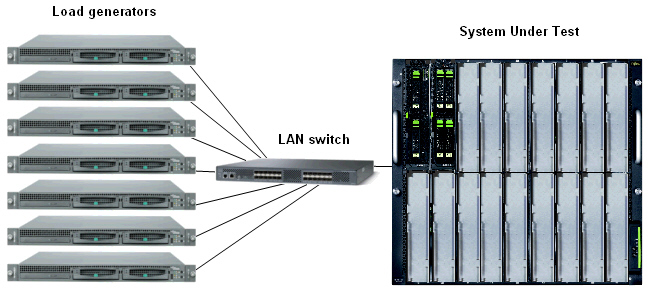

• Config Diagram
