SPECsfs2008_cifs Result

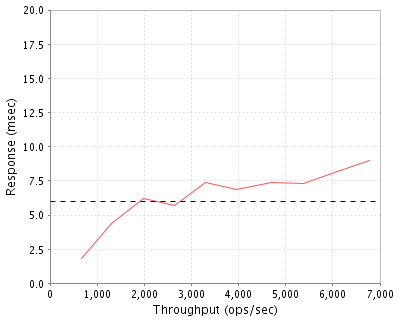

Throughput (ops/sec) Response (msec) 659 1.8 1310 4.4 1980 6.2 2642 5.7 3301 7.4 3956 6.9 4703 7.4 5386 7.3 6101 8.2 6785 9.0

Tested By	Fujitsu
Product Name	PRIMERGY TX200 S5
Hardware Available	March 2009
Software Available	February 2009
Date Tested	November 2009
SFS License Number	19
Licensee Locations	Paderborn, Germany

The PRIMERGY TX200 S5 is a 2-socket tower server. In the measurement it was used for providing network file service utilizing the SAS RAID storage housed in the server's chassis.

Item No	Qty	Type	Vendor	Model/Name	Description
1	1	Basic Unit	Fujitsu	S26361-K1266-V401	PRIMERGY TX200 S5 SAS SFF Base Unit with hot plug PSU and redundant fans (floorstand-version)
2	2	Processor	Fujitsu	S26361-F3280-E293	Xeon X5570
3	4	Memory	Fujitsu	S26361-F3285-E535	Memory SP 24GB (3 x 8 GB dual rank) DDR3-1333 PC3-10600 reg ECC memory modules.
4	1	HD Extension Box	Fujitsu	S26361-F2826-E114	HD Extension Box for 8 x 2.5" hard disks.
5	2	Controller	Fujitsu	S26361-F3257-E512	8-port SAS RAID controller with 512 MB cache with ECC.
6	2	BBU	Fujitsu	S26361-F3257-E155	Cache Battery Backup Unit.
7	16	Hard disk	Fujitsu	S26361-F3292-E114	2.5" hard disk with 146 GB and 10000 rpm.

OS Name and Version	Microsoft Windows Server 2003 R2 Enterprise x64 Edition SP2 (Build 3790)
Other Software	N/A
Filesystem Software	N/A

Name	Value	Description
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem\NtfsDisable8dot3NameCreation	dword:00000001	NTFS avoids the short-name attribute creation (8.3 DOS naming convention) for files
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\FileSystem\NtfsMemoryUsage	dword:00000002	increase memory usage of NTFS
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\Interfaces\(INTERFACE NUMBER)\TcpAckFrequency	dword:0000000d	If only acking data and not any control packets, ack once every 13 packets, instead of the default of two.

Server Tuning Notes

None

Description	Number of Disks	Usable Size
Array of 7 disks (SAS, 146 GB, 10000 rpm) connnected with the first 8port SAS RAID controller and configured as 1 (6+1) RAID 5 bound as a single LUN on which a 877 GB NTFS file system was built.	7	877.0 GB
Array of 7 disks (SAS, 146 GB, 10000 rpm) connnected with the second 8port SAS RAID controller and configured as 1 (6+1) RAID 5 bound as a single LUN on which a 877 GB NTFS file system was built.	7	877.0 GB
2 disks (SAS, 146 GB, 10000 rpm), one connected with the first and one connected with the second 8port SAS RAID controller and configured as a RAID 1 on which a 146 GB NTFS file system was built used for OS.	2	146.0 GB
Total	16	1.9 TB

Number of Filesystems	2
Total Exported Capacity	1.75 TB
Filesystem Type	NTFS
Filesystem Creation Options	default
Filesystem Config	One filesystem is created on each of the two LUNs on the 8port SAS RAID controllers, 6+1 RAID 5 for each filesystem.
Fileset Size	770.1 GB

Item No	Network Type	Number of Ports Used	Notes
1	Gigabit Ethernet	1	used Gigabit Ethernet port1 on the PRIMERGY TX200 S5

Network Configuration Notes

All network interfaces were connected to a Netgear JGS516 switch.

The PRIMERGY TX200 S5 server onboard network interface was connected to a switch. Each of the LG single on-board network interfaces were connected to the switch.

Item No	Qty	Type	Description	Processing Function
1	2	CPU	Intel Xeon X5570 (2.93 GHz, 1 chip, 4 cores per chip, 1/4 MB (I+D) L2 cache per core, 8 MB (I+D) L3 cache per chip)	TCP/IP, CIFS protocol, NTFS

Processing Element Notes

None

Description	Size in GB	Number of Instances	Total GB	Nonvolatile
NAS server main memory	96	1	96	V
Storage Processor main memory	0.5	2	1	NV
Grand Total Memory Gigabytes			97

Memory Notes

The RAID controller's write cache is backed up with a battery backup unit able to retain the write cache for 72 hours in the event of a power failure.

Stable write and commit operations are not acknowledged until after the RAID storage system has acknowledged that the related data stored at least in non-volatile RAM. When the RAID controller's battery backup unit is off-line, the system turns off the write cache and writes directly to disk before acknowledging any write operations.

The OS was installed on a single disk of the first SAS controller. Afterwards the disk manager of the OS was used to build a RAID 1 from the OS disk and a single disk of the second SAS controller. See above for the tuning params.

none

Item No	Qty	Vendor	Model/Name	Description
1	10	Fujitsu	PRIMERGY RX100 S3	Server with one Intel Pentium D 945 processor

LG Type Name	LG1-10
BOM Item #	1
Processor Name	Intel Pentium D 945
Processor Speed	3.40 GHz
Number of Processors (chips)	1
Number of Cores/Chip	2
Memory Size	2 GB
Operating System	WIndows Server 2003
Network Type	2 onboard Gigabit Ethernet controllers Broadcom BCM5721 (1 used)

Benchmark Parameters

Network Attached Storage Type	CIFS
Number of Load Generators	10
Number of Processes per LG	7

Testbed Configuration

LG No	LG Type	Network	Target Filesystems	Notes
1..10	LG1	1	sfs1, sfs2	N/A

Load Generator Configuration Notes

The filesystems were mounted on all clients.

Every client has the same file system mounted from the server.

(No other report notes)
