SPECsfs2008_nfs.v3 Result

Oracle Corporation : Sun ZFS Storage 7420
SPECsfs2008_nfs.v3 = 267928 Ops/Sec (Overall Response Time = 1.31 msec)


12601 1.0
25221 0.8
37843 0.6
50466 0.7
63110 0.7
75801 0.7
88384 0.9
101131 1.0
113768 1.1
126414 1.1
139195 1.2
151962 1.3
164821 1.4
177424 1.5
189957 1.6
202943 1.7
215327 1.9
228602 1.9
241096 2.2
255978 2.6
267928 3.1
Performance Graph

Product and Test Information

Tested By Oracle Corporation
Product Name Sun ZFS Storage 7420
Hardware Available March 2012
Software Available Dec 2011
Date Tested March 2012
SFS License Number 6
Licensee Locations Broomfield, CO USA

The Sun ZFS Storage 7420 is a high-performance storage system that offers enterprise-class NAS capabilities with industry-leading Oracle integration and storage efficiency, in a cost-effective high-availability configuration. The Sun ZFS Storage 7420's simplified set up and management combine with industry-leading storage analytics and a performance-optimized platform to make it the ideal solution for enterprise customers storage requirements. The Sun ZFS Storage 7420 can scale to 2 TB Memory, 80 CPU cores, and 1.7 PB capacity, with up to 4 TB of Flash Cache in a high-availability configuration.

Configuration Bill of Materials

Item No Qty Type Vendor Model/Name Description
1 2 Storage Controller Oracle 7420 Sun ZFS Storage 7420 Controller
2 4 10 Gigabit Ethernet Adapter Oracle Sun PCI-E Dual 10GbE Fiber Dual port 10Gb Ethernet adapter
3 8 Short Wave Pluggable Transceiver Oracle 10Gbps Short Wave Pluggable Transceiver (SFP+) Short Wave Pluggable Transceiver
4 2 Shelf w/Disk Drives Oracle Sun Disk Shelf SAS-2 with 20 Disk Drives SAS-2 Disk Shelf with 20x300GB 15K,HDD
5 10 Shelf w/Disk Drives Oracle Sun Disk Shelf SAS-2 with 24 Disk Drives SAS-2 Disk Shelf with 24x300GB 15K,HDD
6 8 SSD Drive Oracle 512GB Solid State Drive SATA-2 SSD Read Flash Accelerator 512GB
7 8 SSD Drive Oracle SAS-2 73GB 3.5-inch SSD Write Flash Accelerator SSD Write Flash Accelerator 73GB
8 4 SAS-2 Host Bus Adapter Oracle SAS-2 8-Port 6Gbps HBA SAS-2 8-Port 6Gbps Host Bus Adapter

Server Software

OS Name and Version 2011.1.1
Other Software None
Filesystem Software ZFS

Server Tuning

Name Value Description
atime off Disable atime updates (all file systems)

Server Tuning Notes


Disks and Filesystems

Description Number of Disks Usable Size
300GB SAS 15K RPM Disk Drives 280 37.1 TB
500GB SATA 7.2K RPM Disk Drives Each controller contains 2 of these disk drives and are mirrored and are not used for cache data or data storage. 4 899.0 GB
Total 284 37.9 TB
Number of Filesystems 32
Total Exported Capacity 36.32 TB
Filesystem Type ZFS
Filesystem Creation Options default
Filesystem Config 32 ZFS file systems
Fileset Size 31008.5 GB

The storage configuration consists of 12 shelves, 10 with 24 disk drives, 2 with 20 disk drives and 4 write flash devices. Each controller head has 4 read flash accelerators. Each controller is configured to use 140 disk drives, 4 write flash accelerator devices and 4 read flash accelerator devices. The controller is then set up with pools by dividing the disk drives, write flash accelerators and read flash accelerators into 4 pools. Each of the controller's pools is configured with 34 disk drives, 1 write flash accelerator, 1 read flash accelerator and 1 spare disk drive. The pools are then set up to mirror the data (RAID1) across all 34 drives. The write flash accelerator in each pool is used for the ZFS Intent Log (ZIL) and the read flash accelerator is used as a level 2 cache (L2ARC) for the pool. All pools are configured with 4 ZFS file systems each. Since each controller is configured with 4 pools and each pool contains 4 ZFS file system, in total each of 2 controllers has 16 ZFS file systems. The SUT has 32 ZFS file systems for the benchmark. There are 2 internal mirrored system disk drives per controller and are used only for the controllers core operating system. These drives are not used for data cache or storing user data.

Network Configuration

Item No Network Type Number of Ports Used Notes
1 10 Gigabit Ethernet 4 Each controller has 2 Dual port 10 Gigabit Ethernet cards using only a single port on each and using Jumbo Frames

Network Configuration Notes

There are 8 ports total but 4 are active at a time for high availibility. The MTU size is set to 9000 on each of the 10 Gigabit ports.

Benchmark Network

Each controller was configured to use a single port of two dual port 10GbE network adapters for the benchmark network. All of the 10GbE network ports on all the load generators systems were connected to the Arista 7124SX switch that provided connectivity.

Processing Elements

Item No Qty Type Description Processing Function
1 8 CPU 2.4GHz 10-core Intel Xeon(tm) Processor E7-4870 NFS, ZFS, TCP/IP, RAID/Storage Drivers

Processing Element Notes

Each Sun ZFS Storage 7420 controller contains 4 physical processors, each with 10 processing cores.


Description Size in GB Number of Instances Total GB Nonvolatile
7420 controller memory 1024 2 2048 V
SSD 73GB SAS-2 Write Flash Accelerator 73 8 584 NV
SSD 512GB SATA-2 Read Flash Accelerator 512 8 4096 NV
Grand Total Memory Gigabytes     6728

Memory Notes

The Sun ZFS Storage 7420 controllers' main memory is used for the Adaptive Replacement Cache (ARC) the data cache and operating system memory. A separate device, a write flash accelerator is used for the ZFS Intent Log (ZIL). The read flash accelerator is dedicated storage used also to hold cached data and is called the Level 2 Adaptive Replacement Cache (L2ARC).

Stable Storage

The Stable Storage requirement is guaranteed by the ZFS Intent Log (ZIL) which logs writes and other file system changing transactions to either a write flash accelerator or a disk drive. Writes and other file system changing transactions are not acknowledged until the data is written to stable storage. Since this is an active-active cluster high availability system, in the event of a controller failing or power loss, the other active controller can take over for the failed controller. Since the write flash accelerators or disk drives are located in the disk shelves and can be accessed via the 4 backend SAS channels from both controllers, the remaining active controller can complete any outstanding transactions using the ZIL. In the event of power loss to both controllers, the ZIL is used after power is restored to reinstate any writes and other file system changes.

System Under Test Configuration Notes

The system under test is a Sun ZFS Storage 7420 cluster set up in an active-active configuration.

Other System Notes


Test Environment Bill of Materials

Item No Qty Vendor Model/Name Description
1 4 Oracle Sun Fire X4270 M2 Sun Fire X4270 M2 with 144GB RAM and Oracle Solaris 10 8/11
2 1 Arista 7124SX Arista 7124SX 24-port 10Gb Ethernet switch

Load Generators

LG Type Name LG1
BOM Item # 1
Processor Name Intel Xeon(tm) X5680
Processor Speed 3.3 GHz
Number of Processors (chips) 2
Number of Cores/Chip 6
Memory Size 144 GB
Operating System Oracle Solaris 10 8/11
Network Type 10Gb Ethernet

Load Generator (LG) Configuration

Benchmark Parameters

Network Attached Storage Type NFS V3
Number of Load Generators 4
Number of Processes per LG 256
Biod Max Read Setting 2
Biod Max Write Setting 2
Block Size AUTO

Testbed Configuration

LG No LG Type Network Target Filesystems Notes
1..4 LG1 1 /export/sfs-1../export/sfs-32 None

Load Generator Configuration Notes

File systems were mounted on all clients and all were connected to the same physical and logical network.

Uniform Access Rule Compliance

Every client used 256 processes. All 32 file systems are mounted and accessed by each client and evenly divided amongst all network paths to the 7420 controllers. The file systems data was evenly distributed on the backend.

Other Notes

Other Test Notes: None

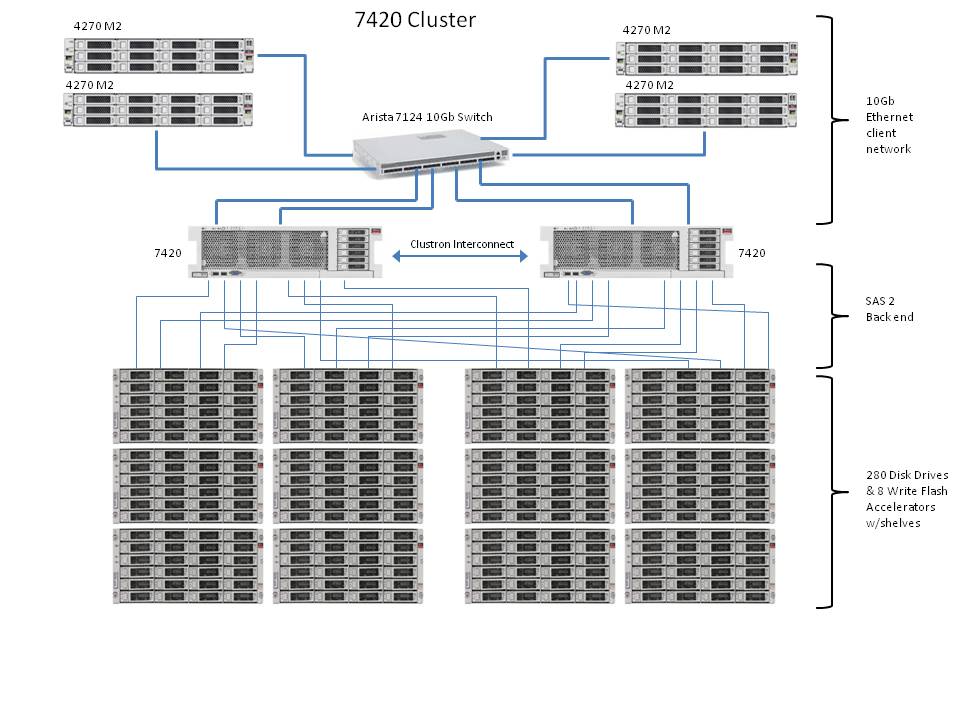

Config Diagrams
