SPECsfs97.v3 Result

IBM Corporation :RS/6000 Model 44P-170
SPECsfs97.v3 =2944 Ops/Sec (Overall Response Time = 4.04 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
3001.9
6002.4
9022.7
12042.8
14933.3
17943.6
20894.5
24125.2
27057.5
294416.2

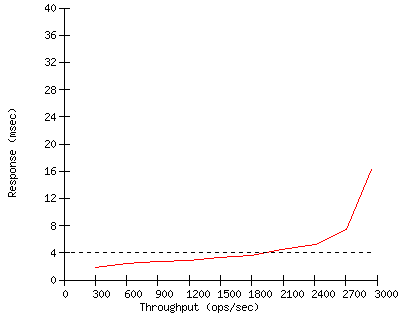

Performance Graph


Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available February 2000
Software AvailableFebruary 2000
Date TestedJanuary 2000
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name RS/6000 Model 44P-170
Processor 400MHz POWER3-II
# of Processors 1
Primary Cache 32KBI+64KBD on chip
Secondary Cache 4MB(I+D) off chip
Other Cache None
UPS N/A
Other Hardware N/A
Memory Size 1 GB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionAIX 4.3.3 plus APAR IY06844
Other Software N/A
File System JFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 42
Fileset Size 29.0 GB

Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. Gigabit Ethernet-SX PCI Adapter
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type 1 Alteon ACEswitch 180 Ethernet Switch
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 49
Number of Filesystems 42 (F1-F42)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Wide/Ultra-2 SCSI I/O Controller
# of Controller Type 1
Number of Disks 1
Disk Type 9.1GB 7200rpm 16-bit SCSI (P/N 59H6816)
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter
# of Controller Type 1
Number of Disks 48
Disk Type 18.2GB 10000rpm SSA (P/N 34L6459)
File Systems on Disks F1-F42
Special Config Notes SSA adapters/disks configured in JBOD mode

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG21
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model RS/6000 Model 43P-260
Number and Type Processors2 200MHz POWER3
Memory Size 512MB
Operating System AIX 4.3.2
Compiler CSet++ 3.1.3
Compiler Options '-DSETPGRP_SYSV' and 'EXTRA_LINTFLAGS= -Nn6000 -Nd4000'
Network Type Gigabit Ethernet-SX PCI Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1-F21N/A
2LG1N1F22-F42N/A


Other Notes


Tue Feb 8 15:19:23 2000

First published at SPEC.org on 08-Feb-2000
