SPECsfs97.v2 Result

Hewlett Packard :HP-9000 N4000
SPECsfs97.v2 =15270 Ops/Sec (Overall Response Time = 1.91 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
9701.1
19981.1
30011.1
39541.1
50001.2
60591.7
69991.9
79802.1
90332.2
99782.5
110362.4
122092.6
131532.7
141123.0
150603.3
152703.7

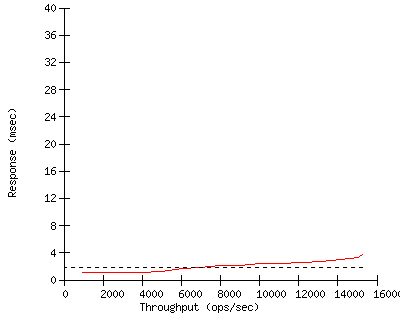

Performance Graph


Configuration

Server Configuration and Availability
Vendor Hewlett Packard
Hardware Available June 2000
Software AvailableJune 2000
Date TestedMarch 2000
SFS License Number3
Licensee LocationsRichardson, Texas

CPU, Memory and Power
Model Name HP-9000 N4000
Processor PA-8600 @ 550 Mhz
# of Processors 4
Primary Cache 512KB Instruction, 1MB data
Secondary Cache N/A
Other Cache N/A
UPS A3589A
Other Hardware N/A
Memory Size 8 GB
NVRAM Size 2 GB (512MB*4)
NVRAM Type 512 MB NVRAM 5 Day battery
NVRAM DescriptionFC60 Array controller

Server Software
OS Name and VersionHP-UX 11.00ACE Extension pack + NFSTCP
Other Software N/A
File System JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic with ceiling at 70 percent
# NFS Processes 200
Fileset Size 154.6 GB

Network Subsystem
Network Type Gigabit Ethernet
Network Controller Desc. PCI 1000Base-SX Model #A4926A-60001
Number Networks 4
Number Network Controllers4
Protocol Type UDP

Switch Type HP Procurve 4000M Gigabit
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 9
Number of Disks 97
Number of Filesystems 48
File System Creation Opsmkfs -F vxfs -o logsize=2048,delaylog
File System Config N/A

Disk Controller Ultra2 Wide SCSI (builtin)
# of Controller Type 1
Number of Disks 1
Disk Type SEAGATE ST39102LC
File Systems on Disks os, swap, dump
Special Config Notes N/A

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F1,F9..F41
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F2,F10..F42
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F3,F11..F43
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F4,F12..F44
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F5,F13..F45
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F6,F14..F46
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F7,F15..F47
Special Config Notes See notes below.

Disk Controller PCI FiberChannel A3740A Shortwave
# of Controller Type 1
Number of Disks 12
Disk Type 9GB, 10000 rpm. ST39102LC
File Systems on Disks F8,F16..F48
Special Config Notes See notes below.

Load Generator (LG) Configuration
Number of Load Generators 24
Number of Processes per LG2
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type A-Class
LG Model A-180C
Number and Type ProcessorsPA-7300LC @ 180 MHz
Memory Size 128 MB
Operating System HP-UX 11.00 December 1998 Extension pack.
Compiler HP ANSI C compiler
Compiler Options +O2 -Ae
Network Type PCI 1000Base-SX Adapter. A4926A-60001

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
01/02/03/04/05/06LG1N1F1..F2/F3..F4/F5..F6 -> F12
07/08/09/10/11/12LG1N2F13..F14/F15..F16/F17..F18 -> F24
13/14/15/16/17/18LG1N3F25..F26/F27..F28/F29..F30 -> F36
19/20/21/21/23/24LG1N4F37..F38/F39..F40/F41..F42 -> F48


Other Notes


Wed Apr 5 10:27:04 2000

First published at SPEC.org on 05-Apr-2000
