SPECsfs97.v2 Result

Sun Microsystems Inc. :Netra NFS Server Model 2300 with RAID0+1 Disks
SPECsfs97.v2 =3141 Ops/Sec (Overall Response Time = 3.82 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
3092.0
6182.1
9312.6
12463.2
15523.4
18584.0
21834.6
24905.4
28106.4
31418.4

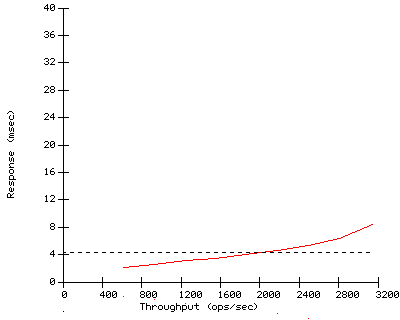

Performance Graph


Configuration

Server Configuration and Availability
Vendor Sun Microsystems Inc.
Hardware Available June 1998
Software AvailableJune 1998
Date TestedApril 1998
SFS License Number6
Licensee LocationsPalo Alto, CA

CPU, Memory and Power
Model Name Netra NFS Server Model 2300 with RAID0+1 Disks
Processor 296 MHz UltraSPARC II
# of Processors 2
Primary Cache 16KBI+16KBD on chip
Secondary Cache 2MB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 1 GB
NVRAM Size 64MB
NVRAM Type SBus 32 NVRAM
NVRAM Description2x SBus 32MB NonVolatile RAM CARD

Server Software
OS Name and VersionNetra_NFS_SmartServe_1.3
Other Software N/A
File System UFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 96
Fileset Size 30.0 GB

Network Subsystem
Network Type 100Mbit Sun FastEthernet
Network Controller Desc. SunSwift 100baseT f/w SCSI SBus Adapter
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type UDP

Switch Type N/A
Bridge Type N/A
Hub Type Cisco System's Fast Hub 116T
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 2
Number of Disks 57
Number of Filesystems 4 (F1-F4)
File System Creation Opsdefault
File System Config default

Disk Controller On-board SCSI-2
# of Controller Type 1
Number of Disks 1
Disk Type 2.1GB 7200rpm
File Systems on Disks OS, swap
Special Config Notes

Disk Controller SBus FC-100 Host Adapter
# of Controller Type 1
Number of Disks 56
Disk Type 9.1GB 7200rpm
File Systems on Disks F1-F4 (RAID0+1: 56 Data Disks)
Special Config Notes 4 Sun Network Enterprise Array each with 14 drives,

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG20
Biod Max Read Setting 3
Biod Max Write Setting 3

LG Type LG1
LG Model Ultra 2200
Number and Type Processors2 167MHz UltraSPARC
Memory Size 128MB
Operating System Solaris 2.5.1
Compiler SC3.0
Compiler Options N/A
Network Type SunSwift 100baseT f/w SCSI SBus Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F2,F3,F4
2LG1N1F1,F2,F3,F4


Other Notes


Tue Jul 7 16:17:35 1998

First published at SPEC.org on 16-Jun-1998
