SPECsfs97.v3 Result

EMC Corporation :EMC Celerra File Server, Cluster Model 506
SPECsfs97.v3 =5191 Ops/Sec (Overall Response Time = 3.58 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
4991.5
9941.9
15022.3
20042.5
24902.9
29933.6
34994.1
39935.1
44936.2
50147.7
51038.4
51919.5

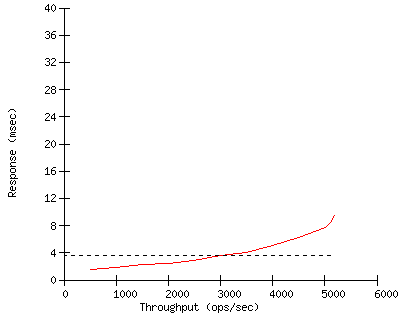

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corporation
Hardware Available October 1999
Software AvailableDecember 1999
Date TestedOctober 1999
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name EMC Celerra File Server, Cluster Model 506
Processor 450 MHz Pentium III Slot 1
# of Processors 1
Primary Cache 16KBI+16KBD on chip
Secondary Cache 512KB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware 1 Control Station
Memory Size 512 MB
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionData Access in Real Time (DART) v1.2.41.200
Other Software UnixWare v2.1.3 on Control Station
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 96
Fileset Size 50.3 GB

Network Subsystem
Network Type Gigabit Ethernet (jumbo frames)
Network Controller Desc. Alteon AceNIC
Number Networks 1 (N1)
Number Network Controllers1
Protocol Type TCP

Switch Type 1 Alteon ACEswitch 180
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 1
Number of Disks 34
Number of Filesystems 8 (F1-F8)
File System Creation Opsdefault
File System Config Each FS striped across four disks

Disk Controller Symmetrix Model 3430, Ultra-Wide Differential SCSI
# of Controller Type 1
Number of Disks 34 (32 data, 2 other)
Disk Type Seagate Cheetah 18GB drives
File Systems on Disks Root file system, server logs, file systems F1,F2...F8
Special Config Notes 4GB mem per Symmetrix, code 5265.39.24 Rev 7

Load Generator (LG) Configuration
Number of Load Generators 2
Number of Processes per LG32
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model SPARC Ultra Enterprise 2
Number and Type Processors2 x 296 MHz UltraSPARC
Memory Size 512 MB
Operating System Solaris 2.5.1
Compiler SC4.0
Compiler Options M.solaris2
Network Type Alteon AceNIC Gigabit Ethernet with Alteon driver v2.0.24

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1/2LG1N1F1,F2,..,F8N/A



Wed Oct 20 21:15:55 1999

First published at SPEC.org on 19-Oct-1999
