SPECsfs97_R1.v3 Result

Network Appliance, Inc. :	F810 (TCP, 18x36GB FCAL, GbE)
SPECsfs97_R1.v3 =	4974 Ops/Sec (Overall Response Time = 1.64 msec)

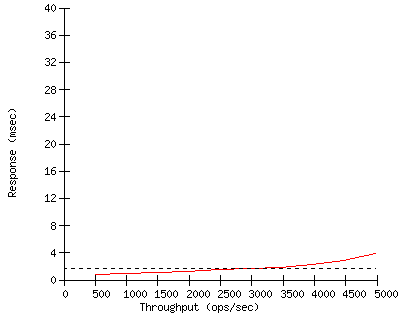

Performance

Throughput (ops/sec)	Response (msec)
497	0.8
981	0.9
1486	1.1
1980	1.3
2478	1.5
2968	1.7
3465	1.9
3971	2.3
4464	2.9
4974	3.9

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	December 2001
Software Available	December 2001
Date Tested	November 2001
SFS License Number	33
Licensee Locations	Sunnyvale, CA

CPU, Memory and Power

Model Name F810 (TCP, 18x36GB FCAL, GbE)

Processor 733-MHz Intel Pentium III Coppermine

# of Processors 1 core, 1 chip, 1 core/chip

Primary Cache 16 KB I + 16 KB D

Secondary Cache 256 KB on-die

Other Cache N/A

UPS none

Other Hardware none

Memory Size 512 MB

NVRAM Size 128 MB

NVRAM Type DIMM on PCI card

NVRAM Description 15-day battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 6.1.2

Other Software none

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 47.2 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	X1025C PCI adapter card
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	TCP

Switch Type Extreme Summit4 (N1)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 1

Number of Disks 18

Number of Filesystems 1

File System Creation Ops default

File System Config 2 RAID-groups of 8 disks each

Disk Controller X2040B FC-AL adapter card (128 KB RAM standard)

# of Controller Type 1

Number of Disks 18

Disk Type X234B 36GB FC-AL

File Systems on Disks F1

Special Config Notes none

Load Generator (LG) Configuration
Number of Load Generators	8
Number of Processes per LG	3
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel ISP1100 Internet Server Platform

Number and Type Processors 1x700-MHz Pentium III

Memory Size 512 MB

Operating System Linux 2.2.18 (Red Hat 6.2)

Compiler gcc version egcs-2.91.66

Compiler Options -static -O -DNO_T_TYPES -DUSE_INTTYPES

Network Type integrated Intel Pro/100+ 100BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../8 LG1 N1 F1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../8	LG1	N1	F1	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
The F1 filesystem was composed of two RAID-4 groups; each RAID-group was composed of 7 data disks and 1 parity disk. Two spare disks were present.
Server tunings:
date 0801 -- set clock to 8:01am for reproducibility
options minra 1 -- to minimize file read-ahead
NetApp is a registered trademark and "Data ONTAP", "Network Appliance", and WAFL are trademarks of Network Appliance, Inc. in the United States and other countries.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 11-Dec-2001

LG Type	LG1
LG Model	Intel ISP1100 Internet Server Platform
Number and Type Processors	1x700-MHz Pentium III
Memory Size	512 MB
Operating System	Linux 2.2.18 (Red Hat 6.2)
Compiler	gcc version egcs-2.91.66
Compiler Options	-static -O -DNO_T_TYPES -DUSE_INTTYPES
Network Type	integrated Intel Pro/100+ 100BASE-T
