SPECsfs97_R1.v2 Result

IBM Corporation :IBM eServer pSeries 620 Model 6F0
SPECsfs97_R1.v2 =36427 Ops/Sec (Overall Response Time = 1.70 msec)

Performance

Throughput
(ops/sec)		 Response
(msec)
36270.7
72640.9
109131.1
146211.3
182821.5
219351.6
256351.9
293332.3
330533.2
364275.3

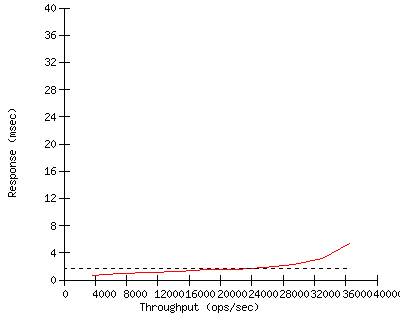

 Performance Graph

Configuration

Server Configuration and Availability
Vendor IBM Corporation
Hardware Available April 2002
Software AvailableApril 2002
Date TestedMarch 2002
SFS License Number11
Licensee LocationsAustin, Texas

CPU, Memory and Power
Model Name IBM eServer pSeries 620 Model 6F0
Processor 750MHz RS64 IV
# of Processors 4
Primary Cache 128KBI+128KBD on chip
Secondary Cache 8MB(I+D) off chip
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 32 GB
NVRAM Size 192 MB (6 x 32MB)
NVRAM Type 32MB DRAM daughter card on SerialRAID adapter
NVRAM Description7-day battery; cache bypass on battery failure

Server Software
OS Name and VersionAIX 5L V5.1 (64-bit)
Other Software N/A
File System JFS and Enhanced JFS
NFS version 2

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 1
Fileset Size 348.1 GB
Network Subsystem
Network Type Jumbo Frame Gigabit
Network Controller Desc. IBM Gigabit Ethernet-SX PCI Adapter
Number Networks 3 (N1-N3)
Number Network Controllers3
Protocol Type UDP

Switch Type Alteon ACEswitch 180 (1)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 7
Number of Disks 193
Number of Filesystems 168 (F1-F168)
File System Creation Opsdefault
File System Config See Other Notes

Disk Controller Wide/Ultra-2 SCSI I/O Controller
# of Controller Type 1
Number of Disks 1
Disk Type 9.1GB 7200rpm 16-bit SCSI
File Systems on Disks OS, page space
Special Config Notes N/A

Disk Controller IBM SSA 160 SerialRAID Adapter
# of Controller Type 6
Number of Disks 192
Disk Type 9.1GB 7200rpm SSA (Type DGHC)
File Systems on Disks F1-F28, F29-F56, F57-F84, ..., F161-F168
Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators 3
Number of Processes per LG56
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model RS/6000 Model 44P-270
Number and Type Processors4 x 375MHz POWER3-II
Memory Size 1.5 GB
Operating System AIX 4.3.3 plus APAR IY22024
Compiler N/A, SFS97_R1 pre-compiled binaries
Compiler Options N/A
Network Type IBM Gigabit Ethernet-SX PCI Adapter

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1LG1N1F1,F29,...,F141,F2,F30,...,F142,F3,F31,...,F143,...,F9,F37,...,F149,F10,F38N/A
2LG1N2F66,F94,...,F150,F11,F39,...,F151,F12,F40,...,F152,...,F19,F47,F75,F103N/A
3LG1N3F131,F159,F20,F48,...,F160,F21,F49,...,F161,F22,F50,...,F162,...,F28,F56,...,F168N/A

Other Notes

Generated on Tue Apr 16 17:14:33 2002 by SPEC SFS97 HTML Formatter
Copyright © 1997-2002 Standard Performance Evaluation Corporation

First published at SPEC.org on 16-Apr-2002
