SPECsfs97_R1.v3 Result

Maxxan Systems Inc. :	SG100 Storage Gateway
SPECsfs97_R1.v3 =	12083 Ops/Sec (Overall Response Time = 1.88 msec)

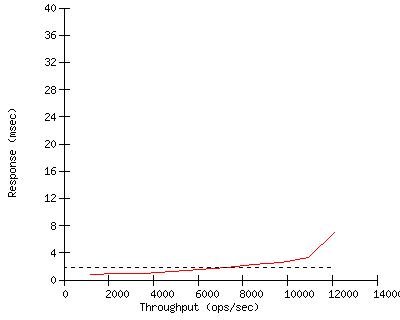

Performance

Throughput (ops/sec)	Response (msec)
1205	0.8
2435	0.9
3614	1.0
4866	1.2
6075	1.5
7257	1.9
8494	2.3
9741	2.6
10945	3.3
12083	7.0

Configuration

Server Configuration and Availability
Vendor	Maxxan Systems Inc.
Hardware Available	December 2002
Software Available	December 2002
Date Tested	March 2003
SFS License Number	2581
Licensee Locations	1975 Concourse Drive San Jose, CA 95131

CPU, Memory and Power

Model Name SG100 Storage Gateway

Processor 2.4 GHz Pentium IV Xeon

# of Processors 2

Primary Cache 12K uops + 8KB D

Secondary Cache 512KB on-die

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 4 GB

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version VxOS - based on Red Hat Linux 7.2

Other Software Veritas ServPoint NAS 1.2 for Linux

File System VxFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 128

Fileset Size 116.0 GB

Network Subsystem
Network Type	Gigabit Ethernet
Network Controller Desc.	Intel 82546 GbEthernet controller
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	UDP

Switch Type Dell 3024 Switch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 11

Number of Disks 81

Number of Filesystems 8 (F1-F8)

File System Creation Ops default

File System Config default

Disk Controller IDE Compact Flash

# of Controller Type 1

Number of Disks 1

Disk Type 1GB IBM microdrive

File Systems on Disks Operating System

Special Config Notes N/A

Disk Controller Qlogic 2312

# of Controller Type 5

Number of Disks 80

Disk Type SEAGATE ST318451 18GB 15K rpm

File Systems on Disks F1 - F8

Special Config Notes See other notes

Load Generator (LG) Configuration
Number of Load Generators	10
Number of Processes per LG	8
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Sun Ultra 5/10

Number and Type Processors 400 MHz Ultra Sparc IIi

Memory Size 512 MB

Operating System Solaris 8

Compiler pre-compiled binaries

Compiler Options none

Network Type Integrated 10/100BASE-T

LG Type LG2

LG Model Sun Ultra 5/10

Number and Type Processors 400 MHz Ultra Sparc IIi

Memory Size 256 MB

Operating System Solaris 8

Compiler pre-compiled binaries

Compiler Options none

Network Type Integrated 10/100BASE-T

LG Type LG3

LG Model Sun Ultra 5/10

Number and Type Processors 360 Mhz Ultra Sparc IIi

Memory Size 512 MB

Operating System Solaris 8

Compiler pre-compiled binaries

Compiler Options none

Network Type InTegrated 10/100BASE-T

LG Type LG4

LG Model Compag DS850

Number and Type Processors 1.133 GHz Pentium III

Memory Size 1 GB

Operating System Solaris 8

Compiler pre-compiled binaries

Compiler Options none

Network Type InTegrated 10/100BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 1 /F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8 N/A

2 LG2 1 /F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8 N/A

3 LG3 1 /F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8 N/A

4..10 LG4 1 /F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	1	/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8	N/A
2	LG2	1	/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8	N/A
3	LG3	1	/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8	N/A
4..10	LG4	1	/F1, /F2, /F3, /F4, /F5, /F6, /F7, /F8	N/A

Other Notes

Each file system was configured on a Raid-0 volume with an 8k stripe unit size.
Each file system contained 10 disks.
Each file system was striped across each fibre channel port.
File systems were exported with the following options:
rw,sync,no_wdelay,insecure
Disks enclosed in a total of 20 JMR 1U 2G Fibre JBOD 4-bay Rackmount Enclosures, 4 drives per enclosure.
Enclosures were inter-connected to form 8 FC-AL drives per loop. Each loop was connected to a fibre channel port.
The number of nfsd process was limited to 128 by using the rpc.nfsd command.
Because of a command behaviour issue, the user must first specify zero (0) processes and then repeat the command specifying 128 processes.
The following products are included:
VERITAS Volume Manager 3.2
VERITAS File System 3.4
The Intel 82546 GbEthernet controller is a dual port controller,
however only one port was used.
The Qlogic 2312 is a dual port controller. 5 controllers were used
for a total of 10 fibre channel ports.

First published at SPEC.org on 15-Apr-2003
