SPECsfs97_R1.v3 Result

Spinnaker Networks :	SpinServer 4100 (5-node Scalable Cluster)
SPECsfs97_R1.v3 =	134385 Ops/Sec (Overall Response Time = 1.90 msec)

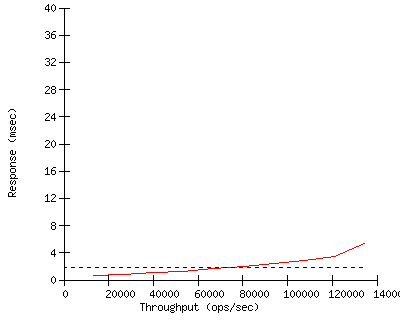

Performance

Throughput (ops/sec)	Response (msec)
13355	0.7
26567	0.8
40094	1.1
53396	1.3
67054	1.7
80518	2.0
94054	2.4
107519	2.8
120981	3.5
134385	5.3

Configuration

Server Configuration and Availability
Vendor	Spinnaker Networks
Hardware Available	June 2003
Software Available	June 2003
Date Tested	June 2003
SFS License Number	84
Licensee Locations	Pittsburgh, PA

CPU, Memory and Power

Model Name SpinServer 4100 (5-node Scalable Cluster)

Processor 2.8 GHz Intel Xeon

# of Processors 10 (2 per node)

Primary Cache 12 K uops I + 8 KB D on-chip

Secondary Cache 512 KB on-chip

Other Cache N/A

UPS APC Smart-UPS 1000 (1 per node)

Other Hardware none

Memory Size 20 GB (4 GB per node)

NVRAM Size 8.5 GB (1.7 GB per node)

NVRAM Type UPS backed write cache and mirrored local SCSI drives

NVRAM Description see notes

Server Software

OS Name and Version SpinFS 2.1

Other Software none

File System SpinFS

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 1276.5 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit Ethernet
Network Controller Desc.	1316-0014-01 (PCI Adapter)
Number Networks	2 (N1-Client, N2-Cluster)
Number Network Controllers	15 (1 Client and 2 Clusters per node)
Protocol Type	TCP

Switch Type Extreme Summit 7i

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 5 (1 per node)

Number of Disks 240 (48 per node)

Number of Filesystems 1 namespace (see notes)

File System Creation Ops default

File System Config 45 RAID-Groups of 5 disks each

Disk Controller 1316-0015-01 (2Gb FC-AL Adapter)

# of Controller Type 5 (dual-ported)

Number of Disks 240

Disk Type 1320-0008-01 (146GB, 10K RPM)

File Systems on Disks F1

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	15
Number of Processes per LG	45
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Dell PowerEdge 1550

Number and Type Processors 2x1.0-GHz Pentium III

Memory Size 1024 MB

Operating System Linux 2.4.9-31smp (Red Hat 7.2)

Compiler gcc 2.96

Compiler Options -O -DNO_T_TYPES -DUSE_INTTYPES

Network Type 3COM 3C996-T GigE, MTU=9000

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../15 LG1 N1 F1 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../15	LG1	N1	F1	N/A

Other Notes

SpinFS allows up to 512 SpinServers with automatic failover to work together in a single namespace.
The system under test was a 5-node SpinServer 4100 cluster with fifteen 16-disk SpinStor 200 Arrays (5 Raid + 10 JBOD).
Both FC ports of each SpinServer 4100 were connected to the disk subsystem for performance and availability.
Each RAID array had two JBOD expansion arrays.
The single namespace, F1, was comprised of 45 RAID-5 sets. Fifteen additional disks were configured as hot spares.
Each RAID set had a strip size of 32 KB.
Server Tunings:
All network ports were set to use jumbo frames (MTU=9000).
All scheduled SpinShot jobs were disabled for reproducibility
Cluster Details:
Each server had access to the client network (N1) for communication with all Load Generators.
Each server had access to the cluster network (N2) for communication with the other servers.
One Storage Pool was created behind each server. One VFS was created per Storage Pool.
Each VFS was mapped to a subdirectory of the global namespace under root (/vfs1, /vfs2, /vfs3, /vfs4, /vfs5).
For UAR compliance, the client processes uniformly mounted 5 different VFS objects from the single namespace.
server1:/vfs1, server1:/vfs2, server1:/vfs3, server1:/vfs4, server1:/vfs5
server2:/vfs1, server2:/vfs2, server2:/vfs3, server2:/vfs4, server2:/vfs5
server3:/vfs1, server3:/vfs2, server3:/vfs3, server3:/vfs4, server3:/vfs5
server4:/vfs1, server4:/vfs2, server4:/vfs3, server4:/vfs4, server4:/vfs5
server5:/vfs1, server5:/vfs2, server5:/vfs3, server5:/vfs4, server5:/vfs5
This mounting pattern assured that 1/5 of processes access data local to the server they mounted through.
It also assured that 4/5 of processes cross the cluster to access data uniformly behind the remaining servers.
Each SpinStor 200 RAID Array utilized dual RAID Controllers, each with 256 MB of battery-backed RAM.
The RAID Controller was configured with a Write-Back cache that switches to Write-Through mode when
the charge level of its battery is below 72 hours.
The SpinServer 4100 has 1.7 Gbytes of UPS backed cache that will survive a power failure or an operating
system crash. In the event of a power failure or low battery condition, the cache is written to
mirrored local SCSI disks. Recovery software restores the cache when power returns. This RAM is not used
by the operating system as general purpose memory but as NVRAM that is dedicated for caching disk reads
and writes. The UPS is guaranteed to have sufficient energy after a battery low condition to flush the
entire contents of the 1.7 GBytes of cache to local drives.
Spinnaker Networks, SpinServer, SpinStor, and SpinFS are trademarks of Spinnaker Networks in the United States.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 24-Jun-2003
