SPECsfs97_R1.v3 Result

IBM Corporation :	IBM eServer pSeries 690 (1.7GHz, TCP)
SPECsfs97_R1.v3 =	136200 Ops/Sec (Overall Response Time = 1.02 msec)

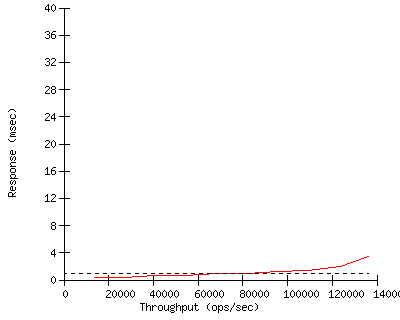

Performance

Throughput (ops/sec)	Response (msec)
13528	0.4
27050	0.4
40662	0.6
54389	0.7
68184	0.9
81875	1.0
95572	1.2
109079	1.4
123557	2.0
136200	3.4

Configuration

Server Configuration and Availability
Vendor	IBM Corporation
Hardware Available	July 2003
Software Available	September 2003
Date Tested	October 2003
SFS License Number	11
Licensee Locations	Austin, Texas

CPU, Memory and Power

Model Name IBM eServer pSeries 690 (1.7GHz, TCP)

Processor 1.7GHz POWER4+

# of Processors 16

Primary Cache 64KBI+32KBD on chip per CPU

Secondary Cache 1536KB unified on chip per die

Other Cache 128MB unified off chip per MCM

UPS N/A

Other Hardware N/A

Memory Size 128 GB

NVRAM Size 16 GB (16 x 1GB)

NVRAM Type 1GB battery-backed DRAM per controller

NVRAM Description 5-day battery; cache bypass on battery failure

Server Software

OS Name and Version AIX 5L V5.2 (64-bit)

Other Software N/A

File System JFS and Enhanced JFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 1

Fileset Size 1295.8 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit
Network Controller Desc.	IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter
Number Networks	14 (N1-N14)
Number Network Controllers	14
Protocol Type	TCP

Switch Type N/A

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 17

Number of Disks 561

Number of Filesystems 112 (F1-F112)

File System Creation Ops default

File System Config See Other Notes

Disk Controller Wide/Ultra-3 SCSI I/O Controller

# of Controller Type 1

Number of Disks 1

Disk Type 36.4GB 10Krpm 16-bit SCSI

File Systems on Disks OS, page space

Special Config Notes N/A

Disk Controller IBM Fiber Channel Adapter (2Gbps)

# of Controller Type 16

Number of Disks 560

Disk Type 18.2GB 15Krpm 2Gb FC

File Systems on Disks F1-F7,F8-F14,F15-F21,F22-F28,...,F107-F112

Special Config Notes See Other Notes

Load Generator (LG) Configuration
Number of Load Generators	14
Number of Processes per LG	32
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model IBM eServer pSeries 630 Model 6E4

Number and Type Processors 2 x 1.2GHz POWER4+

Memory Size 4 GB

Operating System AIX 5L V5.2

Compiler N/A, SFS97_R1 pre-compiled binaries

Compiler Options N/A

Network Type IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,F99,F106,F2,F9,F16,...,F93,F100,F107 N/A

2 LG1 N2 F3,F10,F17,F24,F31,F38,F45,F52,F59,F66,F73,F80,F87,F94,F101,F108,F4,F11,F18,...,F95,F102,F109 N/A

3 LG1 N3 F5,F12,F19,F26,F33,F40,F47,F54,F61,F68,F75,F82,F89,F96,F103,F110,F6,F13,F20,...,F97,F104,F111 N/A

4 LG1 N4 F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98,F105,F112,F1,F8,F15,...,F92,F99,F106 N/A

5 LG1 N5 F2,F9,F16,F23,F30,F37,F44,F51,F58,F65,F72,F79,F86,F93,F100,F107,F3,F10,F17,...,F94,F101,F108 N/A

6 LG1 N6 F4,F11,F18,F25,F32,F39,F46,F53,F60,F67,F74,F81,F88,F95,F102,F109,F5,F12,F19,...,F96,F103,F110 N/A

7 LG1 N7 F6,F13,F20,F27,F34,F41,F48,F55,F62,F69,F76,F83,F90,F97,F104,F111,F7,F14,F21,...,F98,F105,F112 N/A

8 LG1 N8 F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,F99,F106,F2,F9,F16,...,F93,F100,F107 N/A

9 LG1 N9 F3,F10,F17,F24,F31,F38,F45,F52,F59,F66,F73,F80,F87,F94,F101,F108,F4,F11,F18,...,F95,F102,F109 N/A

10 LG1 N10 F5,F12,F19,F26,F33,F40,F47,F54,F61,F68,F75,F82,F89,F96,F103,F110,F6,F13,F20,...,F97,F104,F111 N/A

11 LG1 N11 F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98,F105,F112,F1,F8,F15,...,F92,F99,F106 N/A

12 LG1 N12 F2,F9,F16,F23,F30,F37,F44,F51,F58,F65,F72,F79,F86,F93,F100,F107,F3,F10,F17,...,F94,F101,F108 N/A

13 LG1 N13 F4,F11,F18,F25,F32,F39,F46,F53,F60,F67,F74,F81,F88,F95,F102,F109,F5,F12,F19,...,F96,F103,F110 N/A

14 LG1 N14 F6,F13,F20,F27,F34,F41,F48,F55,F62,F69,F76,F83,F90,F97,F104,F111,F7,F14,F21,...,F98,F105,F112 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,F99,F106,F2,F9,F16,...,F93,F100,F107	N/A
2	LG1	N2	F3,F10,F17,F24,F31,F38,F45,F52,F59,F66,F73,F80,F87,F94,F101,F108,F4,F11,F18,...,F95,F102,F109	N/A
3	LG1	N3	F5,F12,F19,F26,F33,F40,F47,F54,F61,F68,F75,F82,F89,F96,F103,F110,F6,F13,F20,...,F97,F104,F111	N/A
4	LG1	N4	F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98,F105,F112,F1,F8,F15,...,F92,F99,F106	N/A
5	LG1	N5	F2,F9,F16,F23,F30,F37,F44,F51,F58,F65,F72,F79,F86,F93,F100,F107,F3,F10,F17,...,F94,F101,F108	N/A
6	LG1	N6	F4,F11,F18,F25,F32,F39,F46,F53,F60,F67,F74,F81,F88,F95,F102,F109,F5,F12,F19,...,F96,F103,F110	N/A
7	LG1	N7	F6,F13,F20,F27,F34,F41,F48,F55,F62,F69,F76,F83,F90,F97,F104,F111,F7,F14,F21,...,F98,F105,F112	N/A
8	LG1	N8	F1,F8,F15,F22,F29,F36,F43,F50,F57,F64,F71,F78,F85,F92,F99,F106,F2,F9,F16,...,F93,F100,F107	N/A
9	LG1	N9	F3,F10,F17,F24,F31,F38,F45,F52,F59,F66,F73,F80,F87,F94,F101,F108,F4,F11,F18,...,F95,F102,F109	N/A
10	LG1	N10	F5,F12,F19,F26,F33,F40,F47,F54,F61,F68,F75,F82,F89,F96,F103,F110,F6,F13,F20,...,F97,F104,F111	N/A
11	LG1	N11	F7,F14,F21,F28,F35,F42,F49,F56,F63,F70,F77,F84,F91,F98,F105,F112,F1,F8,F15,...,F92,F99,F106	N/A
12	LG1	N12	F2,F9,F16,F23,F30,F37,F44,F51,F58,F65,F72,F79,F86,F93,F100,F107,F3,F10,F17,...,F94,F101,F108	N/A
13	LG1	N13	F4,F11,F18,F25,F32,F39,F46,F53,F60,F67,F74,F81,F88,F95,F102,F109,F5,F12,F19,...,F96,F103,F110	N/A
14	LG1	N14	F6,F13,F20,F27,F34,F41,F48,F55,F62,F69,F76,F83,F90,F97,F104,F111,F7,F14,F21,...,F98,F105,F112	N/A

Other Notes

There are 8 IBM TotalStorage FAStT700 Storage Server units attached to
the SUT. Each FAStT700 contains 2 controllers. Each controller is
connected to an FC adapter. Also, each controller has a 1GB cache.
Writes to either cache are mirrored in the other such that the total
effective write cache is 1GB per FAStT700. There are 5 EXP700 expansion
units connected to each FAStT700. Every EXP700 contains 14 physical
disks. A logical disk is composed of 5 physical disks in a RAID-5
configuration. There is one test filesystem per logical disk.
JFS used for the OS, Enhanced JFS used for the test filesystems (F1-F112).
The size of each test filesystem log is 256MB.
MCM stands for Multi-Chip Module. There are 2 MCMs in the SUT. There are
4 dies per MCM. There are 2 CPUs per die.
There were 2 external 7040-61D I/O drawer used in this configuration.
7 Gigabit Ethernet and 8 Fiber Channel adapters were placed in each
drawer.
Using jumbo frames (9000-byte MTU) over Gigabit Ethernet.
Server tuning: Gigabit Ethernet adapter jumbo_frames=yes,
nfs_server_base_priority=80, nfs_server_clread=0
Client tuning: Gigabit Ethernet adapter jumbo_frames=yes
The number of NFS daemons (nfsd threads) is dynamic.
APARs IY36772, IY43591, IY46607, and IY47398 applied on AIX 5L V5.2.

First published at SPEC.org on 28-Oct-2003

LG Type	LG1
LG Model	IBM eServer pSeries 630 Model 6E4
Number and Type Processors	2 x 1.2GHz POWER4+
Memory Size	4 GB
Operating System	AIX 5L V5.2
Compiler	N/A, SFS97_R1 pre-compiled binaries
Compiler Options	N/A
Network Type	IBM 10/100/1000 Base-TX Ethernet PCI-X Adapter
