SPECsfs97_R1.v3 Result

EMC Corp. :Celerra NS704G Failover Cluster / CLARiiON CX700x2
SPECsfs97_R1.v3 =100150 Ops/Sec (Overall Response Time = 2.63 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
91010.9
183401.1
274581.5
365491.9
457582.2
550902.5
641682.9
736173.4
830774.0
921544.9
1001508.3

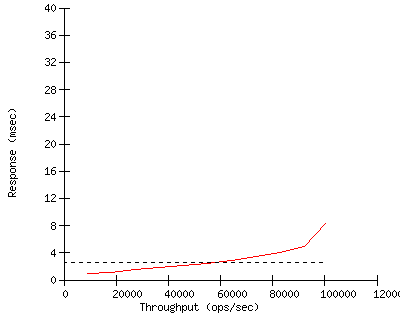

Performance Graph


Configuration

Server Configuration and Availability
Vendor EMC Corp.
Hardware Available September 2004
Software AvailableSeptember 2004
Date TestedAugust 2004
SFS License Number47
Licensee LocationsHopkinton, MA

CPU, Memory and Power
Model Name Celerra NS704G Failover Cluster / CLARiiON CX700x2
Processor 3.06 GHz Intel Xeon P4
# of Processors 6 cores, 6 chips, 1 core/chip with HT Technology enabled (2 chips per Data Mover)
Primary Cache Execution Trace Cache 12K uOPs + Data Cache 8KB
Secondary Cache 512KB (unified)
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 12 GB (4 GB per Data Mover)
NVRAM Size N/A
NVRAM Type N/A
NVRAM DescriptionN/A

Server Software
OS Name and VersionDART 5.3
Other Software Linux 2.4.9-34.5306.EMC on Control Station
File System UxFS
NFS version 3

Server Tuning
Buffer Cache Size Dynamic
# NFS Processes 4
Fileset Size 965.3 GB

Network Subsystem
Network Type Jumbo Gigabit Ethernet
Network Controller Desc. Gigabit Ethernet Controller
Number Networks 1
Number Network Controllers6 (2 per Data Mover)
Protocol Type TCP

Switch Type Cisco 6509 Gbit Switch (Jumbo)
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 6 [2 per active Data Mover]
Number of Disks 298
Number of Filesystems 3
File System Creation OpsN/A
File System Config Each filesystem is striped (8KB element size), across 96 disks (32 LUNs) for fs1, fs2 and fs3

Disk Controller Integrated 2Gb Fibre Channel
# of Controller Type 6 [2 per active Data Mover]
Number of Disks 294 (dual ported)
Disk Type Seagate Fibre Channel 146GB 10k-rpm
File Systems on Disks Filesystem fs1 (96); Filesystem fs2 (96); Filesystem fs3 (96); Storage utility, OS, and UxFS Log (5); Second Storage utility (5)
Special Config Notes 4GB cache per SP on the storage arrays. 3072 MB of that 4GB cache is mirrored write cache. See notes below.

Load Generator (LG) Configuration
Number of Load Generators 24
Number of Processes per LG30
Biod Max Read Setting 5
Biod Max Write Setting 5

LG Type LG1
LG Model Sun SPARC 220R
Number and Type Processors2 x 450 GHz SPARC
Memory Size 512 MB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserve Gbe

LG Type LG2
LG Model Sun SPARC 420R
Number and Type Processors2 x 450 GHz SPARC
Memory Size 1 GB
Operating System Solaris 2.8
Compiler Sun Forte 6.2
Compiler Options None
Network Type Intraserve Gbe

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1..12LG11/fs1, /fs2, /fs3N/A
13..24LG21/fs1, /fs2, /fs3N/A


Other Notes


Generated on Tue Aug 31 17:02:37 2004 by SPEC SFS97 HTML Formatter
Copyright © 1997-2004 Standard Performance Evaluation Corporation

First published at SPEC.org on 31-Aug-2004
