SPECsfs97_R1.v3 Result

Exacube Systems Inc. :	Netbine500
SPECsfs97_R1.v3 =	15014 Ops/Sec (Overall Response Time = 1.30 msec)

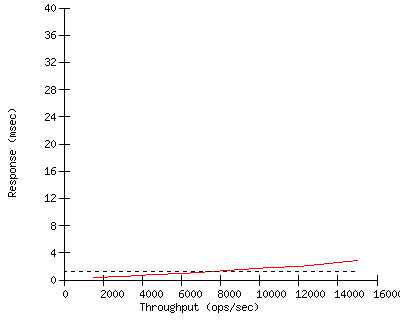

Performance

Throughput (ops/sec)	Response (msec)
1517	0.3
3048	0.5
4584	0.8
6043	1.0
7577	1.3
9061	1.5
10561	1.8
12058	2.0
13525	2.4
15014	2.9

Configuration

Server Configuration and Availability
Vendor	Exacube Systems Inc.
Hardware Available	Jan 2004
Software Available	Jan 2004
Date Tested	Oct 2004
SFS License Number	2978
Licensee Locations	Songnam, Korea

CPU, Memory and Power

Model Name Netbine500

Processor Intel Xeon 2.8 Ghz

# of Processors 4 cores, 4 chips, 1 core/chip (2 cores per node)

Primary Cache Execution Trace Cache 12K uOPs + Data Cache 8KB on chip

Secondary Cache 512KB (I+D) on chip

Other Cache N/A

UPS APC SmartUPS 1000

Other Hardware N/A

Memory Size 4 GB (2 GB per node)

NVRAM Size 5 GB (all node memory is UPS protected, and 512MB per RAID controller)

NVRAM Type Node: UPS-protected DRAM, RAID controller: Battery backed RAM

NVRAM Description See notes

Server Software

OS Name and Version ClusStor 3.2

Other Software N/A

File System XFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 256

Fileset Size 145.1 GB

Network Subsystem
Network Type	Gigabit Ethernet (MTU 1500 bytes)
Network Controller Desc.	Intel PRO/1000 1000BASE-T
Number Networks	4 (2 per node: 1 port for service, 1 port for cluster)
Number Network Controllers	2 (N1 - Service, N2 - Cluster)
Protocol Type	UDP

Switch Type 3Com SuperStack 3 network switch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 4 (2 per node)

Number of Disks 12

Number of Filesystems 2

File System Creation Ops N/A

File System Config Each file system is RAID level 5(128KB element size), across 6 disks(1 LUN)

Disk Controller QLogic QLA2300

# of Controller Type 4 (2 per node)

Number of Disks 12

Disk Type Seagate 146GB FC Disk 10K RPM

File Systems on Disks F1,F2

Special Config Notes See notes

Load Generator (LG) Configuration
Number of Load Generators	2
Number of Processes per LG	20
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Intel SR2200

Number and Type Processors 2 x Pentium III 1.0 Ghz

Memory Size 512 MB

Operating System Linux RedHat 9.0

Compiler gcc 3.2.2

Compiler Options default

Network Type Intel PRO/1000 1000BASE-T

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 N1 F1,F2 N/A

2 LG1 N1 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	N1	F1,F2	N/A
2	LG1	N1	F1,F2	N/A

Other Notes

We set NFS share access through insecure port larger than 1024.
RAID controller's disk cache size is 512MB (Disk cache can be extended to 1 GB).
NVRAM: Each RAID controller has 512 MB of write-back cache (72 hours battery-backed).
Each NAS server and RAID was connected with 2 ports through 2 Gbps FC link.
Netbine500 has two RAID controllers, which were configured active-standby failover.
The RAID is configured with 2 LUNs. Each LUN has 6 disks with RAID level 5 and the stripe size is 128 KB.
Each NAS server has onboard Adaptec U320 SCSI controller for OS disks.
Two OS disks in a NAS server are mirrored with software RAID 1 for failure protection.
Uniform Access Rules:
Each node has 1 network port(N1) for NFS service connected with the LGs.
Each node has 1 network port(N2) for cluster operation connected with each node in the cluster.
There are two LUNs in the RAID. A file system consists of one LUN.
Each LG has 20 processes and the 10 processes access F1 via active server and the other 10 processes access F2.
Stable Storage:
There is an integral UPS for each NAS server, which guarantees sufficient power in the event of power failure.
The irrecoverable power failure detected by UPS, the active NAS server flushes all data safely and shutdown to failover.
Buffer cache mirroring are performed between active node and standby node to prevent data loss in buffer cache.
If active node fails in H/W, OS or some media, the standby node takes over all services and data without any loss.
When the cluster is recovered, all written data in buffer cache are flushed and cache mirroring is started.

First published at SPEC.org on 09-Nov-2004

LG Type	LG1
LG Model	Intel SR2200
Number and Type Processors	2 x Pentium III 1.0 Ghz
Memory Size	512 MB
Operating System	Linux RedHat 9.0
Compiler	gcc 3.2.2
Compiler Options	default
Network Type	Intel PRO/1000 1000BASE-T
