SPECsfs97_R1.v3 Result

EMC Corp. :	Celerra NSX Cluster 4 X-Blade 60 (1 stdby) DMX
SPECsfs97_R1.v3 =	137310 Ops/Sec (Overall Response Time = 1.48 msec)

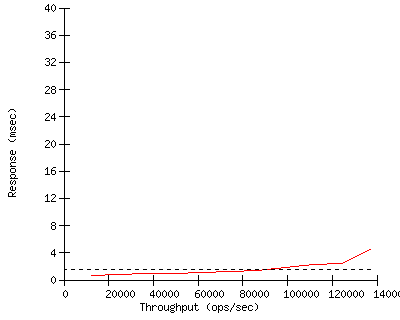

Performance

Throughput (ops/sec)	Response (msec)
12276	0.7
24585	0.8
36913	0.9
49313	1.0
61729	1.1
74257	1.2
86482	1.4
98974	1.9
111539	2.3
123966	2.5
137310	4.5

Configuration

Server Configuration and Availability
Vendor	EMC Corp.
Hardware Available	May 2005
Software Available	May 2005
Date Tested	April 2005
SFS License Number	47
Licensee Locations	Hopkinton, MA

CPU, Memory and Power

Model Name Celerra NSX Cluster 4 X-Blade 60 (1 stdby) DMX

Processor Intel 3.4 GHz Nocona

# of Processors 6 cores, 6 chips, 1 core/chip with HT Technology enabled (2 chips per blade)

Primary Cache 16KB Data + 12k instruction uOPs

Secondary Cache 1MB (unified)

Other Cache N/A

UPS N/A

Other Hardware N/A

Memory Size 12 GB (4 GB per blade)

NVRAM Size N/A

NVRAM Type N/A

NVRAM Description N/A

Server Software

OS Name and Version DART 5.4

Other Software --

File System UxFS

NFS version 3

Server Tuning

Buffer Cache Size Dynamic

# NFS Processes 12 (4 per blade)

Fileset Size 1297.7 GB

Network Subsystem
Network Type	Jumbo Gigabit Ethernet
Network Controller Desc.	Gigabit Ethernet Controller
Number Networks	1
Number Network Controllers	6 (2 per blade)
Protocol Type	TCP

Switch Type Cisco 6509 Gbit Switch (Jumbo)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 6 (2 per blade)

Number of Disks 300

Number of Filesystems 3

File System Creation Ops N/A

File System Config Each file system is striped across 50 pairs of disks formed into RAID-1 LUNs with 32K stripe element size. An additional RAID-1 LUN is used for all three file system logs.

Disk Controller Integrated 2Gb Fibre Channel

# of Controller Type 1

Number of Disks 302

Disk Type 10K RPM 146GB Fibre Channel (part #100-880-285)

File Systems on Disks File systems fs1..fs3 (50 RAID-1 LUNs), UxFS log (RAID-1 LUN)

Special Config Notes 128GB memory on Symmetrix DMX3000. Two DS3282 fibre channels switches (see storage notes)

Load Generator (LG) Configuration
Number of Load Generators	18
Number of Processes per LG	36
Biod Max Read Setting	5
Biod Max Write Setting	5

LG Type LG1

LG Model Dell 1850

Number and Type Processors 2 x 3.6 GHz Intel P4 Xeon

Memory Size 1 GB

Operating System Linux 2.4.20-6smp

Compiler GCC 3.2.2

Compiler Options None

Network Type Dual embedded Intel Gigabit 82541 Server Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1..18 LG1 1 /fs1../fs3 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1..18	LG1	1	/fs1../fs3	N/A

Other Notes

Failover is supported by an additional blade that operates in
standby mode. In the event of any blade failure, this unit takes over the
function of the failed unit. The standby blade does not contribute to
the performance of the system and is not included in the processor, memory,
or other components listed above.
Server blade tuning:
param ufs inoBlkHashSize=170669 (inode block hash size)
param ufs inoHashTableSize=1218761 (inode hash table size)
param ufs updateAccTime=0 (disable access-time updates)
param nfs withoutCollector=1 (enable NFS-to-CPU thread affinity)
param file prefetch=0 (disable DART read prefetch)
param mkfsArgs dirType=DIR_COMPAT (Compatibility mode directory style)
param kernel maxStrToBeProc=16 (no. of network streams to process at once)
param kernel outerLoop=8 (8 consecutive iterations of network packets processing)
param kernel buffersWatermarkPercentage=5 (flushing buffer cache threshold)
file initialize nodes=1000000 dnlc=1656000 (no. of inodes, no. of directory name lookup cache entries)
nfs start openfiles=980462 nfsd=4 (no. of open files and 4 NFS daemons)
param ufs nFlushCyl=32 (no. of UxFS cylinder group blocks flush threads)
param ufs nFlushDir=32 (no. of UxFS directory and indirect blocks flush threads)
param ufs nFlushIno=32 (no. of UxFS inode blocks flush threads)
Storage array notes:
The DMX3000 used for storage exposes LUNs across multiple Fibre ports.
Each file system is built on a stripe that spans 14386MB RAID-1 LUN.
There are two disk controllers per blade, one port each. Each port is
connected to one of the fibre channel switches so that each blade has one link
per switch. Each link on each switch is zoned to four Symmetrix fibre channel
directors (HBA) with one HBA to one HBA zone.
The DMX3000 was configured with 128GB memory. The memory is backed up with
sufficient battery power to safely destage all cached data onto the disk in
the event of a power failure.

First published at SPEC.org on 24-May-2005

LG Type	LG1
LG Model	Dell 1850
Number and Type Processors	2 x 3.6 GHz Intel P4 Xeon
Memory Size	1 GB
Operating System	Linux 2.4.20-6smp
Compiler	GCC 3.2.2
Compiler Options	None
Network Type	Dual embedded Intel Gigabit 82541 Server Adapter
