SPECsfs97_R1.v3 Result

Network Appliance, Inc. :	FAS3020c

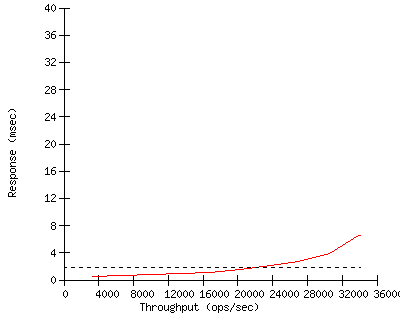

SPECsfs97_R1.v3 =	34089 Ops/Sec (Overall Response Time = 1.77 msec)

Performance

Throughput (ops/sec)	Response (msec)
3332	0.5
6753	0.6
10084	0.8
13410	0.9
16891	1.1
20348	1.6
23704	2.1
27010	2.7
30563	3.9
33922	6.5
34089	6.6

Configuration

Server Configuration and Availability
Vendor	Network Appliance, Inc.
Hardware Available	May 2005
Software Available	May 2005
Date Tested	May 2005
SFS License Number	33
Licensee Locations	Sunnyvale, CA

CPU, Memory and Power

Model Name FAS3020c

Processor 2.8-GHz Intel Xeon Processor

# of Processors 2 cores, 2 chips, 1 core/chip (HT enabled)

Primary Cache 12 K uops I + 8 KB D

Secondary Cache 512 KB on-die

Other Cache N/A

UPS none

Other Hardware X3154A NVRAM/cluster interconnect adapter (see notes)

Memory Size 4096 MB (2048 MB per node)

NVRAM Size 1024 MB (512 MB per node)

NVRAM Type DIMMs on PCI cards

NVRAM Description minimum 7-day battery-backed shelf-life

Server Software

OS Name and Version Data ONTAP 7.0.1R1

Other Software Cluster Option

File System WAFL

NFS version 3

Server Tuning

Buffer Cache Size default

# NFS Processes N/A

Fileset Size 324.9 GB

Network Subsystem
Network Type	Jumbo Frame Gigabit Ethernet
Network Controller Desc.	integrated Intel 82546 10/100/1000 Ethernet
Number Networks	1 (N1)
Number Network Controllers	2 (1 per node)
Protocol Type	TCP

Switch Type Cisco 6509 (N1)

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 2 (1 per node)

Number of Disks 164

Number of Filesystems 2

File System Creation Ops default

File System Config 5 RAID-DP (Double Parity) groups of 16 disks each

Disk Controller integrated dual-channel QLogic ISP-2322 FC Controller (4MB RAM standard)

# of Controller Type 2

Number of Disks 84/84

Disk Type X273A 72GB 15K RPM FC-AL

File Systems on Disks F1/F2

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	40
Number of Processes per LG	6
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model Supermicro SuperServer 6010H

Number and Type Processors 2 x 1.0-GHz Pentium III

Memory Size 1024 MB

Operating System SunOS 5.8 Generic_108529-11 i86pc i386

Compiler cc, used SFS97_R1 Precompiled Binaries

Compiler Options N/A

Network Type Intel Pro/1000 T Server Adapter

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1/2/../40 LG1 N1 F1,F2 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1/2/../40	LG1	N1	F1,F2	N/A

Other Notes

NetApp's embedded operating system processes NFS requests from the network layer without any NFS daemons, and uses non-volatile memory to improve performance.
All standard data protection features, including background RAID and media error scrubbing, software validated RAID checksumming, and double disk failure protection via double parity RAID (RAID-DP) were enabled during the test.
The tested system was a failover cluster comprised of two nodes joined by a cluster interconnect (integrated on the NVRAM card).
The cluster option was licensed and enabled.
Each disk controller had two 2Gbit/s FC-AL ESH (Electronically Switched Hub) loops, one primary and one secondary. Only the primary loops were active.
Each node was the owner of a single disk pool or "aggregate".
Each aggregate was composed of five RAID-DP groups, each RAID-DP group was composed of 14 data disks and 2 parity disks.
Within each aggregate, a flexible volume (utilizing DataONTAP FlexVol (TM) technology) was created to hold the SFS filesystem for that node.
The F1 filesystem was striped across the disks in the aggregate on the primary loop of the first node. The F2 filesystem was striped across the disks in the aggregate on the primary loop of the second node.
Each node was the owner of one filesystem, but the disks in each aggregate were dual-attached so that, in the event of a fault, they could be controlled by the other node via a secondary loop.
Two spare disks were present on each node.
Two disks on each node held the DataONTAP operating system and system files.
All network ports were set to use jumbo frames (MTU=9000).
Server tunings:
- date 0801 -- set clock to 8:01am for reproducibility
- options no_atime_on 1 -- to disable access time update
- options minra 1 -- to minimize file read-ahead
NetApp is a registered trademark and "Data ONTAP", "Network Appliance", "FlexVol", and "WAFL" are trademarks of Network Appliance, Inc. in the United States and other countries.
All other trademarks belong to their respective owners and should be treated as such.

First published at SPEC.org on 07-Jun-2005

LG Type	LG1
LG Model	Supermicro SuperServer 6010H
Number and Type Processors	2 x 1.0-GHz Pentium III
Memory Size	1024 MB
Operating System	SunOS 5.8 Generic_108529-11 i86pc i386
Compiler	cc, used SFS97_R1 Precompiled Binaries
Compiler Options	N/A
Network Type	Intel Pro/1000 T Server Adapter
