SPECsfs97_R1.v3 Result

BlueArc Corporation :	BlueArc Titan 2200
SPECsfs97_R1.v3 =	98131 Ops/Sec (Overall Response Time = 2.34 msec)

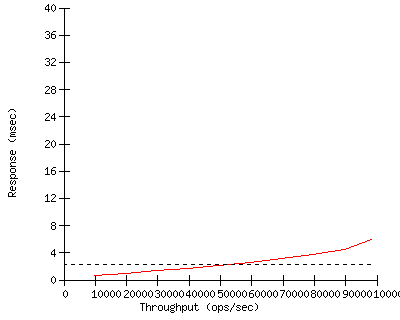

Performance

Throughput (ops/sec)	Response (msec)
9824	0.7
19778	1.0
29573	1.4
39576	1.7
49465	2.1
59557	2.6
69544	3.1
79543	3.7
89640	4.5
98131	5.9

Configuration

Server Configuration and Availability
Vendor	BlueArc Corporation
Hardware Available	February 2006
Software Available	March 2006
Date Tested	November 2005
SFS License Number	000063
Licensee Locations	San Jose, California, USA

CPU, Memory and Power

Model Name BlueArc Titan 2200

Processor MPC7457 POWERPC 1.267GHz + FPGAs (see notes on FPGAs)

# of Processors 1 core, 1 chip, 1 core/chip + 7 FPGAs

Primary Cache 32KBI + 32KBD on chip

Secondary Cache 512KB (I+D) on chip

Other Cache 8 GB

UPS n/a

Other Hardware System Management Unit (SMU) - see notes

Memory Size 23.8 GB (not including other_cache_size or NVRAM)

NVRAM Size 2 GB

NVRAM Type DIMM

NVRAM Description 72 hour battery backed

Server Software

OS Name and Version BlueArc Titan SU4.2

Other Software no

File System BlueArc Silicon File System with CNS

NFS version 3

Server Tuning

Buffer Cache Size n/a

# NFS Processes n/a

Fileset Size 947.6 GB

Network Subsystem
Network Type	Integrated
Network Controller Desc.	6-port, 1Gbps/port, Ethernet
Number Networks	1 (N1)
Number Network Controllers	1
Protocol Type	TCP

Switch Type Force10 Networks S50 Data Center Switch

Bridge Type n/a

Hub Type n/a

Other Network Hardware no

Disk Subsystem and Filesystems

Number Disk Controllers 1

Number of Disks 208

Number of Filesystems 1 namespace (see notes)

File System Creation Ops 4K block size, CNS enabled

File System Config 8 inidividual file system volumes aggregated using CNS to present a single, unified namespace

Disk Controller Integrated, 4-port, 4Gbps FC, each running at 2 Gbps

# of Controller Type 1

Number of Disks 208

Disk Type 73GB, 15000 RPM FC, Seagate ST373454FC

File Systems on Disks F1

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	12
Number of Processes per LG	48
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model AMAX 1U

Number and Type Processors 2 x 2.8GHz Intel Xeon

Memory Size 1 GB

Operating System Redhat Linux 8.0

Compiler SFS97_R1 precompiled

Compiler Options n/a

Network Type Integrated Intel Pro/1000MT

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

2 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

3 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

4 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

5 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

6 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

7 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

8 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

9 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

10 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

11 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

12 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
2	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
3	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
4	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
5	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
6	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
7	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
8	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
9	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
10	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
11	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A
12	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7	N/A

Other Notes

The tested system was BlueArc Titan 2200 with high memory option installed and all standard protection services enabled, including RAID, NVRAM logging, and media error scrubbing.
Titan uses Field Programmable Gate Arrays to accelerate processing of network traffic and file system I/O. 7 FPGAs are used for NFS processing out of a total of 12 FPGAs in the system.
The test system included eight dual controller FC-14C disk arrays where each FC-14C has a single FC-14E expansion enclosure connected to it, for a total of 208 disks. Eight file system volumes were configured, each spanning two 12+1 RAID 5 arrays. The eight file system volumes were aggregated and presented to the network as a single, unified namespace by the BlueArc Titan Silicon File System with Cluster Name Space (CNS) enabled.
The redundant disk array controller ports were each attached to redundant Brocade 4100 FC switches, which were in turn connected to the Titan 2100 to provide a completely redundant switched fabric path between the Titan 2100 and all disk arrays.
The SMU provides a system management interface for the complete Titan storage solution
Jumbo frames were not enabled
For Uniform Access Rule compliance all LG's accessed all cluster namespace objects uniformly across all interfaces.
For example:
S11-16 = Server 1, network ports 1-6
F1 = cluster namespace root (representing 8 filesystem objects across the entire storage)
R1-8 = cluster namespace objects rooted to this server
Each LG then has balanced access to:
S11:F1/R1-8, S12:F1/R1-8, S13:F1/R1-8, S14:F1/R1-8, S15:F1/R1-8, S16:F1/R1-8
Titan 2200 has 33.8 gigabytes (GB) of of memory, cache and NVRAM distributed as follows:
NIM (Network Interface Module) - 2.8 GB memory
FSA (File System - A) - 4.0 GB memory
FSB (File System - B) - 17.25 GB, of which 2.0 is NVRAM and 14.5 is temporary FS metadata cache. The remaining amount is used for temporary buffering data moving to/from the disk drives and/or network.
SIM (Storage Interface Module) - 9.75 GB, of which 8.0 is "sector" cache used for interface with RAID controllers and disk subsystem.
The 8.0 GB of "other cache size" listed in this submission refers to the 8.0 GB of sector cache in the SIM module.

First published at SPEC.org on 01-Feb-2006

LG Type	LG1
LG Model	AMAX 1U
Number and Type Processors	2 x 2.8GHz Intel Xeon
Memory Size	1 GB
Operating System	Redhat Linux 8.0
Compiler	SFS97_R1 precompiled
Compiler Options	n/a
Network Type	Integrated Intel Pro/1000MT
