SPECsfs97_R1.v3 Result

BlueArc Corporation :	BlueArc Titan 2200, 2-Node Active/Active Cluster
SPECsfs97_R1.v3 =	195502 Ops/Sec (Overall Response Time = 2.37 msec)

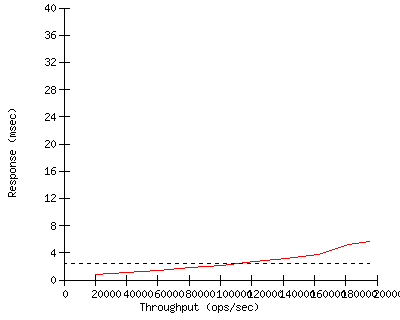

Performance

Throughput (ops/sec)	Response (msec)
20208	0.8
40214	1.1
60618	1.4
80937	1.8
101499	2.2
121719	2.7
142104	3.1
162759	3.7
181640	5.2
195502	5.6

Configuration

Server Configuration and Availability
Vendor	BlueArc Corporation
Hardware Available	January 2006
Software Available	March 2006
Date Tested	November 2005
SFS License Number	000063
Licensee Locations	San Jose, California, USA

CPU, Memory and Power

Model Name BlueArc Titan 2200, 2-Node Active/Active Cluster

Processor MPC7457 POWERPC 1.267GHZ + FPGAs (see notes on FPGAs)

# of Processors 2 cores, 2 chips, 1 core/chip (with 14 FPGAs, 7 per node)

Primary Cache 32KBI + 32KBD on chip (per chip)

Secondary Cache 512KB(I+D) on chip (per chip)

Other Cache 16 GB

UPS N/A

Other Hardware System Management Unit (SMU) - see notes; Four 10Gbit Ethernet Cluster Interconnect Ports, 2 per node

Memory Size 47.6 GB (not including other_cache_size and NVRAM)

NVRAM Size 4 GB

NVRAM Type DIMM

NVRAM Description 72 hour battery backed

Server Software

OS Name and Version BlueArc Titan SU4.2

Other Software N/A

File System BlueArc Silicon File System with Cluster Name Space (CNS)

NFS version 3

Server Tuning

Buffer Cache Size N/A

# NFS Processes N/A

Fileset Size 1935.5 GB

Network Subsystem
Network Type	Integrated
Network Controller Desc.	6-port, 1Gbps Ethernet
Number Networks	1 (N1)
Number Network Controllers	2
Protocol Type	TCP

Switch Type Force10 Networks S50 Data Center Switch

Bridge Type N/A

Hub Type N/A

Other Network Hardware N/A

Disk Subsystem and Filesystems

Number Disk Controllers 2

Number of Disks 416

Number of Filesystems single namespace (see notes)

File System Creation Ops 4K block size, CNS enabled

File System Config 16 Individual file system volumes aggregated using CNS to present a single, unified namespace, 8 volumes per node

Disk Controller Integrated quad-port, 4Gbps FC, each running at 2Gbps

# of Controller Type 2

Number of Disks 208

Disk Type 73GB x 15,000 RPM, Seagate ST373454FC

File Systems on Disks F1

Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators	28
Number of Processes per LG	32
Biod Max Read Setting	2
Biod Max Write Setting	2

LG Type LG1

LG Model AMAX 1U

Number and Type Processors 2x2.8Ghz Xeon

Memory Size 1GB

Operating System Redhat Linux 8.0

Compiler SFS97_R1 precompiled

Compiler Options N/A

Network Type Integrated Intel Pro/1000MT

Testbed Configuration

LG # LG Type Network Target File Systems Notes

1 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

2 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

3 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

4 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

5 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

6 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

7 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

8 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

9 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

10 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

11 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

12 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

13 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

14 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

15 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

16 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

17 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

18 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

19 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

20 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

21 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

22 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

23 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

24 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

25 LG1 1 /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0 N/A

26 LG1 1 /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2 N/A

27 LG1 1 /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4 N/A

28 LG1 1 /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6 N/A

Testbed Configuration
LG #	LG Type	Network	Target File Systems	Notes
1	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
2	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
3	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
4	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A
5	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
6	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
7	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
8	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A
9	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
10	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
11	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
12	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A
13	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
14	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
15	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
16	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A
17	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
18	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
19	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
20	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A
21	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
22	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
23	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
24	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A
25	LG1	1	/root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0	N/A
26	LG1	1	/root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir3, /root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2	N/A
27	LG1	1	/root/dir4, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir5, /root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4	N/A
28	LG1	1	/root/dir6, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir7, /root/dir8, /root/dir9, /root/dir10, /root/dir11, /root/dir12, /root/dir13, /root/dir14, /root/dir15, /root/dir0, /root/dir1, /root/dir2, /root/dir3, /root/dir4, /root/dir5, /root/dir6	N/A

Other Notes

The tested system was a BlueArc Titan 2200, 2-node Active/Active cluster with high memory option and all standard protection services enabled, including RAID, NVRAM logging, NVRAM mirroring, and media error scrubbing.
Each node was connected to eight dual controller FC-14C disk arrays where each FC-14C has a single FC-14E expansion enclosure connected to it, for a total of 208 disks per node. Sixteen file system volumes were configured (8 per node), each spanning two 12+1 RAID 5 arrays. The sixteen file system volumes were aggregated across both nodes and presented to the network as a single, unified namespace by the BlueArc Titan Silicon File System with Cluster Name Space (CNS) enabled.
The redundant disk array controllers were each attached to redundant Brocade 4100 FC switches, which were in turn connected to both Titan 2200 nodes to provide a completely redundant switched fabric path between the Titan 2200 and all disk arrays, such that any client could access data on any array through any connection to either server node.
Both nodes were connected to a Force10 Ethernet network switche. The system is fully redundant and will fail over to redundant components upon any failure of Titan server, FC Fabric or storage array.
Automatic load balancing was utilized to equalize system drive to FC port workloads
Titan uses Field Programmable Gate Arrays to accelerate processing of network traffic and file system I/O. 7 FPGAs are used for NFS processing per node, out of a total of 12 FPGAs per node.
Server Tuning 1: disable file read-ahead 'fsm read-ahead 0 0'; disable shortname generation for CIFS clients 'shortname -g off'; server running in 'Native Unix' security mode; set metadata cache bias to small files 'fsm cache-bias - small-files'; disable system drive performance monitoring statistics 'sim si-delay-tables off'
The SMU provides a system management interface for the complete Titan storage solution.
Jumbo frames were not enabled in this test.
For UAR compliance, load generators accessed all cluster namespace objects uniformly across both servers in the cluster. This results in 50% of access to each of the servers to be redirected to the other cluster member. The number of potential proc/mount/port/LG combinations is 16x8 = 128 (procs) which we distributed uniformly across all LG's on the same flat network. No routing or bridging was employed so all clients had equal access to all cluster namespace objects, either directly or indirectly (50/50 split), and uniformly, through each cluster member.
For example:
S11-14 = Server 1 - network ports 1-4
S21-24 = Server 2 - network ports 1-4
F1 = cluster namespace root (representing 16 filesystem objects across the entire storage)
R1-8 = cluster namespace objects rooted to server 1
R9-16 = cluster namespace objects rooted to server 2
Each LG with 32 procs has uniform access to all storage, utilizing all network ports, and across every 4 clients, the following accesses are uniformly utilized
(repeated 7 times across 28 LG's):
S11:F1/R1-8, S11:F1/R9-16, S21:F1/R1-8, S21:F1/R9-16
S12:F1/R1-8, S12:F1/R9-16, S22:F1/R1-8, S22:F1/R9-16
S13:F1/R1-8, S13:F1/R9-16, S23:F1/R1-8, S23:F1/R9-16
S14:F1/R1-8, S14:F1/R9-16, S24:F1/R1-8, S24:F1/R9-16
Note that should a server fail in the cluster, all cluster namespace objects are still available to all clients via the remaining server.
Each Titan 2200 in this cluster has 34.5 gigabytes (GB) of of memory, cache and NVRAM distributed as follows:
NIM (Network Interface Module) - 2.8 GB memory
FSA (File System - A) - 4.0 GB memory
FSB (File System - B) - 17.25 GB, of which 2.0 is NVRAM and 14.5 is temporary FS metadata cache. The remaining amount is used for temporary buffering data moving to/from the disk drives and/or network.
SIM (Storage Interface Module) - 9.75 GB, of which 8.0 is "sector" cache used for interface with RAID controllers and disk subsystem.
The 16.0 GB of "other cache size" listed in this submission refers to the 8.0 GB of sector cache in each SIM module.

First published at SPEC.org on 01-Feb-2006

LG Type	LG1
LG Model	AMAX 1U
Number and Type Processors	2x2.8Ghz Xeon
Memory Size	1GB
Operating System	Redhat Linux 8.0
Compiler	SFS97_R1 precompiled
Compiler Options	N/A
Network Type	Integrated Intel Pro/1000MT
