SPECsfs97_R1.v3 Result

Pillar Data Systems :Axiom 500
SPECsfs97_R1.v3 =54431 Ops/Sec (Overall Response Time = 1.37 msec)


Performance

Throughput
(ops/sec)
Response
(msec)
54170.6
108250.7
162430.9
216941.0
271081.2
326071.4
381051.7
435652.1
491372.4
544313.4

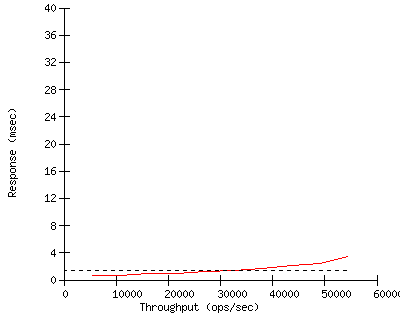

Performance Graph


Configuration

Server Configuration and Availability
Vendor Pillar Data Systems
Hardware Available September 2006
Software AvailableSeptember 2006
Date TestedMay 2006
SFS License Number1695
Licensee LocationsSan Jose, CA

CPU, Memory and Power
Model Name Axiom 500
Processor 2.4 GHz Intel Pentium-IV Xeon
# of Processors 8 cores, 8 chips, 1 core/chip (4 cores per Slammer)
Primary Cache 8 KB L1 data cache, 12 KB micro-ops trace cache
Secondary Cache 512 KB L2 cache
Other Cache N/A
UPS N/A
Other Hardware N/A
Memory Size 32 GB (16 GB per Slammer)
NVRAM Size 16 GB (8 GB per Slammer)
NVRAM Type Battery-backed DIMM on Mainboard
NVRAM Description3-day battery with Write-Back/Write-Through modes

Server Software
OS Name and VersionAxiomONE Operating System 2.0
Other Software N/A
File System AxiomONE File System
NFS version 3

Server Tuning
Buffer Cache Size 24 GB (12 per Slammer)
# NFS Processes 480 (240 per Slammer)
Fileset Size 517.3 GB

Network Subsystem
Network Type Jumbo Frame Gigabit Ethernet
Network Controller Desc. Integrated Ethernet controller
Number Networks 1 (N1)
Number Network Controllers4 (2 per Slammer)
Protocol Type TCP

Switch Type Foundry Network Fastiron 400
Bridge Type N/A
Hub Type N/A
Other Network Hardware N/A

Disk Subsystem and Filesystems
Number Disk Controllers 32
Number of Disks 384 (12 per Brick)
Number of Filesystems 4 (vol1-vol4)
File System Creation OpsMaximum Throughput
File System Config High priority, random read, standard redundancy

Disk Controller Brick (see notes)
# of Controller Type 32
Number of Disks 384 (12 per Brick)
Disk Type Hitachi SATA 160GB 7200RPM
File Systems on Disks vol1-vol4
Special Config Notes see notes

Load Generator (LG) Configuration
Number of Load Generators 14
Number of Processes per LG12
Biod Max Read Setting 2
Biod Max Write Setting 2

LG Type LG1
LG Model Dell Poweredge 750
Number and Type Processors1x2.8 GHz Intel Pentium 4 processor
Memory Size 1024 MB
Operating System Red Hat Linux 8.0
Compiler cc, used SFS97_R1 precompiled Binaries
Compiler Options N/A
Network Type Intel Pro 1000 Gigabit Ethernet

Testbed Configuration
LG #LG TypeNetworkTarget File SystemsNotes
1-14LG1N1/vol3, /vol4, /vol1, /vol2, /vol3, /vol4, /vol1, /vol2, /vol3, /vol4, /vol1, /vol2Each LG targets each file system three times.


Other Notes
