SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4200

SPECfp®2006 = 12.4

CPU2006 license: 6 Test date: Apr-2006
Test sponsor: Sun Microsystems Hardware Availability: Oct-2005
Tested by: Sun Microsystems Software Availability: Jul-2006

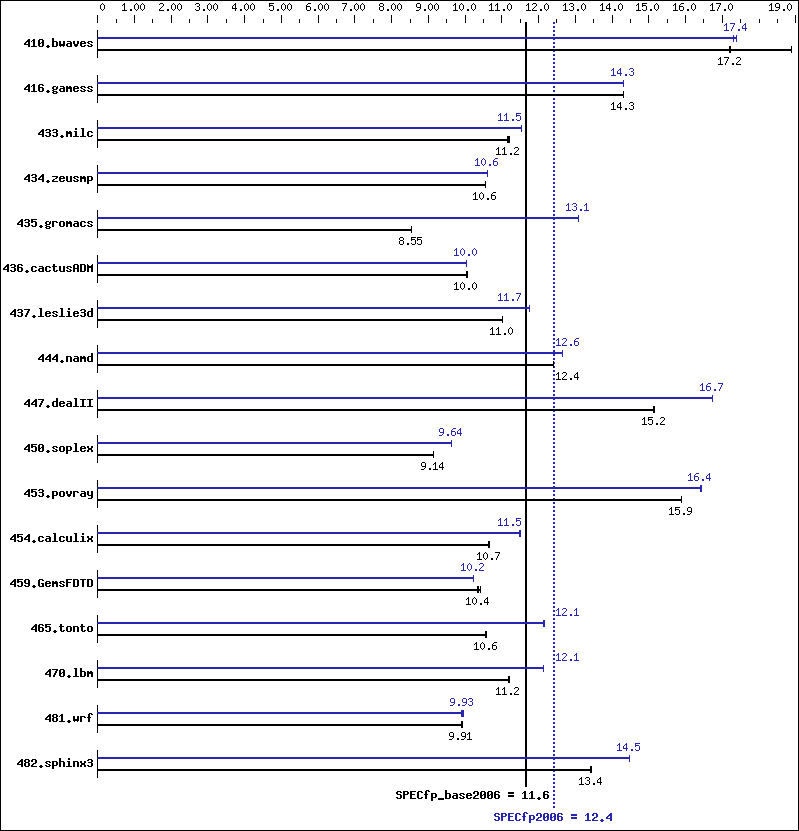

Benchmark results graph
Hardware
CPU Name: AMD Opteron 254
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 1 core/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 64 KB I + 64 KB D on chip per chip
Secondary Cache: 1 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB, PC3200 CL3 DDR ECC Reg)
Disk Subsystem: SAS,36GB,10K RPM
Other Hardware: None
Software
Operating System: Solaris 10 1/06
Compiler: Sun Studio 11 with patch 120759-06
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 719 18.9  789 17.2  791 17.2  785 17.3  782 17.4  782 17.4
416.gamess 1368 14.3  1368 14.3  1368 14.3  1368 14.3  1368 14.3  1368 14.3
433.milc 824 11.1  822 11.2  819 11.2  795 11.5  795 11.5  795 11.5
434.zeusmp 862 10.6  862 10.6  862 10.6  857 10.6  857 10.6  857 10.6
435.gromacs 835 8.55 836 8.55 835 8.55 545 13.1  545 13.1  545 13.1
436.cactusADM 1189 10.1  1192 10.0  1191 10.0  1191 10.0  1191 10.0  1191 10.0
437.leslie3d 854 11.0  852 11.0  852 11.0  800 11.7  800 11.8  800 11.7
444.namd 646 12.4  646 12.4  646 12.4  634 12.6  634 12.6  634 12.6
447.dealII 755 15.2  755 15.2  756 15.1  683 16.7  684 16.7  683 16.7
450.soplex 913 9.14 912 9.14 912 9.14 866 9.63 865 9.64 865 9.64
453.povray 335 15.9  335 15.9  335 15.9  324 16.4  324 16.4  324 16.4
454.calculix 774 10.7  774 10.7  775 10.6  717 11.5  718 11.5  718 11.5
459.GemsFDTD 1018 10.4  1024 10.4  1025 10.3  1038 10.2  1038 10.2  1038 10.2
465.tonto 931 10.6  931 10.6  931 10.6  812 12.1  812 12.1  809 12.2
470.lbm 1227 11.2  1228 11.2  1228 11.2  1132 12.1  1132 12.1  1132 12.1
481.wrf 1124 9.93 1127 9.91 1127 9.91 1123 9.95 1125 9.93 1127 9.91
482.sphinx3 1449 13.5  1452 13.4  1451 13.4  1346 14.5  1345 14.5  1345 14.5

Operating System Notes


 ulimit -s 131072  (shell): increases stack


 /etc/system parameters
    tune_t_fsflushr=1
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=900
       Causes pages older than the listed number of seconds to
       be written by fsflush.

Platform Notes


 Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xarch=amd64a

C++ benchmarks:

 -fast   -xipo=2   -xarch=amd64a   -library=stlport4

Fortran benchmarks:

 -fast   -xipo=2   -xarch=amd64a

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xarch=amd64a   -xipo=2   -xprefetch=auto   -xprefetch_level=3   -xpagesize=2m
470.lbm:  -fast   -xarch=amd64a   -xpagesize=2m   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -xprefetch_level=3
482.sphinx3:  -fast   -xarch=amd64a   -xrestrict   -xipo=2   -xprefetch=auto   -xpagesize=2m   -Wd,-iropt-prof   -W2,-Ashort_ldst:ldld   -W2,-Ainline:rs=50   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -library=stlport4
447.dealII:  -fast   -xarch=amd64a   -xipo=2   -xvector   -Qoption iropt -Abcopy   -xalias_level   -xrestrict   -xregs=frameptr   -library=stlport4
450.soplex:  -fast   -xipo=2   -xarch=sse2a   -library=stlport4
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -fast   -xarch=amd64a   -unroll=5   -stackvar   -xO4   -xipo=2   -xprefetch_level=3   -Qoption iropt -Rloop_dist
416.gamess:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3
434.zeusmp:  -fast   -xarch=amd64a   -xipo=2   -xregs=frameptr
437.leslie3d:  -fast   -xipo=2   -xarch=sse2a
459.GemsFDTD:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3   -xpagesize=2m
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -xvector=lib   -xalias   -xdepend   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a   -Wu,-fsimple=3   -Qoption ube -fsimple=3
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a
454.calculix:  -fast(cc)   -fast(f90)   -xarch=amd64a   -xpagesize=2m   -xprefetch=auto   -xprefetch_level=3   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -unroll=5   -stackvar   -xO4   -xipo=2   -Qoption iropt -Rloop_dist
481.wrf:  Same as 436.cactusADM

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio-Opteron.20090715.02.xml.
