SPEC® CINT2006 Result

Hewlett-Packard Company

HP Integrity Superdome
(1.6GHz/18MB Dual-Core Intel Itanium 2)

SPECint®_rate2006 = 797

SPECint_rate_base2006 = 744

CPU2006 license:	03	Test date:	Oct-2006
Test sponsor:	Hewlett-Packard Company	Hardware Availability:	Sep-2006
Tested by:	Hewlett-Packard Company	Software Availability:	Sep-2006

Hardware
CPU Name:	Dual-Core Intel Itanium 2 9040
CPU Characteristics:	1.6GHz/18MB, 533MHz FSB
CPU MHz:	1600
FPU:	Integrated
CPU(s) enabled:	64 cores, 32 chips, 2 cores/chip
CPU(s) orderable:	1-64 chips
Primary Cache:	16 KB I + 16 KB D on chip per core
Secondary Cache:	1 MB I + 256 KB D on chip per core
L3 Cache:	9 MB I+D on chip per core
Other Cache:	None
Memory:	256 GB (256x1GB DIMMs)
Disk Subsystem:	3x73GB 15K RPM SCSI (striped)
Other Hardware:	None

Software
Operating System:	HPUX11i-TCOE B.11.23.0609
Compiler:	HP C/aC++ Developer's Bundle C.11.23.12
Auto Parallel:	No
File System:	vxfs
System State:	Multi-user
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	MicroQuill Smartheap 8.0

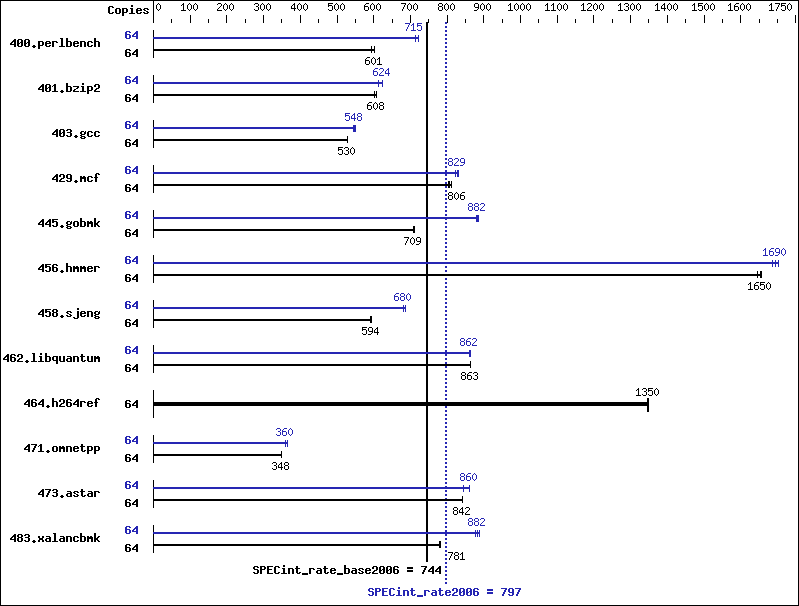

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	64	1041	601	1051	595	1040	601	64	867	721	877	713	875	715
401.bzip2	64	1024	603	1016	608	1015	609	64	990	624	1006	614	990	624
403.gcc	64	973	530	973	530	975	528	64	938	549	940	548	944	546
429.mcf	64	720	811	724	806	725	805	64	702	832	710	823	704	829
445.gobmk	64	946	709	945	711	947	709	64	762	881	759	885	761	882
456.hmmer	64	360	1660	363	1650	361	1650	64	352	1690	354	1690	350	1700
458.sjeng	64	1302	595	1309	592	1304	594	64	1139	680	1139	680	1128	686
462.libquantum	64	1536	863	1537	863	1535	864	64	1535	864	1540	861	1538	862
464.h264ref	64	1051	1350	1050	1350	1050	1350	64	1051	1350	1050	1350	1050	1350
471.omnetpp	64	1149	348	1148	348	1148	348	64	1098	364	1111	360	1113	359
473.astar	64	533	842	534	841	534	842	64	522	861	532	845	523	860
483.xalancbmk	64	566	780	564	783	565	781	64	501	882	503	878	497	888

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Platform Notes

  The system was configured as a single partition with 8 cells and
  4 processors (8 cores) per cell.  Memory was configured as 50% local
  and 50% interleaved.

  The following config file entry was used to bind
  processes to cells using the HP-UX "mpsched" utility:
  submit = let "MYNUM=$SPECCOPYNUM" ; let "LDOM=\$MYNUM/8" ; mpsched -l \$LDOM $command

Base Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:	-DSPEC_CPU_HPUX_IA64
403.gcc:	-DSPEC_CPU_HPUX
462.libquantum:	-DSPEC_CPU_HPUX
483.xalancbmk:	-DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N

C++ benchmarks:

+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

Peak Compiler Invocation

C benchmarks:

/opt/ansic/bin/cc -Ae

C++ benchmarks:

/opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_HPUX_IA64
403.gcc:	-DSPEC_CPU_HPUX
462.libquantum:	-DSPEC_CPU_HPUX
483.xalancbmk:	-DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M -Wl,-N
401.bzip2:	Same as 400.perlbench
403.gcc:	Same as 400.perlbench
429.mcf:	Same as 400.perlbench
445.gobmk:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Odataprefetch=direct
456.hmmer:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M
458.sjeng:	Same as 445.gobmk
462.libquantum:	Same as 456.hmmer
464.h264ref:	basepeak = yes

C++ benchmarks:

471.omnetpp:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
473.astar:	+Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
483.xalancbmk:	+Oprofile=collect:all(pass 1) +Oprofile=use(pass 2) +Ofaster +Otype_safety=ansi -Wl,-a,archive_shared -Wl,+pd,64M -Wl,+pi,64M +Onoparmsoverlap /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.08.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.08.xml.
