CPU2006 license: | 6 | Test date: | Nov-2006 |
---|---|---|---|
Test sponsor: | Sun Microsystems | Hardware Availability: | Nov-2006 |
Tested by: | Sun Microsystems | Software Availability: | Jul-2006 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 2220 SE |
CPU Characteristics: | |
CPU MHz: | 2800 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8x2GB, DDR2-667 CL5 ECC REG, Dual Rank) |
Disk Subsystem: | SATA, 160 GB, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Solaris 10 6/06 |
Compiler: | Sun Studio 11 with Patches |
Auto Parallel: | No |
File System: | ufs |
System State: | Default |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

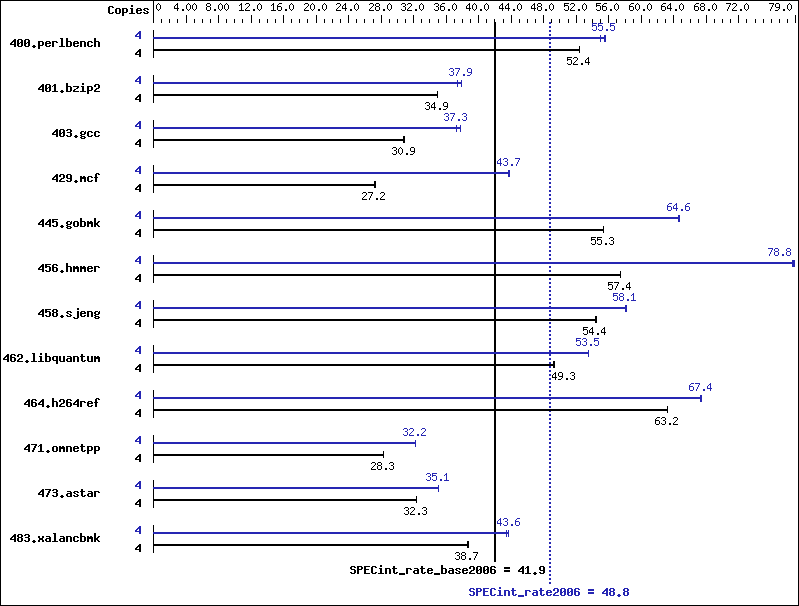

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 4 | 746 | 52.4 | 746 | 52.4 | 746 | 52.4 | 4 | 703 | 55.6 | 711 | 54.9 | 704 | 55.5 |
401.bzip2 | 4 | 1104 | 35.0 | 1106 | 34.9 | 1106 | 34.9 | 4 | 1032 | 37.4 | 1019 | 37.9 | 1018 | 37.9 |
403.gcc | 4 | 1041 | 30.9 | 1048 | 30.7 | 1043 | 30.9 | 4 | 854 | 37.7 | 863 | 37.3 | 864 | 37.3 |
429.mcf | 4 | 1340 | 27.2 | 1337 | 27.3 | 1344 | 27.2 | 4 | 832 | 43.8 | 835 | 43.7 | 834 | 43.7 |
445.gobmk | 4 | 758 | 55.3 | 758 | 55.3 | 758 | 55.4 | 4 | 649 | 64.6 | 649 | 64.7 | 649 | 64.6 |
456.hmmer | 4 | 649 | 57.5 | 650 | 57.4 | 650 | 57.4 | 4 | 474 | 78.8 | 475 | 78.6 | 473 | 78.8 |
458.sjeng | 4 | 889 | 54.4 | 890 | 54.4 | 888 | 54.5 | 4 | 832 | 58.2 | 833 | 58.1 | 833 | 58.1 |
462.libquantum | 4 | 1680 | 49.3 | 1681 | 49.3 | 1685 | 49.2 | 4 | 1550 | 53.5 | 1550 | 53.5 | 1549 | 53.5 |
464.h264ref | 4 | 1401 | 63.2 | 1400 | 63.2 | 1400 | 63.2 | 4 | 1316 | 67.3 | 1313 | 67.4 | 1312 | 67.4 |
471.omnetpp | 4 | 884 | 28.3 | 883 | 28.3 | 885 | 28.2 | 4 | 775 | 32.3 | 776 | 32.2 | 776 | 32.2 |
473.astar | 4 | 868 | 32.3 | 869 | 32.3 | 869 | 32.3 | 4 | 801 | 35.1 | 800 | 35.1 | 801 | 35.1 |
483.xalancbmk | 4 | 714 | 38.7 | 713 | 38.7 | 714 | 38.7 | 4 | 635 | 43.5 | 632 | 43.6 | 632 | 43.7 |
Processes were bound to cores using "submit" and "pbind". ulimit -s 131072 (shell): increases stack The following patches were applied to Sun Studio 11 compiler: 120759-07 : x86/x64 121016-03 : x86 C 121020-03 : x86 F90 121018-03 : x86 C++
Default BIOS settings was used.
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
464.h264ref: | -DSPEC_CPU_LP64 |
471.omnetpp: | -DSPEC_CPU_LP64 |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS |
-fast -xipo=2 -xarch=amd64a |
-fast -xipo=2 -xarch=amd64a -library=stlport4 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_SOLARIS_X64 |
403.gcc: | -DSPEC_CPU_SOLARIS |
462.libquantum: | -DSPEC_CPU_SOLARIS |
483.xalancbmk: | -DSPEC_CPU_SOLARIS |
471.omnetpp: | -fast -xipo=2 -xprefetch_level=3 -xpagesize=2m -xarch=sse2a -Qoption ube -fsimple=3 -library=stlport4 |
473.astar: | -fast -xrestrict -xarch=amd64a -xipo=2 -xprefetch_level=3 -xpagesize=2m -library=stlport4 |
483.xalancbmk: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xipo=2 -xarch=sse2a -xpagesize=2m -library=stlport4 |
