| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Dec-2006 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5150 |
| CPU Characteristics: | 2.66 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

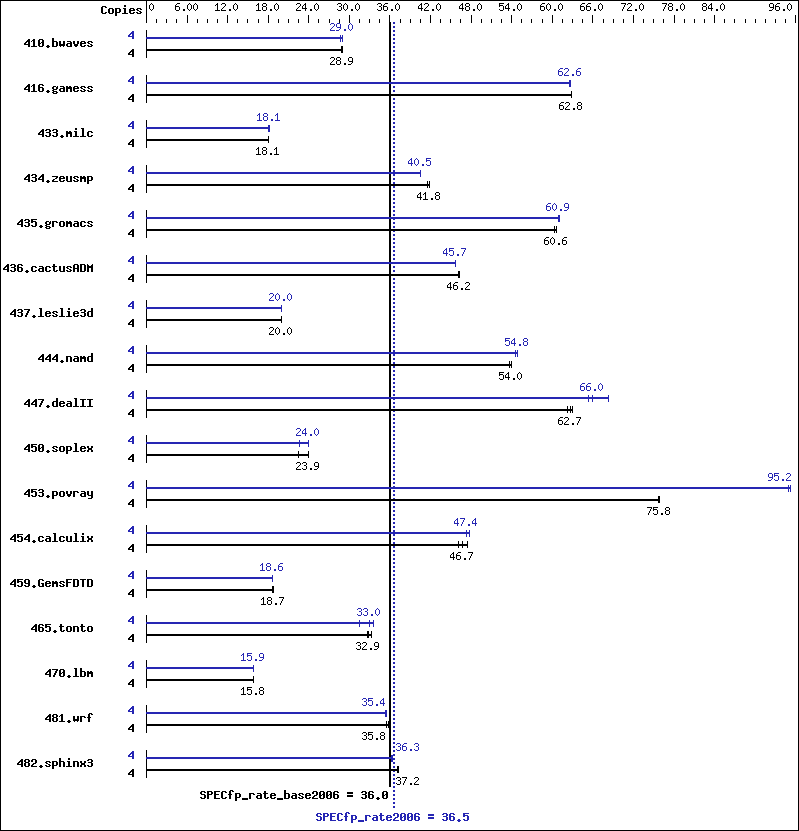

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1883 | 28.9 | 1878 | 28.9 | 1878 | 28.9 | 4 | 1875 | 29.0 | 1874 | 29.0 | 1895 | 28.7 |
| 416.gamess | 4 | 1247 | 62.8 | 1247 | 62.8 | 1247 | 62.8 | 4 | 1251 | 62.6 | 1250 | 62.6 | 1250 | 62.6 |
| 433.milc | 4 | 2027 | 18.1 | 2034 | 18.1 | 2030 | 18.1 | 4 | 2022 | 18.2 | 2031 | 18.1 | 2025 | 18.1 |
| 434.zeusmp | 4 | 875 | 41.6 | 869 | 41.9 | 870 | 41.8 | 4 | 898 | 40.5 | 899 | 40.5 | 899 | 40.5 |
| 435.gromacs | 4 | 473 | 60.4 | 471 | 60.7 | 471 | 60.6 | 4 | 469 | 60.9 | 467 | 61.1 | 469 | 60.9 |
| 436.cactusADM | 4 | 1035 | 46.2 | 1034 | 46.2 | 1034 | 46.2 | 4 | 1045 | 45.7 | 1045 | 45.7 | 1045 | 45.7 |
| 437.leslie3d | 4 | 1882 | 20.0 | 1883 | 20.0 | 1883 | 20.0 | 4 | 1883 | 20.0 | 1883 | 20.0 | 1882 | 20.0 |
| 444.namd | 4 | 597 | 53.7 | 594 | 54.0 | 594 | 54.0 | 4 | 588 | 54.6 | 585 | 54.8 | 585 | 54.8 |
| 447.dealII | 4 | 736 | 62.2 | 726 | 63.0 | 729 | 62.7 | 4 | 694 | 66.0 | 670 | 68.3 | 700 | 65.4 |
| 450.soplex | 4 | 1482 | 22.5 | 1395 | 23.9 | 1396 | 23.9 | 4 | 1477 | 22.6 | 1389 | 24.0 | 1391 | 24.0 |
| 453.povray | 4 | 281 | 75.6 | 281 | 75.8 | 281 | 75.8 | 4 | 224 | 95.0 | 223 | 95.2 | 223 | 95.2 |
| 454.calculix | 4 | 707 | 46.7 | 696 | 47.4 | 715 | 46.1 | 4 | 697 | 47.3 | 697 | 47.4 | 691 | 47.8 |
| 459.GemsFDTD | 4 | 2270 | 18.7 | 2265 | 18.7 | 2265 | 18.7 | 4 | 2276 | 18.6 | 2279 | 18.6 | 2277 | 18.6 |
| 465.tonto | 4 | 1185 | 33.2 | 1204 | 32.7 | 1198 | 32.9 | 4 | 1250 | 31.5 | 1174 | 33.5 | 1192 | 33.0 |
| 470.lbm | 4 | 3488 | 15.8 | 3488 | 15.8 | 3486 | 15.8 | 4 | 3467 | 15.9 | 3468 | 15.8 | 3466 | 15.9 |
| 481.wrf | 4 | 1257 | 35.5 | 1244 | 35.9 | 1246 | 35.8 | 4 | 1265 | 35.3 | 1261 | 35.4 | 1261 | 35.4 |
| 482.sphinx3 | 4 | 2104 | 37.1 | 2092 | 37.3 | 2096 | 37.2 | 4 | 2152 | 36.2 | 2144 | 36.4 | 2145 | 36.3 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
