| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Dec-2006 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5150 |
| CPU Characteristics: | 2.66 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

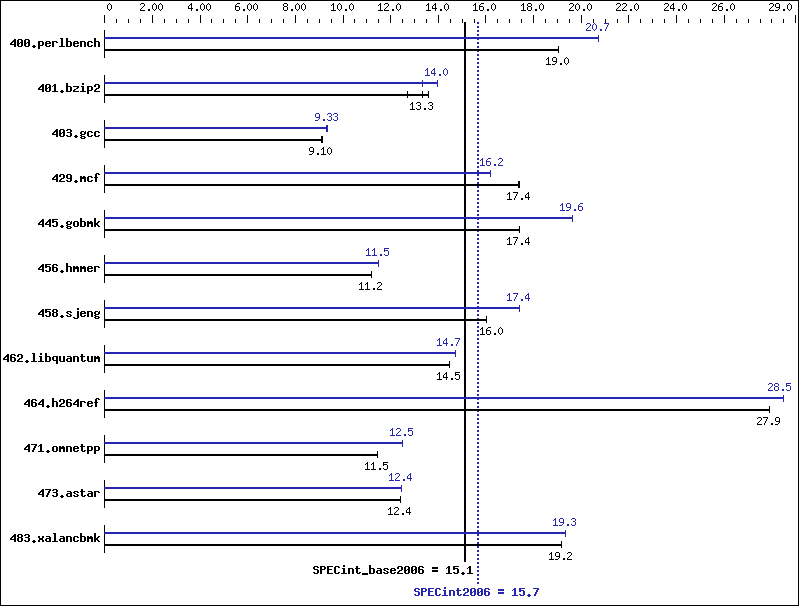

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 513 | 19.0 | 513 | 19.0 | 513 | 19.0 | 472 | 20.7 | 471 | 20.7 | 471 | 20.7 |
| 401.bzip2 | 724 | 13.3 | 759 | 12.7 | 710 | 13.6 | 691 | 14.0 | 724 | 13.3 | 691 | 14.0 |
| 403.gcc | 882 | 9.13 | 885 | 9.10 | 886 | 9.09 | 862 | 9.34 | 864 | 9.31 | 863 | 9.33 |
| 429.mcf | 524 | 17.4 | 525 | 17.4 | 525 | 17.4 | 563 | 16.2 | 563 | 16.2 | 563 | 16.2 |
| 445.gobmk | 603 | 17.4 | 603 | 17.4 | 603 | 17.4 | 534 | 19.6 | 534 | 19.6 | 535 | 19.6 |
| 456.hmmer | 834 | 11.2 | 834 | 11.2 | 834 | 11.2 | 812 | 11.5 | 812 | 11.5 | 812 | 11.5 |
| 458.sjeng | 755 | 16.0 | 755 | 16.0 | 755 | 16.0 | 695 | 17.4 | 695 | 17.4 | 695 | 17.4 |
| 462.libquantum | 1431 | 14.5 | 1431 | 14.5 | 1431 | 14.5 | 1408 | 14.7 | 1408 | 14.7 | 1408 | 14.7 |
| 464.h264ref | 793 | 27.9 | 793 | 27.9 | 793 | 27.9 | 777 | 28.5 | 777 | 28.5 | 777 | 28.5 |
| 471.omnetpp | 546 | 11.4 | 546 | 11.5 | 546 | 11.5 | 501 | 12.5 | 501 | 12.5 | 501 | 12.5 |
| 473.astar | 565 | 12.4 | 565 | 12.4 | 565 | 12.4 | 564 | 12.4 | 564 | 12.4 | 564 | 12.4 |
| 483.xalancbmk | 360 | 19.2 | 360 | 19.2 | 360 | 19.2 | 357 | 19.3 | 357 | 19.3 | 357 | 19.3 |
General Notes
Other Configuration Notes /NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
