SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3550 (Intel Xeon E5335)

SPECfp®_rate2006 = Not Run

CPU2006 license: 11 Test date: Jan-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Aug-2006

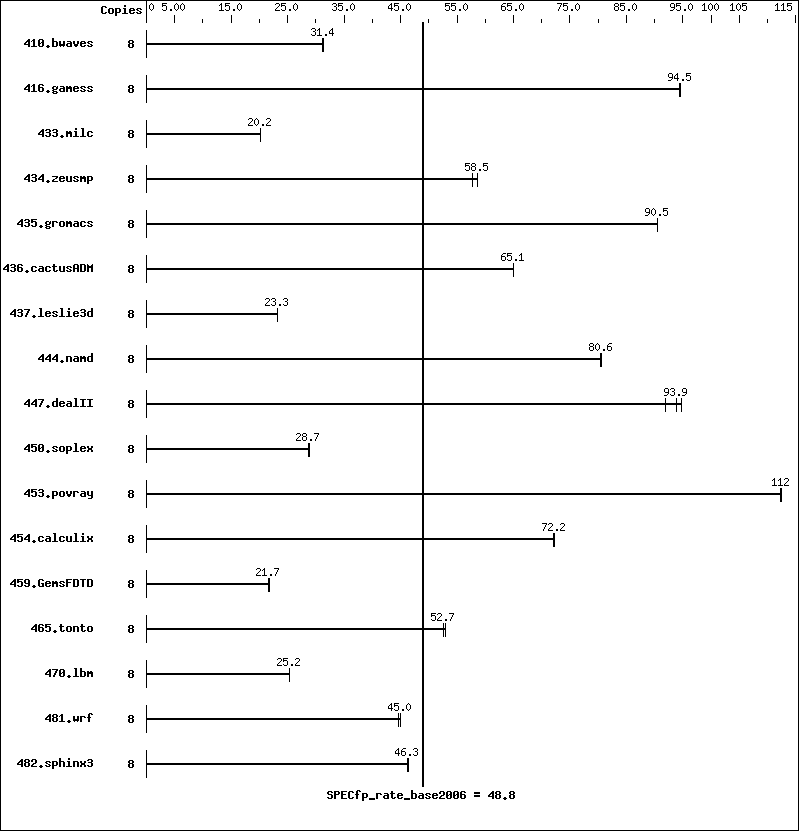

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5335
CPU Characteristics: 1066MHz system bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (8 x 1GB DDR2-5300F ECC)
Disk Subsystem: 1 x 73 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows Server 2003 Enterprise x64
Edition + SP1 (64-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Intel Fortran Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Smart Heap Library, Version 8

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3489 31.2 3464 31.4 3464 31.4
416.gamess 8 1659 94.4 1657 94.5 1657 94.5
433.milc 8 3631 20.2 3632 20.2 3633 20.2
434.zeusmp 8 1261 57.7 1243 58.5 1242 58.6
435.gromacs 8 631 90.5 631 90.5 632 90.4
436.cactusADM 8 1469 65.1 1469 65.1 1469 65.1
437.leslie3d 8 3233 23.3 3234 23.3 3234 23.3
444.namd 8 796 80.6 796 80.6 798 80.4
447.dealII 8 966 94.8 995 91.9 974 93.9
450.soplex 8 2325 28.7 2315 28.8 2324 28.7
453.povray 8 379 112   379 112   379 112
454.calculix 8 913 72.3 915 72.2 914 72.2
459.GemsFDTD 8 3920 21.7 3885 21.8 3914 21.7
465.tonto 8 1495 52.7 1486 53.0 1498 52.5
470.lbm 8 4353 25.3 4354 25.2 4354 25.2
481.wrf 8 1986 45.0 1984 45.0 2006 44.6
482.sphinx3 8 3366 46.3 3368 46.3 3371 46.3

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.xml.
